China HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal for sale
China HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal for sale
China HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal for sale
China HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal for sale

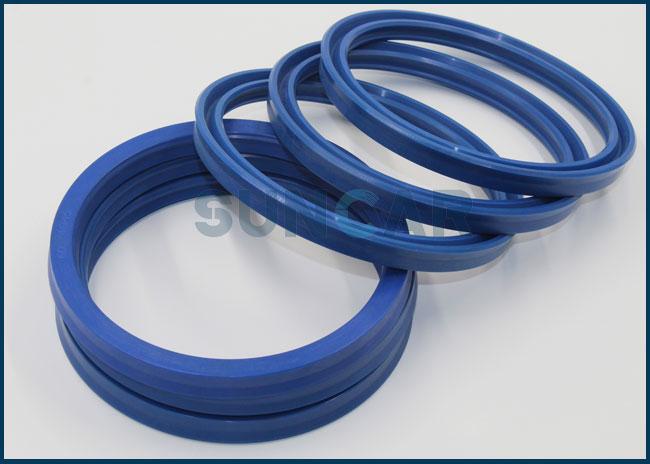

HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal

Price Negotiable
Price: Negotiable
MOQ: 100 sets
Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)
Brand: SUNCAR
Product Description

HALLITE H605 U-Seal Hydraulic Cylinder Piston Rod Seal

Size:



6*15*7.3 22.4*30*5 30.15*39.67*6.35 35.5*45*6
6*16*7 22.4*30*8 31.75*38.1*4.75 35.5*50.5*10
8*18*7 24*30*4.5 31.75*38.1*6.35 36*44*6.4
9.53*15*88*5.03 25*33*5 31.75*41.28*4.75 36*44*8.2
9.53*19.05*7.92 25*33*5.7 31.75*41.28*5.77 36*46*5.7
10*15*3.6 25*33*6.8 31.75*41.28*6.35 36*46*7.3
12*18*4 25*33*8 31.75*41.28*7.92 36*46*10
12*18*5.7 25*33*10 31.75*44.45*6.35 36*51*10
12*19*4.5 25*35*7.3 31.75*44.45*9.53 36.5*46.02*7.92
12*19*5.1 25*35*7.7 31.75*47.63*10.08 37*47*10
12*20*5.7 25*35*10 32*40*6 38*48*8
12*22*7.3 25*37*10 32*40*6.7 38*48*10
12*22*7.7 25*40*10 32*40*7.7 38*50*10
12.7*18*5.5 25.4*31.5*4.88 32*41.5*7.9 38*53*10
12.7*19.05*4.75 25.4*31.75*4.75 32*42*5.7 38.1*44.45*6.35
13*20*4.5 25.4*31.75*6.35 32*42*6 38.1*47.63*4.75
14*21*5.1 25.4*33.32*5.56 32*42*7.3 38.1*47.63*6.35
14*22*5.7 25.4*34.93*4.75 32*42*10 38.1*47.63*7.92
14*24*7.3 25.4*34.93*6.35 32*45*10 38.1*47.63*9.53
14.27*20.65*4.75 25.4*34.93*7.92 32*47*9.1 38.1*50.8*6.35
15*22*5.7 25.4*38.1*6.48 35*45*7.7 38.1*50.8*8.66
15.37*25.5*6.35 25.4*38.1*8.66 35*45*10 38.1*50.8*9.53
15.88*22.23*4.75 25.4*38.1*9.53 35*50*9 38.1*53.98*9.53
15.88*22.23*6.12 26*36*7 35*50*10 38.1*53.98*10.08
15.88*25.4*7.14 26.97*33.07*4.75 45*57.7*9.5 40*48*5.7
16*22*4.5 26.97*33.32*6.35 45*60*10 40*48*8.2
16*22*5 28*35.5*5 45*60*11.4 40*49.52*9.5
16*24*5.8 28*36*5.7 45*65*10 40*50*6
16*26*7.7 28*38*7.3 47*56.33*9 40*50*7.3
17.45*23.8*4.75 28*43*11.4 47.63*57.15*7.92 40*50*9
18*24*4.5 28.58*34.67*4.88 47.63*57.15*9.53 40*50*10
18*25*5 28.58*34.93*4.75 47.63*60.33*9.53 40*52*10.9
18*26*5 28.58*34.93*6.35 47.63*63.5*10.08 40*55*7.3
18*26*5.7 28.58*35.53*4.88 48*60*10 40*55*9
18*26*6 28.58*38.1*7.92 50*57*9 40*55*10
18*26*8.2 28.58*39.67*8.26 50*60*6 40*55*11.4
18*28*7.7 28.58*41.28*6.35 50*60*7.3 41.28*47.63*6.35
19.05*25.4*3.18 28.58*44.45*10.08 50*60*8.2 41.28*50.8*7.14
19.05*25.4*4.75 30*38*5.7 50*60*10 41.28*50.8*7.92
19.05*25.4*6.35 30*38*6.3 50*60*11.8 41.28*50.8*9.53
19.05*28.58*7.92 30*40*6 50*62.7*9.5 41.28*53.98*9.53
20*25*3.2 30*40*7 50*63*10 42*50*5.7
20*26*5 30*40*7.3 50*65*9 42*50*7.5
20*26*6.5 30*40*8.5 50*65*9.5 42*52*6
20*27*6.1 30*40*10 50*65*10 42*52*10
20*28*5 30*42*10.9 50*65*10.9 43*53*6
20*28*5.7 30*45*9 50*65*14.5 44.45*50.8*6.35
20*30*6 30*45*10 50*70*12 44.45*53.98*6.35
20*30*7.3 30*50*10 50.8*57.15*6.35 44.45*53.98*7.92
20*30*7.7 32*47*10 50.8*60.33*6.35 44.45*53.98*9.53
20*30*10 32*48*10 50.8*60.33*7.92 44.45*57.15*6.35
20.62*26.97*4.75 34.93*41.28*4.75 50.8*60.33*9.53 44.45*57.15*8.66
20.62*26.97*6.35 34.93*41.28*6.35 50.8*63.5*6.35 44.45*57.15*9.53
22*30*5 34.93*42.85*5.56 50.8*63.5*7.92 44.45*57.15*12.7
22*30*5.7 34.93*44.45*4.75 50.8*63.5*8.66 44.45*60.33*11.1
22*30*7.3 34.93*44.45*7.92 50.8*63.5*9.53 45*53*7.3
22*32*7.3 34.93*47.63*9.53 50.8*63.5*19.84 45*53*8.1
22*32*8.2 34.93*50.8*10.08 50.8*66.68*7.92 45*53*11.8
22*32*10 35*43*5.7 50.8*66.68*10.08 45*55*5.6
22.23*28.58*4.75 35*43*6.3 50.8*66.68*12.7 45*55*6
22.23*28.58*6.35 35*43*8.2 50.8*69.85*15.88 45*55*7.3
22.23*31.75*8.23 35*45*6 53*63*6 45*55*8
22.23*34.93*8.66 35*45*7 53*65*9 45*55*10





Some OEM For Your Reference:



4790600 4311400 4493900 4778000 4612500
4580600 4310500 4552800 4834600 4312000
4580500 4379900 4346100 4476200 4312100
4544300 4322900 4403100 4391200 4306500
4710500 4371800 4330400 4331500 4857800
4402300 4442600 4703200 4432600 4443600
4578000 4345200 4402800 4538600 4458500
7314900 4493800 430900 4611800 4535900
7341600 4801700 4611500 4306000 4335900
4710000 4456800 4619200 4845800 4346600
4310900 4345900 4314300 4304500 4347400
4857200 4430200 4305700 4314400 4615900
4315000 4330100 4611600 4334400 4314500
4370400 4308400 4322500 4804400 4306600
4576100 4459400 4616700 4611900 4703700
4351600 4410300 4616900 4344000 4334500
4710100 4394500 4373900 4617000 4616200
4311000 4611400 4395000 4291700 4612600
4310000 4703000 4372100 4381900 1312200
4576200 4305500 4304900 4612000 4612700
4762200 4399000 4305000 4345800 4443700
4333800 4384500 4771600 4458700 4514900
4493700 4442700 4442800 4346400 4376900
4329000 4388000 4862900 4380100 4612800
4447200 4371900 4619100 4496900 4855200
4341700 4392600 4515500 4382900 4746400
4314100 4568800 4586300 4330900 4379100
4295200 4370900 4480900 4337100 4336000
4311100 4373000 4345500 4491400 4456900
4572000 4704500 4576600 4333100 4346700
4712000 4402700 4322100 4331000 4467400
4314200 4610200 4346200 4346500 4347500
4611000 4703100 4385400 4347300 4863500
4311200 4857400 4394400 4617700 4615800
4333900 4826100 4330500 4371700 4857900
4863000 4304600 4322200 4443300 4312300
4305100 4383100 4442900 4863400 4494700
4552900 4618900 4330600 4615600 4323600
4571000 4857500 4703300 4703500 4616400
4345100 4328500 4396800 4360400 4612900
4512200 4458600 4334200 4306100 4302900
4332100 4359600 4610300 4323400 4301200
4315100 4345300 4311600 4593800 4401400
4826000 4552600 4866800 4612100 4613000
4702900 4330200 4293800 4319200 4443800
4611100 4460600 4381800 4625000 4760200
4362100 4346000 4703400 4612200 4706300
4611200 4513500 4611700 4311800 4616800
4857300 4335800 4328300 4311900 4858000
4305200 4330300 4857600 4306200 4312400
4310300 4310700 4345600 4372200 4616300
4576300 4334000 4542800 4331100 4613100
4558700 4315300 4443000 4337200 4862800
4617500 4334100 4443100 4750200 4858100
4305300 4360100 4512100 4331200 4613200
4356800 4616100 4744400 4538000 4468300
4310800 4374200 4373800 4610500 4539900
4863300 4305600 4618100 4703600 4336100
4311300 4597700 4338200 4310600 4399600
4576400 4329600 4619700 4306300 4476900
4442500 4338900 4345700 4615700 4346800
4794500 4492500 4357200 4323500 4347600
4373100 4392200 4346300 4593900 4863100
4611300 4345400 4366800 4612300 4538700
4616600 4479700 4552700 4378700 4863600
4773500 4610400 4330700 4857700 4399700
4610100 4305900 4337000 4306400 4766600
4305400 4845700 4376800 4391800 4616000
4333500 4302600 4443200 4625100 4390400
4807800 4322800 4619800 4514300 4312500
4315200 4315400 4402900 4612400 4494800
4512000 4619900 4315600 4443400 4615200
455300 4315500 4331300 4443500 4613300
4760300 4537900 4839100 4342900 4383500
4377000 4863700 4392700 4714100 4620000
4468400 4610600 4613500 4476800 4306700
4540000 4615300 4346900 4336200 4613400
4336300 4306800 4347700 4415400 4382800





Technical Details:

Operating conditions Metric Inch
Maximum Speed 1.0 m/sec 3.0 ft/sec
Temperature Range -45°C +110°C -50°F +230°F
Maximum Pressure 400 bar* 6000 p.s.i.*
Maximum extrusion gap Figures show the maximum permissible gap all on one side using minimum rod Ø and maximum clearance Ø.
Pressure bar 160 250 400
Maximum Gap mm 0.6 0.5 0.4
Pressure p.s.i. 2400 3750 6000
Maximum Gap in 0.024 0.02 0.016

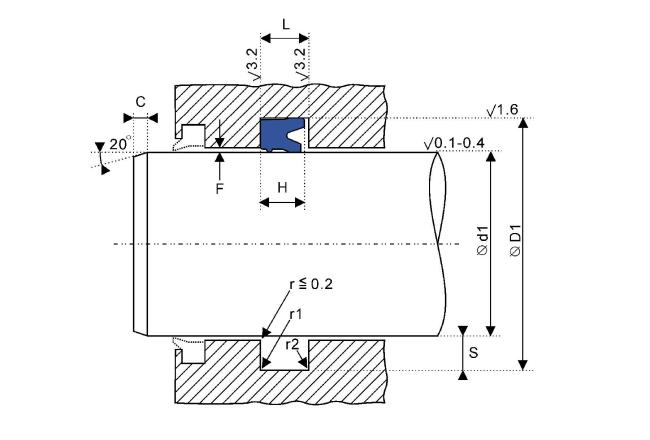

Surface roughness μmRa μmRt μinCLA μinRMS
Dynamic Sealing Face Ød1 0.1 < > 0.4 4 max 4 < > 16 5 < > 18
Static Sealing Face ØD1 1.6 max 10 max 63 max 70 max
Static Housing Faces L1 3.2 max 16 max 125 max 140 max

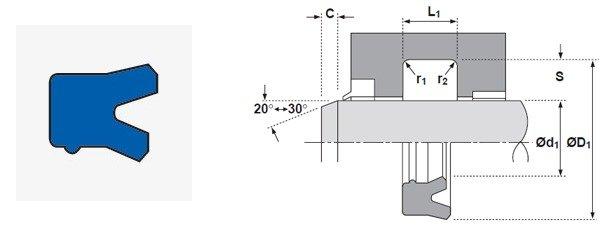

Chamfers & Radii
Groove Section ≤ S mm 4 5 7.5 10 12.5 15
Min Chamfer C mm 3 3.5 5 6.5 7 8
Max Fillet Rad r1 mm 0.2 0.4 0.8 0.8 1.2 1.6
Max Fillet Rad r2 mm 0.4 0.8 1.2 1.2 1.6 2.4
Groove Section ≤ S in 0.125 0.187 0.25 0.312 0.375 0.5
Min Chamfer C in 0.093 0.093 0.125 0.156 0.187 0.217
Max Fillet Rad r1 in 0.008 0.008 0.016 0.032 0.032 0.032
Max Fillet Rad r2 in 0.016 0.016 0.032 0.047 0.047 0.047
Tolerances Ød1 ØD1 L1 mm L1 in
  f9 Js11 0.25 0.01

Features:

• Twin lip design offering: lower friction, improved sealing, primary lip protection, increased seal stability.

• Easy installation
