4364913 Arm Hydraulic Cylinder Seal Repair Kit HITACHI EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
4364913 Arm hydraulic cylinder seal Repair Kit Fits HITACHI EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z
Description:
This seal kit is a kind of Hitachi,Which conform to national production standards, using high-quality raw materials production.
Apply for boom cylinder ,arm cylinder.Compatible for HITACHI EX120-2 EX120-5.Main function is sealing oil.
| Product name | 4364913 Arm hydraulic cylinder seal Repair Kit fits HITACHI EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z |
| Brand name | SUNCAR |
| OEM number | 4364913 |
| Compatible Model | HITACHI EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z EX120SS-5 EX130H-5 EX130K-5 EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 MA145-5 ZX120-3 |
| MOQ | 100sets |
| Supply alility | 550 sets per month |
| Condition | 100 % new |
| Payment | L/C, Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Save notifiC-A-Tion | Close, dry, avoid the sun |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail store |
| Make up | Back up ring,Bushing,O-Ring,Bolt,Piston rod,Ball,U-Ring packin etc |
| Availability | In rich stock. |
| Style | Hydraulic, Mechanical seal kit,Cylinder seal kit. Hitachi seal |
| Compatible brand | HITACHI |

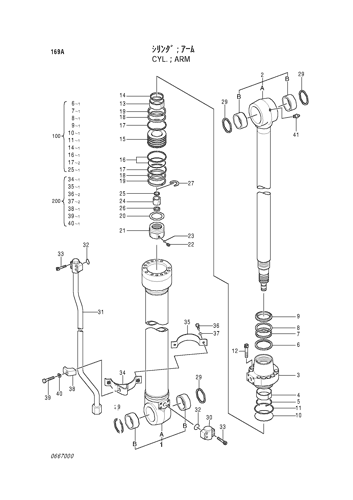

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 4317313 | [1] | CYL.;ARM | |
| 1 | 667001 | [1] | TUBE;CYL. AS'Y |
| 1A. | 667002 | [1] | TUBE;CYL. |
| 1B. | 4352400 | [2] | BUSHING;PIN |
| 2 | 667003 | [1] | ROD;PISTON AS'Y |
| 2A. | 667004 | [1] | ROD;PISTON |
| 2B. | 4352400 | [2] | BUSHING;PIN |
| 3 | 667005 | [1] | HEAD;CYL. |
| 4 | 309304 | [1] | BUSHING |
| 5 | 208604 | [1] | RING;RETAINING |
| 6 | 409004 | [1] | RING |
| 7 | 208605 | [1] | PACKING;U-RING |
| 8 | 208606 | [1] | RING;BACK-UP |
| 9 | 667006 | [1] | RING;WIPER |
| 10 | A811105 | [1] | O-RING |
| 11 | 298904 | [1] | RING;BACK-UP |
| 12 | 408805 | [12] | BOLT;SOCKET |
| 13 | 409005 | [1] | BRG.;CUSHION |
| 14 | 667007 | [1] | SEAL |
| 15 | 409007 | [1] | PISTON |
| 16 | 240915 | [1] | RING;SEAL AS'Y |
| 17 | 409008 | [2] | RING;BACK-UP |
| 18 | 667008 | [2] | RING;SLIDE |
| 19 | 298907 | [2] | RING;SLIDE |
| 20 | 409010 | [1] | SHIM |
| 21 | 667009 | [1] | NUT |
| 22 | 309011 | [1] | SCREW |
| 23 | 111707 | [1] | BALL;STEEL |
| 24 | 409012 | [1] | BRG.;CUSHION |
| 25 | 667010 | [1] | SEAL |
| 26 | 409014 | [2] | STOPPER |
| 27 | 409015 | [1] | RING |
| 29 | 408810 | [4] | RING;WIPER |
| 30 | 409016 | [1] | JOINT |
| 31 | 667011 | [1] | PIPE |
| 32 | 4506430 | [2] | O-RING |
| 33 | 309019 | [8] | BOLT;SOCKET |
| 34 | 667012 | [1] | BAND |
| 35 | 327410 | [1] | BAND |
| 36 | 408815 | [2] | BOLT |
| 37 | 325913 | [2] | WASHER |
| 38 | 309021 | [1] | HOLDER |
| 39 | 667013 | [1] | BOLT |
| 40 | 208516 | [1] | WASHER;SPRING |
| 41 | J75481 | [1] | FITTING;GREASE |
| 100 | 4364913 | [1] | KIT;SEAL |
| 200 | 667014 | [1] | KIT;BAND |
