VOE14564857 VOE 14564857 14564857 Main Control Valve Seal Kit For SUNCARSUNCARVOLVO EC460B
VOE14564857 VOE 14564857 14564857 Main Control Valve Seal Kit For SUNCARSUNCARSUNCARSUNCARVOLVO EC460B
Description: This is a genuine SUNCARSUNCARSUNCARSUNCARVOLVO spare part,main control valve sela kit.Cpmpatible for EC460B
SUNCAR is committed to provide the best products and services to all of you.
| Product name | VOE14564857 VOE 14564857 14564857 Main Control Valve Seal Kit For SUNCARSUNCARSUNCARSUNCARVOLVO EC460B |
| Brand | SUNCAR |
| Fit brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Part numbers | VOE14564857 VOE 14564857 14564857 Main Control Valve Seal Kit For SUNCARSUNCARSUNCARSUNCARVOLVO EC460B |
| Color | As per standard color |
| Compatible model |
EC460B
Main control valve, port valve
EC460C
Main control valve, valve spool
PL4608
Main control valve
PL4611
Main control valve SUNCARSUNCARSUNCARSUNCARVOLVO.Heavy
|
| Feature |
Durability,hard-wearing,higher-toughness,seal performance |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) FKM(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Gross weight of single product |
0.500 kg |
| Package | PP bag, carton, wooden box, or as required |
| AppliC-A-Tion | Construction works,resell;SUNCARSUNCARSUNCARSUNCARVOLVO |
| Section code | Working hydraulics / Main control valve, boom and bucket and travel |
| Section code | Working hydraulics |
| MOQ | 10 sets |
| Type | Hydraulic control valve seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Packaging | Nuetral packaging or OEM packaging |
| Shipping mode | By air, by sea, by express |
| By express | Post FedEx , UPS,DHL,TNT etc |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
| Loading port |
Huangpu port,China |
Our Main Products:
1. Hydraulic Cylinder Seal:
Dust Wiper Seal
Back up Ring
Rod Seal
Buter Seal
Piston Seal
Wear/Guide Seal
Center Joint Seal
Adjuster seal
Travel Motor Seal
Oil Seal
NBR seal
Rubber Seal
Connector
Pusher
Steel Seal
Floating Seal
O-Ring
O-Ring Box
2. Excavator Seal Kit
Boom Cylinder Seal Kit
Arm Cylinder Seal Kit
Bucket Cylinder Seal Kit
Center Joint Seal Kit
Chain Adjuster Seal Kit
Pllot Valve Seal Kit
Main Pump Seal Kit
Swing Motor Seal Kit
Control Valve Seal Kit

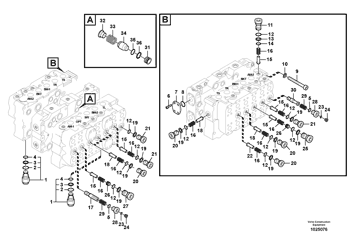

Parts On Group Main Control Valve:
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| VOE14556410 | [1] | Control valve | |
| 1. | VOE14597137 | [2] | Valve |
| 2. | VOE14597198 | [1] | O-ring |
| 3. | VOE14625240 | [1] | Ring |
| 4. | VOE14533610 | [1] | O-ring |
| 5. | VOE983532 | [2] | O-ring |
| 6. | VOE984087 | [4] | Hex. socket screw |
| 7. | VOE14513156 | [1] | Cover |
| 8. | VOE994122 | [1] | O-ring |
| 9. | VOE993159 | [7] | Hex. socket screw |
| 10. | VOE14601626 | [7] | Washer |
| 11. | VOE14513161 | [1] | Cap |
| 12. | VOE983529 | [12] | O-ring |
| 13. | VOE14880820 | [1] | Back-up ring |
| 14. | VOE990606 | [1] | O-ring |
| 15. | VOE14596240 | [5] | Valve |
| 16. | VOE14596241 | [11] | Spring |
| 17. | VOE14513199 | [1] | Spool |
| 18. | VOE14513163 | [5] | Non-return valve |
| 19. | VOE14882297 | [11] | Back-up ring |
| 20. | VOE14513164 | [6] | Cap |
| 21. | SA8230-11950 | [3] | Cap |
| 22. | VOE14513178 | [1] | Non-return valve |
| 23. | VOE983502 | [2] | O-ring |
| 24. | SA7273-10751 | [2] | Cap |
| 25. | VOE14513186 | [1] | Cap |
| 26. | SA8230-11290 | [2] | Non-return valve |
| 27. | VOE14513193 | [1] | Cap |
| 28. | VOE14513194 | [2] | Cap |
| 29. | VOE14597150 | [2] | Spring |
| 30. | VOE14513198 | [1] | Spool |
| 31. | VOE14513182 | [1] | Seat |
| 32. | VOE14513179 | [1] | Guide |
| 33. | VOE14513180 | [1] | Spring |
| 34. | VOE14513181 | [1] | Non-return valve |
| 35. | VOE14513233 | [1] | O-ring |
| 36. | SA8330-00330 | [1] | Ring |
| 100. | VOE14564857 | [1] | Sealing kit |
| VOE14564858 | [1] | Sealing kit |
Number on C-A-Talog scheme: 100
