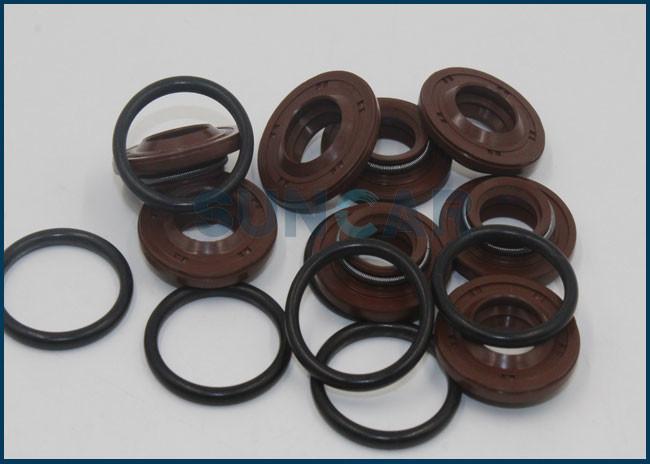

702-16-01050 7021601050 PPC Valve Seal Kit Komatsu Seal Fits Excavator PC200 PC400
702-16-01050 7021601050 PPC Valve Seal Kit Komatsu Seal Fits Excavator PC200 PC400
Description: PPC Valve means pilot valve seal kit.Pilot valves are commonly two or three port valves and have a poppet or sliding design. A poppet design is simply a disc with an opening that opens and closes. The sliding or spool design utilizes a metal shaft and spring. As pressure builds up on the shaft it pushes the springs and opens the valve.Pilot valve seal kit use in pilot valve and has great role.
| Product name | 702-16-01050 7021601050 PPC Valve Seal Kit Komatsu Seal Fits Excavator PC200 PC400 |
| Brand | SUNCAR |
| OEM No. |
702-16-01050 7021601050 |
| Color | As per standard color/customize color |
| Center joint Assy' | 702-16-33002 |
| Compatible model |
Excavators Komatsu PC-5 series;PC-6 series Excavator PC200 PC200SC PC210 PC220 PC228 PC228US PC228UU PC230 PC240 PC250 PC300 PC300LL PC300SC PC350 PC400 PC400ST PC450 PW130 Komatsu |
| Hardness | 70 degree to 95 degree |
| Package |
PP bag, carton, wooden box, or as required Nuetral packaging or OEM packaging |
| AppliC-A-Tion |
Machinery repair shops, excavator repair shops;Excavator;Komatsu |
| MOQ | 10 sets |
| Type | Excavator pilot valve seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Relative Brand |
Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,and more. |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
KOMATSU OEM:
702-16-33002KT
702-16-01050KT
702-16-01051KT
702-16-48002KT
702-16-32001KT
702-16-01071KT
702-16-01070KT
702-16-01072KT
702-16-03530KT
702-16-01651KT
702-16-01650KT
702-16-01042KT
702-16-01022KT
702-16-01740KT
91ER-20050
91ER-20051
XKAY-01431
XKAY-01723702-16-05020KT
702-16-03910KT
702-16-03530KT
702-16-04960KT
702-16-09121KT
702-16-03880KT
702-16-09131KT
702-16-04920KT
SA8230-36840
702-16-06150KT

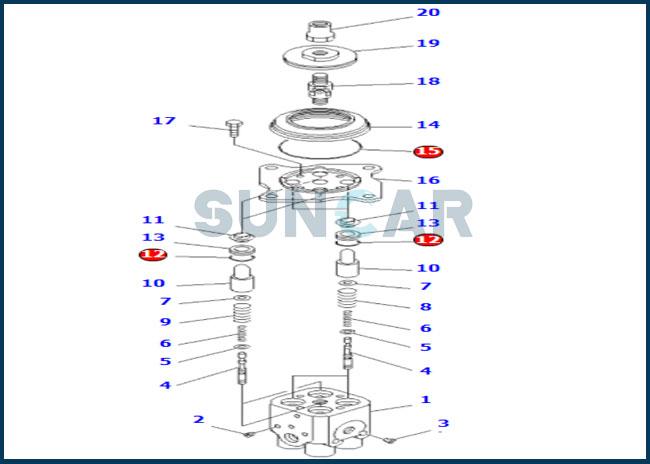

| 1 | • BODY,VALVE | 1 | |
| 1 | • BODY,VALVE | 1 | |
| 10 | 702-16-53170 | • PISTON | 4 |
| 11 | 702-16-51270 | • SEAL | 4 |
| 12 | 07000-12020 | • O-RING | 4 |
| 12 | 07000-02020 | • O-RING | 4 |
| 13 | 702-16-54170 | • COLLAR | 4 |
| 14 | 702-16-53190 | • BOOT | 1 |
| 15 | 07000-02070 | • O-RING | 1 |
| 16 | 702-16-53210 | • PLATE | 1 |
| 17 | 01010-80620 | • BOLT | 4 |
| 18 | 702-16-51240 | • JOINT | 1 |
| 19 | • DISC | 1 | |
| 2 | • PLUG | 2 | |
| 20 | 702-16-53230 | • NUT | 1 |
| 3 | • PLUG | 2 | |
| 4 | • VALVE | 4 | |
| 5 | 702-16-51140 | • SHIM, 0.30MM | 4 |
| 6 | 702-16-53420 | • SPRING | 4 |
| 7 | 702-16-53140 | • RETAINER | 4 |
| 8 | 702-16-53470 | • SPRING | 2 |
| 9 | 702-16-53590 | • SPRING | 2 |
| 702-16-01051 | PILOT VALVE | 1 | |
| 702-16-01050 | PILOT VALVE | 1 |
