702-16-01051 7021601051 Pilot Valve Seal Kit For Komatsu PC200
702-16-01051 7021601051 Pilot Valve Seal Kit For Komatsu PC200

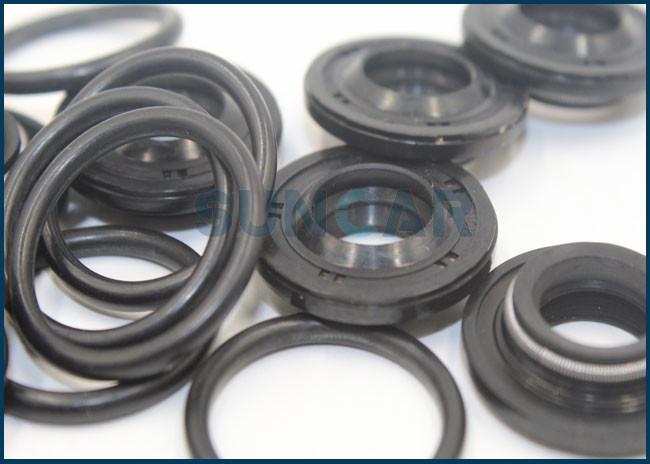

Description: This seal kit is Pilot valve seal kit,which compatible for KOMATSU.Pilot valves are commonly two or three port valves and have a poppet or sliding design. A poppet design is simply a disc with an opening that opens and closes. The sliding or spool design utilizes a metal shaft and spring. As pressure builds up on the shaft it pushes the springs and opens the valve.Pilot valve seal kit use in pilot valve and has great role.
| Product name | 702-16-01051 7021601051 Pilot Valve Seal Kit For Komatsu PC200 |
| Brand | SUNCAR |
| OEM No. |
702-16-01051 7021601051 |
| Color | As per standard color/customize color |
| Center joint Assy' | 702-16-33002 |
| Compatible model |
Excavators Komatsu PC200 PC200LL PC200SC PC210 PC220 PC220LL PC228 PC228US PC228UU PC230 PC250 PC270 PC300 PC300SC PC340 PC350 PC380 PC400 PC450 PW400MH |
| Hardness | 70 degree to 95 degree |
| Package |
PP bag, carton, wooden box, or as required Nuetral packaging or OEM packaging |
| AppliC-A-Tion |
Machinery repair shops, excavator repair shops;Excavator;Komatsu |
| MOQ | 10 sets |
| Type | Excavator pilot valve seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Relative Brand |
Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,and more. |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
Products Advantage:
1. Products are enjoying great reputation for its diversifiC-A-Tion,Innovation,and Superior Quality
2. Releasing new items periodically and customizing products to OEM quality
3. Excellent services and durable uses of products
4. Strict quality control
5. Fast delivery

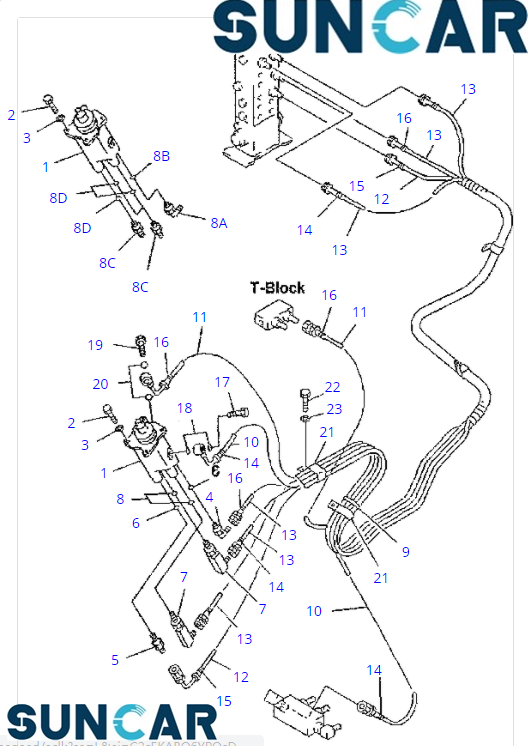

| Pos. | Part No | Qty | Parts name |
| 1 | 702-16-01051 | [2] | PILOT VALVE |
| 2 | 01010-80820 | [6] | BOLT K |
| 3 | 01643-30823 | [6] | WASHER |
| 4 | 07235-10311 | [1] | ELBOW |
| 5 | 20Y-62-22260 | [1] | NIPPLE |
| 6 | 07002-11423 | [2] | O-RING |
| 7 | 20Y-970-1741 | [2] | ELBOW |
| 8A. | 07235-10210 | [1] | ELBOW |
| 8C. | 07230-20210 | [3] | UNION |
| 9 | 08034-00536 | [1] | BAND |
| 10 | 20Y-62-23251 | [1] | HOSE, 1100MM |
| 11 | 20Y-62-23261 | [1] | HOSE, 1400MM |
| 12 | 207-62-63620 | [1] | HOSE, 3150MM |
| 207-62-63621 | [1] | HOSE, 3150MM | |
| 13 | 207-62-63650 | [3] | HOSE, 3200MM |
| 207-62-63651 | [3] | HOSE, 3200MM | |
| 14 | 20Y-62-22790 | [4] | BAND, RED, RED |
| 15 | 20Y-62-22810 | [2] | BAND, YELLOW, YELLOW |
| 16 | 20Y-62-22820 | [4] | BAND, BLUE, BLUE |
| 17 | 20Y-62-18910 | [1] | BOLT K |
| 18 | 07000-12018 | [2] | O-RING |
| 19 | 20Y-62-18890 | [1] | BOLT |
| 20 | 07000-12015 | [2] | O-RING |
| 21 | 208-06-19170 | [2] | CLIP |
| 22 | 01010-80816 | [2] | BOLT |
