Pilot Valve Sealing Kit 702-16-01042 7021601042 for Komatsu PC200-5C
Pilot Valve Sealing Kit 702-16-01042 702-16-01042 For Komatsu PC200-5C
Description: PILOT VALVE 702-16-01042 can be installed in equipment Komatsu Excavators Komatsu PC200-5 S/N 45001-UP (pc200-5r), Excavators Komatsu PC200-5C S/N 45001-UP (Custom Spec.) (pc200-0c), Excavators Komatsu PC200-5Z S/N 45001-UP (pc200-6r), Excavators Komatsu PC200LC-5 S/N 45001-UP (pc200lcr), Excavators Komatsu PC200LC-5S S/N 45001-UP (pc200l0r), Excavators Komatsu PC220-5C S/N 35001-UP (pc220-4r), Excavators Komatsu PC220LC-5 S/N 35001-UP (pc220lcr), Excavators Komatsu PC220LC-5C S/N 35001-UP (pc220l4r), Excavators Komatsu PC200-5S S/N 45001-UP (pc200-0r), Excavators Komatsu PC200LC-5C S/N 45001-UP (Custom Spec.) (pc200l0c),EXCAVATORS PC200-5, EXCAVATORS PC200-5C, EXCAVATORS PC200-5S, EXCAVATORS PC200-5Z, EXCAVATORS PC200LC-5, EXCAVATORS PC200LC-5C, EXCAVATORS PC200LC-5S, EXCAVATORS PC220-5, EXCAVATORS PC220-5C, EXCAVATORS PC220LC-5.
| Product name | Pilot Valve Sealing Kit 702-16-01042 702-16-01042 For Komatsu PC200-5C |
| Brand | SUNCAR |
| OEM No. |
702-16-01042 702-16-01042 |
| Color | As per standard color/customize color |
| Center joint Assy' | 702-16-01042 |
| Hardness | 70 degree to 95 degree |
| Compatible model | PC200-5C; PC200LC-5C; PC220-5C |
| Package |
PP bag, carton, wooden box, or as required Nuetral packaging or OEM packaging |
| AppliC-A-Tion |
Engine, Hydraulic, Fuel injection, Valves. |
| MOQ | 100 sets |
| Type | Excavator pilot valve seal kit |
| Series number | 45001-UP (PC200-5R), 45001-UP (CUSTOM SPEC.) (PC200-0C), 45001-UP (PC200-6R), 45001-UP (PC200LCR), 45001-UP (PC200L0R), 35001-UP (PC220-4R), 35001-UP (PC220LCR), 35001-UP (PC220L4R), 45001-UP (PC200-0R), 45001-UP (CUSTOM SPEC.) (PC200L0C), 35001-UP (PC220-5R), 35001-UP (CUSTOM SPEC.) (PC220-0C), 35001-UP (CUSTOM SPEC.) (PC220L3C) |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
We manufacture and supply a range of high quality excavator seal kit.
The supplied seal kit are manufactured by our factory using the best quality raw materials and the latest technology.
This seal kit is well received by customers in the market because of its high durability, tensile strength and good resistance to harsh environments.The supplied seal kit can be obtained from us at a market-leading price.

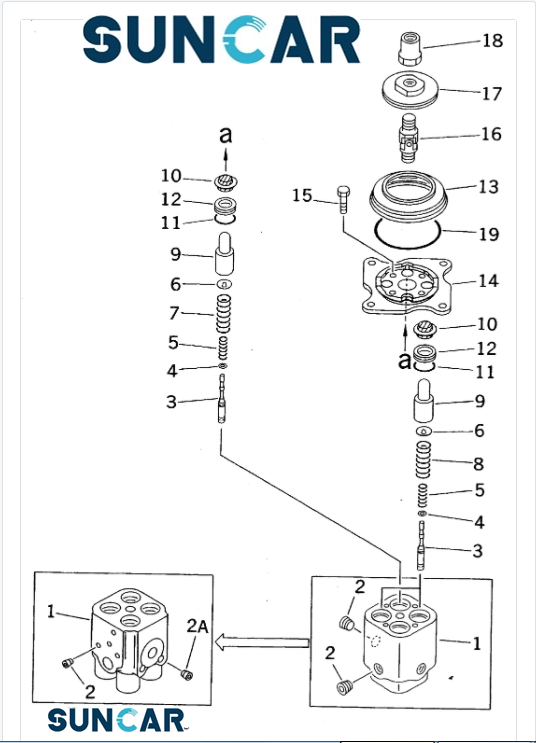

| Pos. | Part No | Qty | Parts name |
| 702-16-01042 | [2] | PILOT VALVE | |
| 702-16-01041 | [2] | PILOT VALVE | |
| 702-16-01040 | [2] | PILOT VALVE | |
| 1. | [1] | BODY | |
| 2. | 706-86-51180 | [2] | PLUG |
| 2. | 07043-50312 | [2] | PLUG |
| 2A. | 708-18-12570 | [2] | PLUG |
| 4. | 702-16-51140 | [4] | SHIM, 0.30MM |
| 5. | 702-16-53420 | [4] | SPRING |
| 6. | 702-16-53140 | [4] | RETAINER |
| 7. | 702-16-53160 | [2] | SPRING |
| 8. | 702-16-53150 | [2] | SPRING |
| 9. | 702-16-53170 | [4] | PISTON |
| 10. | 702-16-51270 | [4] | SEAL |
| 11. | 07000-02020 | [4] | O-RING |
| 12. | 702-16-53290 | [4] | COLLAR |
| 13. | 702-16-53190 | [1] | BOOT |
| 14. | 702-16-53210 | [1] | PLATE |
| 15. | 01010-50620 | [4] | BOLT |
| 15. | 01010-50616 | [4] | BOLT |
| 16. | 702-16-51240 | [1] | JOINT |
| 17. | 702-16-53220 | [1] | DISC |
| 18. | 702-16-53230 | [1] | NUT |
| 19. | 07000-02070 | [1] | O-RING |
| 19. | 702-16-53370 | [1] | O-RING |
