708-7R-00260 7087R00260 Swing Motor Seal Kit Fit For Excavator PC30MR-1
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
708-7R-00260 7087R00260 Swing Motor Seal Kit Fit For Excavator PC30MR-1
Description: This is a seal kit 708-7R-00260 for Excavator Komatsu PC30MR-1 swing motor,which main function is seal oil.Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.
| Product name | 708-7R-00260 7087R00260 Swing Motor Seal Kit Fit For Excavator PC30MR-1 |
| Brand | SUNCAR |
| OEM number | 708-7R-00260 7087R00260 |
| Part name | 7087R00260 Swing motor seal kit |
| Color | As per standard color/customize color |
| NBR | -30℃~+110℃ |
| FKM | -10℃~+150℃ |
| Compatible model | Excavator PC27MRX-1A; PC30MR-1-K; PC30MRX-1 PC30UU Komatsu |
| Feature | Resistant to heat, oil, fatigue, aging and friction |
| Section code | Hydraulic swing motor |
| Package |
Nuetral packaging or OEM packaging |
| Hardness | 75-90 degree |
| AppliC-A-Tion |
Resell,construction machinery works |
| MOQ | 100 sets |
| Type | Hydraulic motors |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | The people in need |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |

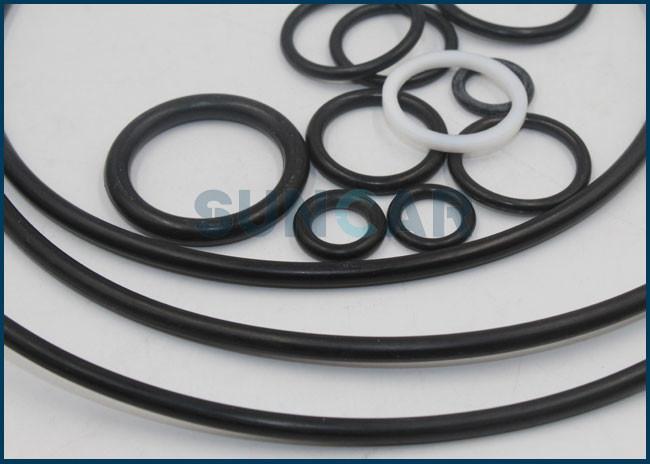

SUNCAR Swing Motor Seal Kit:
| 173-3454 | 1733454 |
| 173-3454 | 1733454 |
| K9003804 | YN15V00025F3 |
| VOE14501803 | 14501803 |
| VOE14501803 | 14501803 |
| VOE14512788 | 14512788 |
| VOE14512788 | 14512788 |
| XKAY-00553 | 1884176 |
| 816217 | 188-4176 |
| 7010055 | VOE14529836 |
| 2401-6250K | VOE14529836 |
| 2401-9099K | 14529836 |
| 2401-9118K | 14529836 |
| 2401-9159K | VOE14552332 |
| 2401-9178K | VOE14552332 |
| 2401-9242KT | 14552332 |
| 2401-9246KT | 14552332 |
| 2401-9247KT | 4334356KT |
| 2401-9291KT | 4330219KT |
| 2401-9309KT | YN15V00025F4 |
| 401107-00467 | K9008336 |
| 61090S | MA5503 |
| AD0816A | MA5507 |
| K1000101KT | MA5511 |
| K9000476 | 2401-9126 |
| K90019003 | XKAH-00616 |
| K9001903 | XKAH-01060 |
| K9002069 | 4334355KT |
| K9002875 | K9005726 |
| K9004885 | YN15V00002F4 |
| K9004885A | K9006619 |

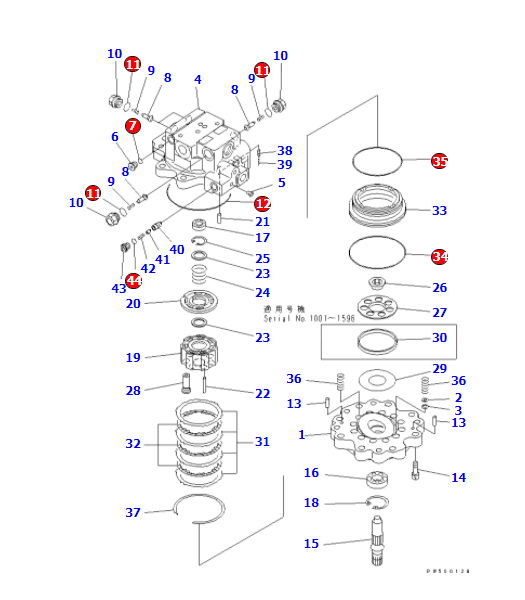

Relative Parts:
| 708-7R-00260 | MOTOR ASS'Y | 1 | |
| 708-7R-00081 | MOTOR ASS'Y | 1 | |
 |
• MOTOR SUB ASS'Y | 1 | |
 |
• MOTOR SUB ASS'Y | 1 | |
| 1 |  708-7R-11640 |
•• PLATE,SWASH | 1 |
| 1 |  708-7R-11621 |
•• PLATE,SWASH | 1 |
| 2 |  708-7R-11710 |
•• WASHER | 1 |
| 3 |  708-7R-11720 |
•• FILTER | 1 |
 708-7R-04050 |
•• HOUSING SUB ASS'Y | 1 | |
| 4 |  |
••• HOUSING | 1 |
| 5 |  |
••• PLUG | 3 |
| 6 | 708-7R-11220 | •• PLUG | 2 |
| 7 | 07002-11223 | •• O-RING | 2 |
| 8 | 708-7R-11210 | •• VALVE | 4 |
| 9 | 722-10-91130 | •• SPRING | 4 |
| 10 | 709-32-12861 | •• PLUG | 4 |
| 11 | 07002-11823 | •• O-RING | 4 |
| 12 |  431-40-11210 |
•• O-RING | 1 |
| 13 |  720-68-19610 |
•• PIN | 2 |
| 14 |  01252-61230 |
•• BOLT | 8 |
| 15 |  708-7R-12130 |
•• SHAFT | 1 |
| 16 |  708-7R-12140 |
•• BEARING | 1 |
| 17 |  708-7R-12150 |
•• BEARING | 1 |
| 18 | 04065-04218 | •• RING,SNAP | 1 |
| 19 |  708-7R-13111 |
•• BLOCK,CYLINDER | 1 |
| 20 |  708-7R-13231 |
•• PLATE,VALVE | 1 |
| 20 |  708-7R-13230 |
•• PLATE,VALVE | 1 |
| 21 |  720-68-19610 |
•• PIN | 1 |
| 22 |  708-7R-13540 |
•• PIN | 3 |
| 23 |  708-7R-13530 |
•• WASHER | 2 |
| 24 |  708-7R-13560 |
•• SPRING | 1 |
| 25 |  04065-03012 |
•• RING | 1 |
| 26 |  708-7R-13590 |
•• GUIDE,RETAINER | 1 |
| 27 |  708-7R-13360 |
•• RETAINER,SHOE | 1 |
| 27 |  708-7R-13351 |
•• RETAINER,SHOE | 1 |
| 28 |  708-7R-13320 |
•• PISTON SUB ASS'Y | 7 |
| 29 |  708-7R-13420 |
•• PLATE,THRUST | 1 |
| 29 |  708-7R-13410 |
•• PLATE,THRUST | 1 |
| 30 |  708-7R-13581 |
•• SPACER | 1 |
| 31 |  708-7R-15131 |
•• PLATE | 4 |
| 31 |  708-7R-15130 |
•• PLATE | 4 |
| 32 |  708-7R-15122 |
•• DISC | 3 |
| 32 |  708-7R-15121 |
•• DISC | 3 |
| 33 |  708-7R-15180 |
•• PISTON,BRAKE | 1 |
| 34 |  07000-12115 |
•• O-RING | 1 |
| 35 |  07000-12095 |
•• O-RING | 1 |
| 36 |  708-7R-15150 |
•• SPRING | 12 |
| 44 | 07002-11223 | •• O-RING | 1 |
