708-27-04023 7082704023 Hydraulic Main Pump Seal Kit For PC400 PC410 KOMATSU
708-27-04023 7082704023 Hydraulic Main Pump Seal Kit for PC400 PC410 KOMATSU
Description: This ia a seal kit for main pump 708-27-04023 7082704023.This service kit conform to national production standards, using high-quality raw materials production.Main features is sealing oil,dustproof,anti-leak.The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.
| Product name | 708-27-04023 7082704023 Hydraulic Main Pump Seal Kit for PC400 PC410 KOMATSU |
| Brand name | SUNCAR |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 708-27-04023 7082704023 |
| MOQ | 10 sets/Accept trial order |
| Function |
Play a role of sealing, anti-leakage and dust-proof |
| Features | Oil resistance;Sealing oil |
| Payment | L/C, Paypal,T/T, Western Union, ,Bank transfer |
| Temp. | NBR(-40~120°C) |
| Temp. | FFKM(-20~320°C) |
| Temp. | PU(-40~90°C) |
| Paking | PP bag inside,carton box outside. |
| Make up | Seal oil,O-Ring |
| Supply ablity | 550 pcs per weak |
| Original place | Guangdong province,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Rich |
| Compatible equipment | Excavator;KOMATSU; |
| Loading port | Huangpu,China |
| Condition | 100% new |
| Standard or not standard products | Standard products |
AppliC-A-Ted Models:
| PC400 |
PC400LC-5 |
PC400-5C |
| PC400LC | PC400-5 | PC400HD-5K |
| PC400LC-5 | Excavator | Komatsu |

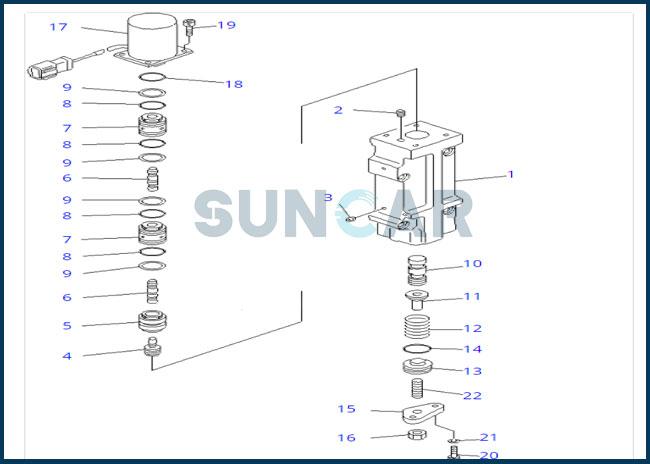

Parts On Group:
| Pos. | Part No | Qty | Parts name |
| 708-27-04023 | [1] | HYDRAULIC PUMP AS'Y | |
| 708-27-04022 | [1] | HYDRAULIC PUMP AS'Y | |
| 708-27-04021 | [1] | HYDRAULIC PUMP AS'Y | |
| 708-27-08121 | [1] | SERVO VALVE AS'Y,FRONT | |
| 708-27-08721 | [1] | VALVE AS'Y | |
| 708-23-00451 | [1] | BODY AS'Y | |
| 3 | 708-25-15350 | [12] | EXPANDER |
| 4 | 708-23-18120 | [1] | PISTON |
| 5 | 708-23-18130 | [1] | SLEEVE |
| 6 | 708-25-18120 | [2] | PISTON |
| 7 | 708-23-18260 | [2] | SLEEVE |
| 8 | 07000-12016 | [4] | O-RING |
| 9 | 07001-02016 | [4] | RING,BACK-UP |
| 10 | 708-23-18161 | [1] | SPOOL |
| 11 | 708-23-18170 | [1] | SEAT |
| 12 | 708-23-18181 | [1] | SPRING |
| 13 | 708-23-15160 | [1] | PLUG |
| 14 | 07000-02018 | [1] | O-RING |
| 15 | 708-23-18210 | [1] | COVER |
| 16 | 01580-10806 | [1] | NUT |
| 17 | 708-23-18272 | [1] | SOLENOID AS'Y |
| 18 | 07000-02016 | [1] | O-RING |
| 19 | 708-23-18250 | [4] | BOLT |
| 20 | 708-25-15320 | [2] | BOLT |
| 21 | 01602-20619 | [2] | WASHER,SPRING |
| 22 | 708-25-15340 | [1] | SCREW |
