VOE14596398 VOE 14596398 Travel Motor Seal Repair Kit For SUNCARSUNCARVOLVO EC290B
VOE14596398 VOE 14596398 Travel Motor Seal Repair Kit For SUNCARSUNCARSUNCARSUNCARVOLVO EC290B

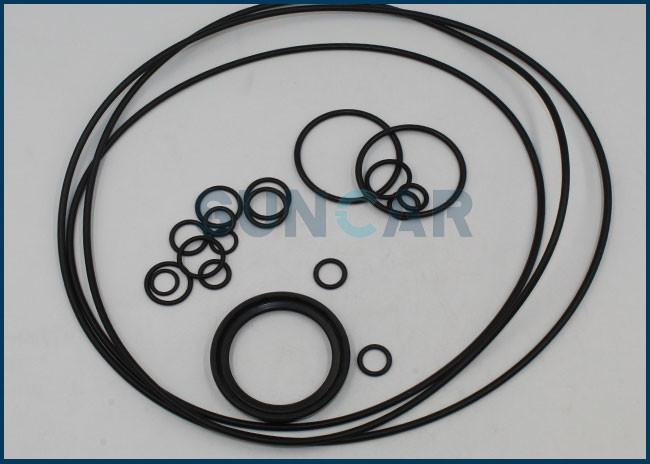

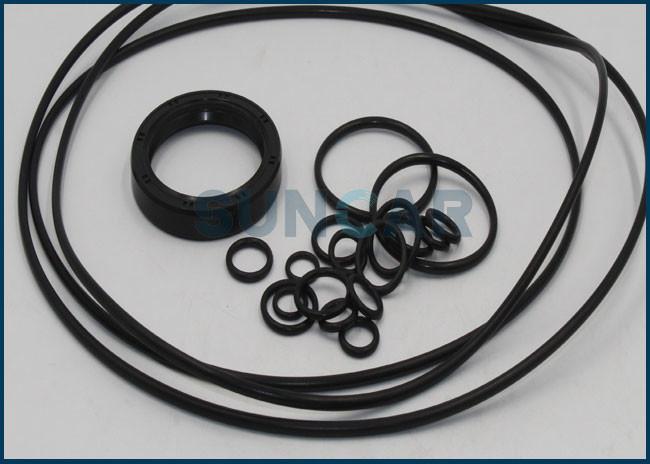

Description: This ia a seal kit for travel motor.compatible for SUNCARSUNCARSUNCARSUNCARVOLVO EC290B.The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.The power comes from the hydraulic system.The travel motor seal kit prevents oil from leaking and maintains power.
| Product name | SA8 230-21810 SA8230-21810 SA823021810 Travel Motor Seal Kit For EC240B EC240C |
| Brand name | SUNCAR |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | VOE14596398 VOE 14596398 |
| MOQ | 10 sets/Accept trial order |
| Function |
Prevents oil from leaking and maintains power |
| Features | Oil resistance;Sealing oil |
| Quality | JAPAN |
| Payment | L/C, Paypal,T/T, Western Union, ,Bank transfer |
| Temp. | NBR(-40~120°C) |
| Temp. | FFKM(-20~320°C) |
| Temp. | PU(-40~90°C) |
| AppliC-A-Tion | Travel motor;Resell |
| Paking | PP bag inside,carton box outside. |
| Make up | Seal oil,O-Ring |
| Supply ablity | 550 pcs per weak |
| Original place | Guangdong province,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Rich |
| Compatible equipment | Excavator;SUNCARSUNCARSUNCARSUNCARVOLVO |
| Loading port | Huangpu,China |
| Condition | 100% new |
| Standard or not standard products | Standard products |
AppliC-A-Ted Models:
| EC240C |
EC290C |
EC330C |
| EC360C | FC2924C | FC3329C |
| EC360CHR | EC290B | EC360C |
| EC360B | EC330B | EC380D |
| EC340D | EC300D | EC250D |
| PL3005D | EC380DHR | EC350D |
| EC380E | EC250E | EC300E |
| EC350E | EC380EHR |

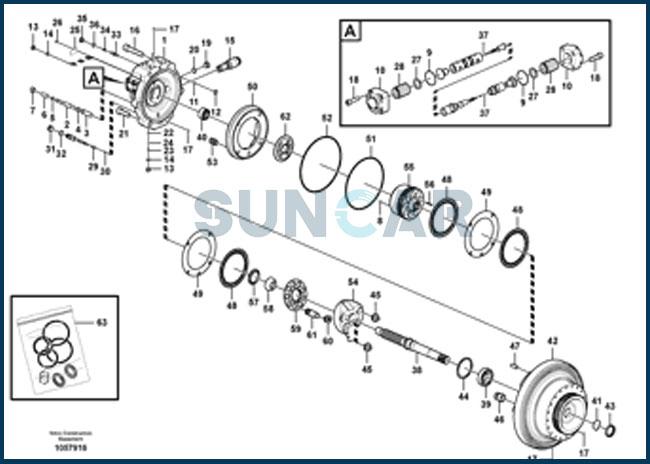

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14592002 | [1] | Travel motor | |
| 1 | VOE14565334 | [1] | Casing |
| 2 | VOE14565337 | [1] | Rod |
| 3 | VOE14565336 | [1] | Pin |
| 4 | VOE983507 | [1] | O-ring |
| 5 | VOE983501 | [1] | O-ring |
| 6 | VOE14528296 | [1] | Screw |
| 7 | VOE997410 | [1] | Hexagon nut |
| 8 | VOE14551525 | [1] | Pin |
| 9 | VOE990585 | [2] | O-ring |
| 10 | SA7242-10540 | [2] | Cover |
| 11 | SA7242-10750 | [1] | Screw |
| 12 | VOE983497 | [1] | O-ring |
| 13 | SA9415-31021 | [7] | Plug |
| 14 | VOE993320 | [7] | O-ring |
| 15 | SA7242-11580 | [2] | Relief valve |
| 16 | SA9016-22019 | [2] | Hex. socket screw |
| 17 | VOE14560637 | [9] | Plug |
| 18 | SA9016-11209 | [8] | Hex. socket screw |
| 19 | SA9415-31041 | [2] | Plug |
| 20 | VOE993322 | [2] | O-ring |
| 21 | VOE984229 | [4] | Hex. socket screw |
| 22 | SA7242-10710 | [2] | Clamping plate |
| 23 | SA7242-10720 | [2] | Guard |
| 24 | VOE14880998 | [2] | Ball |
| 25 | [1] | Nameplate | |
| 26 | SA1010-11360 | [2] | Screw |
| 27 | SA7242-10520 | [2] | Washer |
| 28 | SA7242-10530 | [2] | Spring |
| 29 | SA7242-11560 | [1] | Spring |
| 30 | VOE14507000 | [1] | Spacer |
| 31 | SA7242-11290 | [1] | Plug |
| 32 | VOE983509 | [1] | O-ring |
| 33 | VOE14506993 | [1] | Spool |
| 34 | VOE14506994 | [1] | Spring |
| 35 | VOE14506995 | [1] | Plug |
| 36 | VOE983505 | [1] | O-ring |
| 37 | VOE14880996 | [2] | Ball |
| 38 | VOE14565331 | [1] | Shaft |
| 39 | VOE14640025 | [1] | Roller bearing |
| 40 | VOE14506955 | [1] | Bearing |
| 41 | VOE914472 | [1] | Snap ring |
| 42 | VOE14568909 | [1] | Casing |
| 43 | SA7242-10590 | [1] | Seal |
| 44 | SA8320-01810 | [1] | Retaining ring |
| 45 | VOE14506958 | [2] | Pivot |
| 46 | VOE14506959 | [1] | Piston |
| 47 | VOE14551526 | [5] | Pin |
| 48 | VOE14506982 | [3] | Plate |
| 49 | VOE14506984 | [2] | Plate |
| 50 | VOE14565332 | [1] | Piston |
| 51 | VOE960262 | [1] | O-ring |
| 52 | VOE990849 | [1] | O-ring |
| 53 | VOE14568004 | [10] | Spring |
| 54 | VOE14506962 | [1] | Plate |
| 55 | VOE14552645 | [1] | Cylinder block |
| 56 | VOE14506967 | [9] | Spring |
| 57 | VOE14506968 | [1] | Spacer |
| 58 | VOE14506970 | [1] | Guide |
| 59 | VOE14506972 | [1] | Plate |
| 60 | VOE14506977 | [9] | Pad |
| 61 | VOE14551798 | [9] | Piston |
| 62 | VOE14506978 | [1] | Plate |
| 63 | VOE14596398 | [1] | Seal |
