VOE 14514937 VOE14514937 Turning Joint Sealing Kit For SUNCARSUNCARVOLVO EC135B EC140B EC210B EC240B EC290B
VOE 14514937 VOE14514937 Turning Joint Sealing Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC135B EC140B EC210B EC240B EC290B
Description: This seal kit is swivel joint seal kit,also named center joint seal kit,turning joint seal kit.Compatible for SUNCARSUNCARSUNCARSUNCARVOLVO models.Swivel joints are precision components for the connection between stationary pipes (or hoses) and rotating parts of machines. The function is the transport of gaseous, liquid or semi-solid substances (e.g. oil, steam, cooling liquids) from and to machines.
| Product name | VOE 14514937 VOE14514937 Turning Joint Sealing Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC135B EC140B EC210B EC240B EC290B |
| Brand name | SUNCAR |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | VOE 14514937 VOE14514937 |
| MOQ | 10 sets/Accept trial order |
| Function |
Prevents oil from leaking and maintains power |
| Features | Oil resistance;Sealing oil |
| Quality | JAPAN |
| Payment | L/C, Paypal,T/T, Western Union, ,Bank transfer |
| Temp. | NBR(-40~120°C) |
| Temp. | FFKM(-20~320°C) |
| Temp. | PU(-40~90°C) |
| AppliC-A-Tion | Travel motor;Resell |
| Paking | PP bag inside,carton box outside. |
| Make up | Seal oil,O-Ring |
| Supply ablity | 550 pcs per weak |
| Original place | Guangdong province,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Rich |
| Compatible equipment | Excavator;SUNCARSUNCARSUNCARSUNCARVOLVO |
| Loading port | Huangpu,China |
| Condition | 100% new |
| Standard or not standard products | Standard products |
AppliC-A-Ted Model:
| EC160B | EC180B | EC290B | EC240B |
| EC135B | EC240B | EC240C | EC290C |
| FC2924C | FC3329C | EC290B | EC210B |
| EC290B | EC240B | EC210B | EC140B |
| EC180B | EC160B | EC140B | EC240B |
| EC200B | EC210 | EC140 | EC290 |
Large stock ready-to-deliver for every type of seal kit for swivel joint seal kit!
Our seal kits are compatible with the originals, with the use of original seals or alternative brands in terms of cost-effectiveness.
We can make any seal kit also if out of production or no more available originals in the OEM. It will be sufficent to send us a sample, also partially or totally used, to determine the dimensions, profiles and materials and we can immediately reproduce them.
If you have any requirement of packing and material,pls feel free to contact us,we will try our best to meet your demand!
Choosing us as your partner will guarantee you an important competitive advantage on the market!

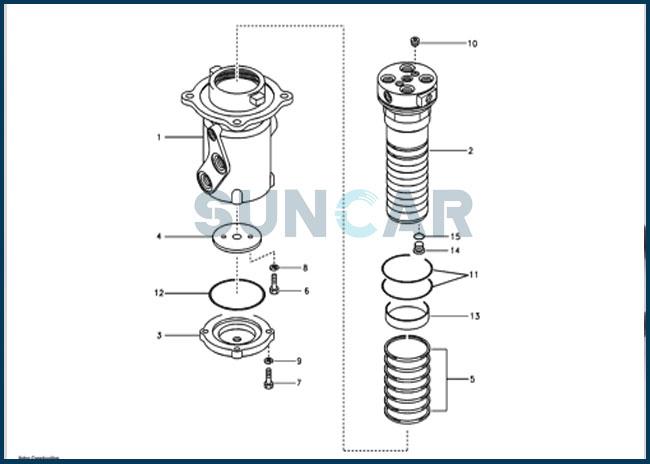

Parts on Group Turning Joint:
| Pos. | Part No | Qty | Parts name |
| SA1146-00062 | [1] | Centre passage | |
| 1 | SA1146-00071 | [1] | Hub |
| 2 | VOE14514379 | [1] | Shaft |
| 3 | SA1146-00090 | [1] | Cover |
| 4 | SA1146-00101 | [1] | Spacer |
| 5 | VOE14507705 | [7] | Seal |
| 6 | VOE983251 | [2] | Hexagon screw |
| 7 | VOE978933 | [4] | Hexagon screw |
| 8 | VOE955922 | [2] | Spring washer |
| 9 | VOE955923 | [4] | Spring washer |
| 10 | SA9415-43032 | [2] | Plug |
| 11 | VOE990645 | [2] | O-ring |
| 12 | VOE990601 | [1] | O-ring |
| 13 | SA9611-10025 | [1] | Bearing |
| 14 | SA1146-00670 | [4] | Plug |
| 15 | VOE983524 | [4] | O-ring |
| 100 | VOE14514937 | [1] | Seal |
