SA8 230-14370 SA8230-14370 SA823014370 Sealing Kit Of Swing Motor For SUNCARSUNCARVOLVO EC135B
SA8 230-14370 SA8230-14370 SA823014370 Sealing Kit of Swing Motor For SUNCARSUNCARSUNCARSUNCARVOLVO EC135B
Description: This is a seal kit for swing motor.Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. This seal kit has high performance,and it conform to national production standards, using high-quality raw materials production.
| Product name | SA8 230-14370 SA8230-14370 SA823014370 Sealing Kit of Swing Motor For SUNCARSUNCARSUNCARSUNCARVOLVO EC135B |
| Brand | SUNCAR |
| OEM No. |
SA8 230-14370 |
| Color | As per standard color/customize color |
| Swing motor Ass'y | VOE14532629 |
| Hardness | 70 degree to 95 degree |
| Package | PP bag, carton, wooden box, or as required |
| AppliC-A-Tion |
Machinery repair shops, excavator repair shops;Excavator;Hyundai |
| MOQ | 10 sets |
| Type | Excavator swing motor seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Relative Brand |
Komatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,Mitsubishi and more. |
| Packaging | Nuetral packaging or OEM packaging |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
| About us | The scope of our business Excavator parts for excavator of various models and brands |
AppliC-A-Ted Models:
| ECR145C | EW145B | EC135B |
| EC140C | EW130 | EC140B; |
| EC140B | EC140E | ECR145E |
|
EW145B |
EC140D | ECR145D |
| EC140 |

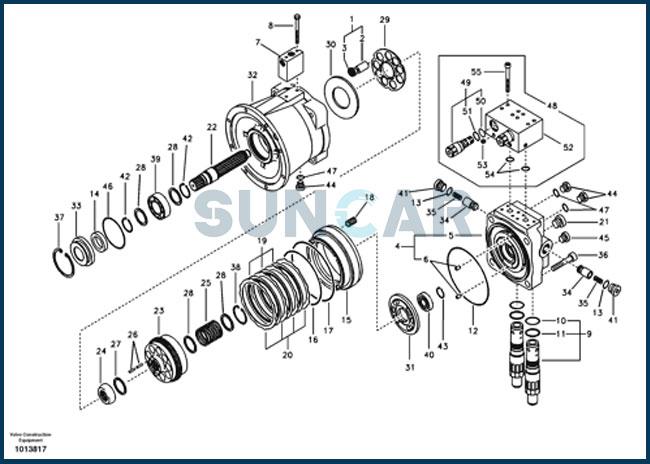

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| SA1142-00920 | [1] | Motor | |
| 1 | VOE14612049 | [0009] | Piston |
| 2 | VOE14501617 | [1] | Piston |
| 3 | VOE14501618 | [1] | Seat |
| 4 | SA8230-30360 | [1] | Casing |
| 5 | VOE14501619 | [1] | Casing |
| 6 | VOE14501620 | [2] | Pin |
| 7 | VOE14511642 | [1] | Valve |
| VOE14562621 | [2] | Plug | |
| VOE983493 | [2] | O-ring | |
| VOE983503 | [1] | O-ring | |
| 8 | VOE14511643 | [3] | Screw |
| 9 | SA8230-27421 | [1] | Relief valve |
| 10 | VOE990582 | [1] | O-ring |
| 11 | VOE14880837 | [1] | Back-up ring |
| 12 | SA8240-03360 | [1] | O-ring |
| 13 | VOE983509 | [2] | O-ring |
| 14 | SA8230-26860 | [1] | Seal |
| 15 | SA8230-13840 | [1] | Brake piston |
| 16 | SA8230-25510 | [1] | O-ring |
| 17 | SA8230-25520 | [1] | O-ring |
| 18 | SA8230-14140 | [16] | Spring |
| 19 | SA8230-13780 | [3] | Friction plate |
| 20 | SA8230-13730 | [4] | Separating plate |
| 21 | SA8230-26920 | [1] | Plastic plug |
| 22 | SA8230-13670 | [1] | Shaft |
| 23 | SA8230-13690 | [1] | Cylinder |
| 24 | SA8230-14100 | [1] | Retainer |
| 25 | SA8230-14130 | [1] | Spring |
| 26 | SA8230-26340 | [12] | Rod |
| 27 | SA8230-14120 | [2] | Spacer |
| 28 | SA8230-14110 | [3] | Spacer |
| 29 | SA8230-13920 | [1] | Plate |
| 30 | SA8230-14080 | [1] | Plate |
| 31 | SA8230-13930 | [1] | Valve plate |
| 32 | SA8230-13600 | [1] | Casing |
| 33 | SA8230-14090 | [1] | Cover |
| 34 | SA8230-14170 | [2] | Control plunger |
| 35 | SA8230-14180 | [2] | Spring |
| 36 | SA8240-03530 | [4] | Bolt |
| 37 | SA8230-25770 | [1] | Snap ring |
| 38 | VOE14505028 | [1] | Snap ring |
| 39 | SA8230-26570 | [1] | Roller bearing |
| 40 | VOE14511641 | [1] | Roller bearing |
| 41 | SA8230-25660 | [2] | Plug |
| 42 | SA8230-25970 | [2] | Ring |
| 43 | SA8230-26960 | [1] | Ring |
| 44 | SA8230-25640 | [3] | Plug |
| 45 | SA8230-26930 | [1] | Plug |
| 46 | VOE990592 | [1] | O-ring |
| 47 | VOE983502 | [3] | O-ring |
| 48 | VOE14511644 | [1] | Block |
| 49 | VOE14684415 | [2] | Valve |
| 50 | VOE983509 | [1] | O-ring |
| 51 | VOE14625240 | [1] | Ring |
| 52 | VOE14511646 | [1] | Casing |
| 53 | VOE14560637 | [4] | Plug |
| 54 | VOE983511 | [2] | O-ring |
| 55 | SA8240-03620 | [6] | Bolt |
| 100 | SA8230-14370 | [1] | Seal |
