31Y1-18110 31Y118110 Arm Cylinder Seal Kit For HYUNDAI R140W-7 R140LC-7
31Y1-18110 31Y118110 Arm Cylinder Seal Kit For HYUNDAI R140W-7 R140LC-7
Description: Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
| Product name | 31Y1-18110 31Y118110 Arm Cylinder Seal Kit For HYUNDAI R140W-7 R140LC-7 |
| Brand name | SUNCAR |
| Fit brand | HYUNDAI |
| MOQ | 10 sets |
| Feuture |
Sealing performance/Wear resistance/High&low temperature resistence |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking | PP bag inside,carton box outside. |
| Loading port | Huangpu port,China |
| Transport ways |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Condition |
100% new |
| Original place | Guangdong,China |
|
Availability |
In stock |
| Compatible equipment models |
7 Series Wheel Excavator R140W7 R140W7A |
Relative Parts:

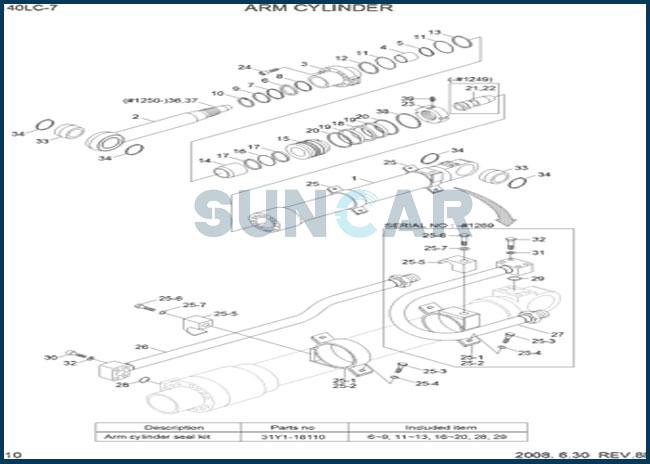

| Pos. | Part No | Qty | Parts name |
| *. | 31N4-50130 | [1] | ARM CYLINDER |
| *. | 31N4-50131 | [1] | ARM CYLINDER |
| *. | 31N4-50132 | [1] | ARM CYLINDER |
| *. | 31N4-50133 | [1] | ARM CYLINDER |
| *-1. | 31Y1-18080 | [1] | ARM CYL SUB ASSY |
| *-1. | 31Y1-18081 | [1] | ARM CYL SUB ASSY |
| *-1. | 31Y1-18082 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-18260 | [1] | TUBE ASSY |
| 2 | 31Y1-03620 | [1] | ROD ASSY |
| 2 | 31Y1-03621 | [1] | ROD ASSY |
| 2 | 31Y1-03622 | [1] | ROD ASS'Y |
| N36. | @ | [1] | SPEAR-CUSHION |
| N37. | @ | [1] | RING-STOP |
| 3 | 31Y1-19640 | [1] | GLAND |
| 4 | S732-080040 | [1] | BUSHING-DD2 |
| 5 | Y191-086000 | [1] | RING-SNAP |
| K6. | Y220-080011 | [1] | SEAL-ROD |
| K7. | Y180-080020 | [1] | RING-BACK UP |
| K8. | Y240-080013 | [1] | RING-BUFFER |
| K9. | Y110-080011 | [1] | WIPER-DUST |
| 10 | Y190-094000 | [1] | RING-SNAP |
| K11. | S631-105004 | [2] | O-RING |
| K12. | S641-105002 | [1] | RING-BACK UP |
| K13. | S641-105003 | [1] | RING-BACK UP |
| 14 | 31YC-21050 | [1] | RING-CUSHION |
| 15 | 31Y1-03660 | [1] | PISTON |
| 15 | 31Y1-03661 | [1] | PISTON |
| K16. | S632-070004 | [1] | O-RING |
| K17. | S642-070003 | [2] | RING-BACK UP |
| K18. | Y420-115000 | [1] | SEAL-PISTON |
| K19. | Y310-115003 | [2] | RING-WEAR |
| K20. | Y440-115000 | [2] | RING-DUST |
| 21 | 31YC-29070 | [1] | SPEAR-CUSHION |
| 22 | Y890-015011 | [1] | BALL-STEEL |
| 23 | 31YC-61050 | [1] | NUT-LOCK |
| 23 | 31YC-61174 | [1] | NUT-LOCK |
| 24 | S109-180604 | [9] | BOLT-SOCKET |
| 25 | 31Y1-03670 | [2] | BAND ASSY |
| 25 | 31Y1-03670 | [1] | BAND ASSY |
| 25-1. | 31Y1-03680 | [1] | BAND SUB ASSY |
| 25-2. | 31YC-31060 | [1] | BAND |
| 25-3. | S011-100352 | [2] | BOLT-HEX |
| 25-4. | S411-100002 | [2] | WASHER-SPRING |
| 25-5. | 31YC-36010 | [1] | CLAMP-PIPE |
| 25-6. | S015-120502 | [1] | BOLT-HEX |
| 25-7. | S411-120002 | [1] | WASHER-SPRING |
| 26 | 31Y1-18090 | [1] | PIPE ASSY |
| 27 | 31Y1-18100 | [1] | PIPE ASSY-B |
| K28. | Y171-019004 | [1] | O-RING |
| K29. | S631-026004 | [1] | O-RING |
| 30 | S037-104512 | [4] | BOLT-W/WASHER |
| 31 | S017-100602 | [4] | BOLT-HEX |
| 32 | S411-100002 | [8] | WASHER-SPRING |
| 33 | 31YC-11081 | [2] | BUSHING-PIN |
| 34 | Y000-070200 | [4] | SEAL-DUST |
| 38 | 31YC-66031 | [1] | WASHER-LOCK |
| 39 | S112-080164 | [1] | SCREW-SET,HEX SOCKET |
| K. | 31Y1-18110 | [1] | SEAL KIT |
