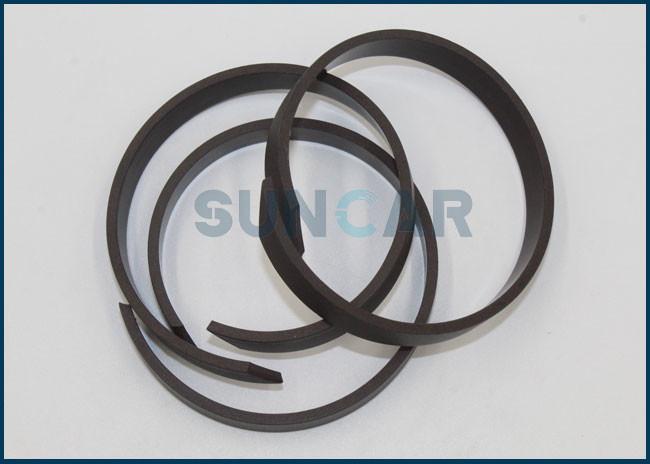

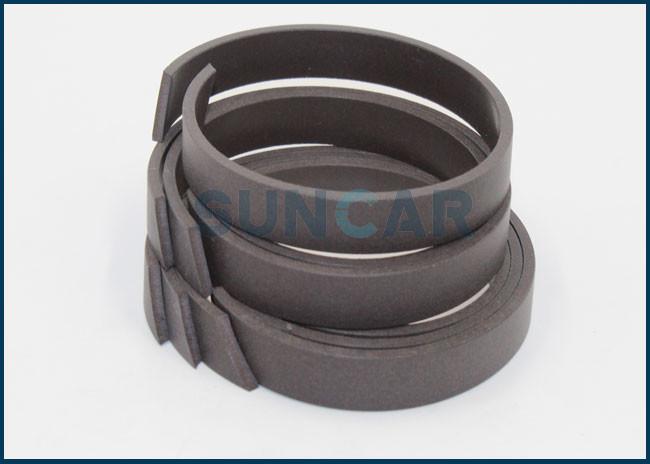

MWR RYT Wear Ring Guide Ring Wear Strip PTFE For Hydraulic Cylinder Piston
MWR RYT Wear Ring Guide Ring Wear Strip PTFE for Hydraulic Cylinder Piston
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Products Details :
| Product name | MWR RYT Wear Ring Guide Ring Wear Strip PTFE for Hydraulic Cylinder Piston |
| Brand | SUNCAR |
| Place original | Guangzhou,China |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| AppliC-A-Tion | Cylinder;Piston;Excavator |
| Style | Wear ring |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Wear strip ring;Hydraulic seal ring |
| Size | Standard size |
Design Standard:
ISO 9001
RYT Size:
| 40*45*6 | 55*60*15 |
| 45*50*6 | 60*65*15 |
| 50*55*6 | 65*70*15 |
| 55*60*6 | 70*75*15 |
| 60*65*6 | 75*80*15 |
| 65*70*6 | 80*85*15 |
| 70*75*6 | 85*90*15 |
| 75*80*6 | 90*95*15 |
| 80*85*6 | 95*100*15 |
| 85*90*6 | 100*105*15 |
| 90*95*6 | 105*110*15 |
| 95*100*6 | 110*115*15 |
| 100*105*6 | 115*120*15 |
| 80*85*7.9 | 120*125*15 |
| 85*90*7.9 | 125*130*15 |
| 90*95*7.9 | 130*135*15 |
| 95*100*7.9 | 135*140*15 |
| 100*105*7.9 | 140*145*15 |
| 105*110*7.9 | 145*150*15 |
| 110*115*7.9 | 150*155*15 |
| 120*125*7.9 | 155*160*15 |
| 125*130*7.9 | 160*165*15 |
| 130*135*7.9 | 165*170*15 |
| 135*140*7.9 | 170*175*15 |
| 35*40*9.5 | 175*180*15 |
| 40*50*9.5 | 180*185*15 |
| 45*50*9.5 | 70*75*20 |
| 50*55*9.5 | 130*135*20 |
| 55*60*9.5 | 135*140*20 |
| 58*63*9.5 | 140*145*20 |
| 60*65*9.5 | 150*155*20 |
| 65*70*9.5 | 130*135*25 |
| 70*75*9.5 | 135*140*25 |
| 75*80*9.5 | 140*145*25 |
| 80*85*9.5 | 150*155*25 |
| 85*90*9.5 | 140*145*9.5 |
| 90*95*9.5 | 145*150*9.5 |
| 95*100*9.5 | 150*155*9.5 |
| 100*105*9.5 | 155*160*9.5 |
| 105*110*9.5 | 160*165*9.5 |
| 110*115*9.5 | 40*45*15 |
| 115*120*9.5 | 45*50*15 |
| 120*125*9.5 | 50*55*15 |
| 125*130*9.5 | 135*140*9.5 |
| 130*135*9.5 |
SUNCAR Relative Hydraulic Seals:
| Oil seal | TC ;TB ;TCV ;TCN; DB ;DC; DCY ;TC4Y etc. |
| Piston seal |
SPGW ; SPGW2 ; SPGWV ; SPGO ; SPGA |
| Rod seal |
IDI;ISI ; IUIS ; IUH ; UNI;PTB(SKF);H605(HALLITE) |
| Piston and rod seal | UPI;USI;UPH;USH;V99F;V96H;UN;UHS;UNS |
| Back up ring | BRT-PTFE;BRT-NYLON;BRT2;BRT3 BRT-G;BRT-P;BRN2;BRN3 |
| O ring |
O-ring P series ;O-ring G series;O-ring AS series ; |
| Dust seal |
DKI;DWI;DWIR;DKBI;DKBI3;DKBZ;DKH; DKB;GA;DSI;LBI;LBH;LBHK; DSPB;DHS;FA;HBY;HBTS;HBTY;URE; |
