VOE 14552332 VOE14552332 Swing Motor Seal Kit For EC210B EC220D EC460B
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
VOE 14552332 VOE14552332 Swing Motor Seal Kit for EC210B EC220D EC460B
Description: This is a seal kit of hydraulic swivel joint,Hydraulic swivels, also known as center joint,hydraulic rotary swivels, rotary swivel joints and rotary unions, are precision components designed to transfer fluid from a stationary source to a rotating piece of machinery. Main features are oil resistance;heat resistance;anti-leak and so on.
| Product name | VOE 14552332 VOE14552332 Swing Motor Seal Kit for EC210B EC220D EC460B |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Fit brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Feuture |
Sealing oil |
| Feature | Heat resistance |
| Feature | Maintine life |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Part number | VOE 14552332 VOE14552332 |
| Cross number | 14529836 |
| Packing | OEM packing or neutral packing |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Temperature | NBR(-40~120°C) |
| Temperature | FKM(-20~320°C) |
| Temperature | PU(-40~90°C) |
| Temperature | Silicone (-70~220°C) |
| Original place | Guangdong,China |
| Hardness | 70-90 shore A |
| Shipping |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Avalibility |
Rich stock |
| Compatible equipment | Excavator;SUNCARSUNCARSUNCARSUNCARVOLVO |
| Loading port | Huangpu,China |
| Condition | 100% new |
AppliC-A-Ted Models:
| EC460B | EW240E | EW220E |
| EW205E | EC200D | EC210D |
| ECR235E | EC220E | EW205D |
| ECR235D | EC235D | EC220D |
| EC200B | EC460B | EC210B |
| PL4608 | PL4611 | FC2121C |
| ECR235C | FC2421C | EC235C |
| EC460C | EC210C | EC460B |

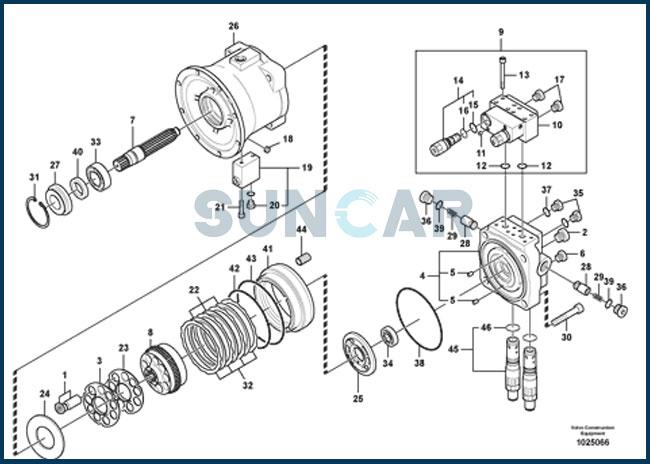

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14550092 | [1] | Swing motor | |
| VOE14550092 | [1] | Swing motor | |
| 1 | VOE14594933 | [1] | Piston |
| 2 | SA8230-26920 | [1] | Plastic plug |
| 3 | VOE14529771 | [1] | Plate |
| 4 | VOE14529838 | [1] | Casing |
| 5 | SA7223-00660 | [2] | Spring pin |
| 6 | VOE14529760 | [1] | Plug |
| 7 | VOE14529774 | [1] | Shaft |
| 8 | VOE14529773 | [1] | Cylinder |
| 9 | VOE14512958 | [1] | Block |
| VOE14552331 | [1] | Block | |
| 10 | VOE14512959 | [1] | Casing |
| VOE14552330 | [1] | Casing | |
| 11 | VOE14560637 | [4] | Plug |
| 12 | VOE990582 | [2] | O-ring |
| VOE14552329 | [2] | O-ring | |
| 13 | VOE14512960 | [6] | Screw |
| 14 | SA8230-36560 | [2] | Valve |
| 15 | VOE983509 | [1] | O-ring |
| 16 | VOE14625240 | [1] | Ring |
| 17 | SA8230-26920 | [2] | Plastic plug |
| 18 | VOE14529759 | [1] | Plug |
| 19 | VOE14511642 | [1] | Valve |
| VOE14562621 | [2] | Plug | |
| VOE983493 | [2] | O-ring | |
| VOE983503 | [1] | O-ring | |
| 20 | SA8230-33690 | [2] | Plug |
| 21 | VOE14511643 | [3] | Screw |
| 22 | VOE14529762 | [3] | Plate |
| 23 | VOE14529772 | [1] | Spring |
| 24 | VOE14529770 | [1] | Plate |
| 25 | VOE14529769 | [1] | Plate |
| 26 | VOE14529837 | [1] | Casing |
| 27 | VOE14529767 | [1] | Cover |
| VOE14552322 | [1] | Cover | |
| 28 | SA8230-14160 | [2] | Control plunger |
| 29 | SA8230-14150 | [2] | Spring |
| 30 | SA8230-25820 | [4] | Bolt |
| 31 | VOE14529766 | [1] | Ring |
| 32 | VOE14529761 | [4] | Plate |
| 33 | SA8230-26520 | [1] | Roller bearing |
| 34 | VOE14529765 | [1] | Bearing |
| 35 | SA8230-25640 | [2] | Plug |
| 36 | SA8230-25680 | [2] | Plug |
| 37 | VOE983502 | [2] | O-ring |
| 38 | VOE14552321 | [1] | O-ring |
| VOE14552321 | [1] | O-ring | |
| 39 | VOE983526 | [2] | O-ring |
| 40 | VOE14529764 | [1] | Seal |
| VOE14552320 | [1] | Seal | |
| 41 | VOE14512953 | [1] | Piston |
| 42 | VOE14693875 | [1] | O-ring |
| 43 | SA8230-25540 | [1] | O-ring |
| 44 | VOE14529763 | [20] | Spring |
| 45 | SA8230-36550 | [2] | Relief valve |
| 46 | VOE990582 | [2] | O-ring |
| 100 | VOE14529836 | [1] | Sealing kit |
| VOE14552332 | [1] | Sealing kit |
