VOE 14501803 VOE14501803 Swing Motor Seal Kit For SUNCARSUNCARVOLVO EC290B
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
VOE 14501803 VOE14501803 Swing Motor Seal Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC290B
Description: This is a sela kit for swing motor.Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.Our product conform to national production standards, using high-quality raw materials production.
| Product name | VOE 14501803 VOE14501803 Swing Motor Seal Kit for SUNCARSUNCARSUNCARSUNCARVOLVO EC290B |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Fit brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Feuture |
Sealing oil |
| Core components | Hydraulic motor;swing motor |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Part number | VOE 14501803 ; VOE14501803 |
| Packing | PP bag inside,carton box outside |
| AppliC-A-Tion | Excavator, SUNCARSUNCARSUNCARSUNCARVOLVO equipmet,Resell |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Temperature | NBR(-40~120°C) |
| Temperature | FKM(-20~320°C) |
| Temperature | PU(-40~90°C) |
| Temperature | Silicone (-70~220°C) |
| Original place | Guangdong,China |
| Hardness | 70-90 shore A |
| Shipping |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Avalibility |
Rich stock |
| Loading port | Huangpu,China |
| Condition | 100% new |

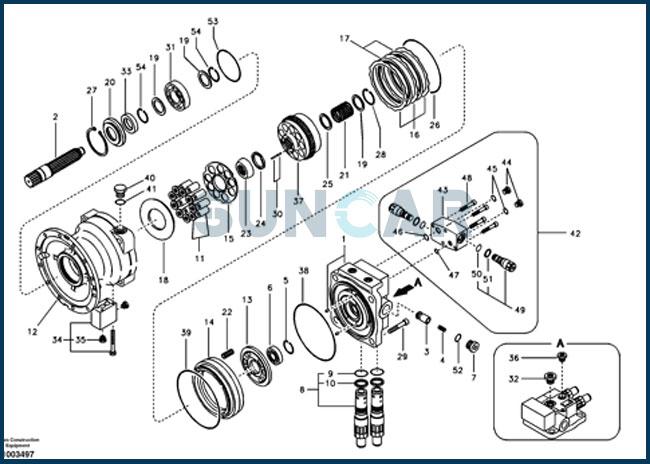

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14524190 | [1] | Swing motor | |
| 1 | VOE14501795 | [1] | Casing |
| VOE14501796 | [1] | Casing | |
| SA8230-25950 | [2] | Spring Pin | |
| 2 | VOE14501797 | [1] | Shaft |
| 3 | VOE14501798 | [2] | Plunger |
| 4 | VOE14501799 | [2] | Spring |
| 5 | VOE14501800 | [1] | Ring |
| 6 | VOE14501801 | [1] | Bearing |
| 7 | VOE14501802 | [2] | Plug |
| 8 | VOE14518516 | [2] | Relief valve |
| 9 | VOE990582 | [1] | O-ring |
| 10 | VOE14880837 | [1] | Back-up ring |
| 11 | VOE14612206 | [1] | Piston |
| VOE14501793 | [9] | Piston | |
| VOE14501794 | [9] | Seat | |
| 12 | SA8230-13610 | [1] | Casing |
| 13 | SA8230-13760 | [1] | Valve plate |
| 14 | SA8230-13820 | [1] | Piston |
| 15 | SA8230-13900 | [1] | Plate |
| 16 | SA8230-13910 | [3] | Plate |
| 17 | SA8230-13940 | [2] | Friction plate |
| 18 | SA8230-13980 | [1] | Brake Shoe |
| 19 | SA8230-14010 | [3] | Spacer |
| 20 | SA8230-14020 | [1] | Cover |
| 21 | SA8230-14030 | [1] | Spring |
| 22 | SA8230-14040 | [20] | Spring brake |
| 23 | SA8230-14050 | [1] | Bushing |
| 24 | SA8230-14060 | [1] | Spacer |
| 25 | SA8230-14070 | [1] | Spacer |
| 26 | SA8230-25551 | [1] | O-ring |
| 27 | SA8230-25690 | [1] | Ring |
| 28 | SA8230-25740 | [1] | Ring |
| 29 | SA8230-25820 | [4] | Bolt |
| 30 | SA8230-26390 | [12] | Bar |
| 31 | SA7241-00421 | [1] | Roller bearing |
| 32 | VOE14612219 | [1] | Plug |
| 33 | SA8220-15000 | [1] | Seal |
| 34 | SA8230-13440 | [1] | Valve |
| 35 | SA8230-33690 | [2] | Plug |
| 36 | SA8230-30430 | [1] | Plug |
| 37 | SA8230-32950 | [1] | Cylinder |
| 38 | SA8230-32990 | [1] | O-ring |
| 39 | SA8230-33960 | [1] | O-ring |
| 40 | VOE14883837 | [1] | Plug |
| 41 | VOE983502 | [1] | O-ring |
| 42 | SA8230-27360 | [1] | Block |
| 43 | SA8230-29070 | [1] | Casing |
| 44 | SA8230-25640 | [2] | Plug |
| 45 | VOE983502 | [2] | O-ring |
| 46 | VOE14529757 | [2] | O-ring |
| 47 | VOE14533603 | [2] | O-ring |
| 48 | SA8240-03610 | [4] | Screw |
| 49 | VOE14684415 | [2] | Valve |
| 50 | VOE983509 | [1] | O-ring |
| 51 | VOE14625240 | [1] | Ring |
| 52 | VOE983530 | [2] | O-ring |
| 53 | VOE990596 | [1] | O-ring |
| 54 | VOE914470 | [2] | Snap ring |
| 100 | VOE14501803 | [1] | Seal |
