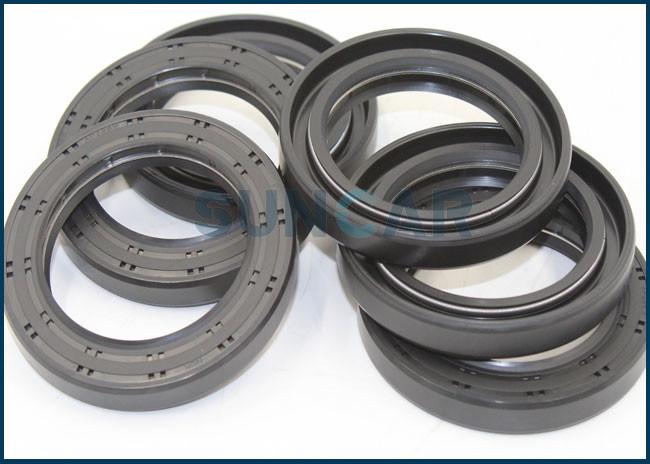

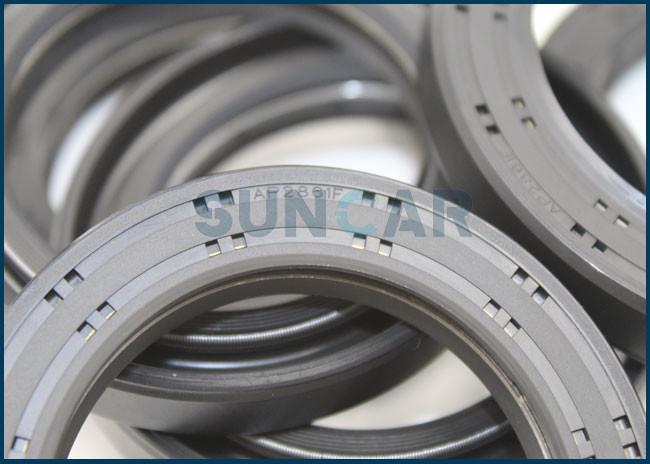

AP2861F TCZ Type Oil Seal Shaft Seal Lip Hydraulic Motor Pump Excavator Repair Parts
AP2861F TCZ Type Oil Seal Shaft Seal Lip Hydraulic Motor Pump Excavator Repair Parts
Description: TCZ type oil seal
Products Details :
| Product name | AP2861F TCZ Type Oil Seal Shaft Seal Lip Hydraulic Motor Pump Excavator Repair Parts |
| Part number | AP2861F |
| Lip material | NBR 795 |
| Type | TCZ oil seal |
| AppliC-A-Tion | Transmission;excavator;pump;resell store |
| Material |
NBR A727 |
| Place original | Guangzhou,China |
| Temp. | -40°C ~+150 °C |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Attaching method | From only the shaft end |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
TCZ Type Oil Seal Sizes:( standard oil seal)
| Shatt diameter | Outsidle diameler | Width | Total width | Size of backup plate |
| d | D | b | B | K |
| 20 | 40 | 9 | 10.3 | 24 |
| 25 | 45 | 9 | 10.3 | 29 |
| 30 | 50 | 9 | 10.3 | 34 |
| 35 | 55 | 9 | 10.3 | 39 |
| 40 | 62 | 9 | 10.3 | 44 |
| 45 | 68 | 9 | 10.3 | 49 |
| 50 | 72 | 9 | 10.3 | 54 |
| 55 | 78 | 9 | 10.3 | 59 |
| 60 | 82 | 9 | 10.3 | 64 |
| 65 | 90 | 9 | 10.3 | 69 |
Part Number:
AP1031FO
AP1336FO
AP1706G0
AP2083F0
BP3590F0
AP2666G0
AP2861GO
AP3053FO
AP3220F0
BP3054G0
Oil Seal Features:
1. Ozone resistance and chemical resistance
2. High temperature resistance
3. Excellent weather resistance
4. Anti-aging, good flexibility
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
