China 0682325 TCV Type Oil Seal Use In Pump Piston For HITACHI EX1200-5D for sale

0682325 TCV Type Oil Seal Use In Pump Piston For HITACHI EX1200-5D

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

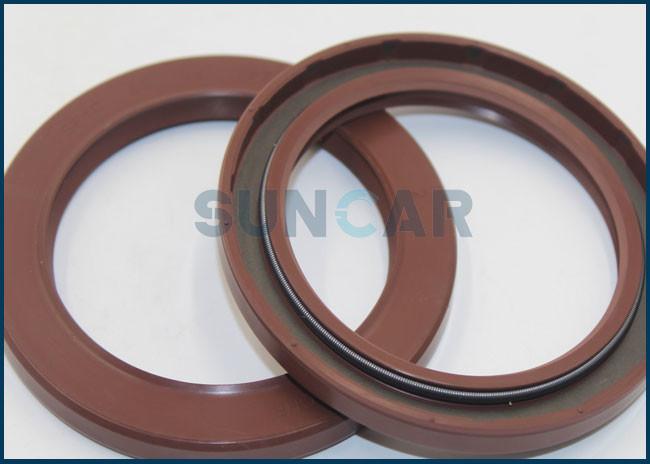

0682325 TCV Type Oil Seal Use in Pump Piston for HITACHI EX1200-5D

Description: The TCV oil seal is a mechanical component used to seal oil. TCV skeleton oil seal isolates the parts of the transmission component that need to be lubriC-A-Ted from the output components so that lubriC-A-Tion and leakage are not allowed.

Products Details :

Product name	0682325 TCV Type Oil Seal Use in Pump Piston for HITACHI EX1200-5D
Part number	AP2861F
Lip material	NBR 795
Type	TCZ oil seal
AppliC-A-Tion	Transmission;excavator;pump;piston;resell store
Material	NBR A727
Place original	Guangzhou,China
Temp.	-35~250℃
Max speed	≤25m/s
Loading port	Huangpu port,China
Payment	L/C, D/A, D/P, T/T, Western Union,
Sealing subject liquid	Lubricant
Attaching method	From only the shaft end
Dust lip	Presence
Style	Oil seal
Medium	hydraulic oil, flame retardant liquid, water and others
Type	Hydraulic seal ring
Size	Standard size

Compatible Models:

EH5000AC-3	EX1100-3	EX1200-5	EX1200-5C
EX1200-5D	EX1200-6	EX1800-3	EX2500
EX2500-5	EX2500-6	EX2600-6BH	EX2600-6LD
EX3600-5	EX3600-6	EX3600E-6	EX5500
EX5500-5	EX5500-6	EX5600-6BH	EX5600-6LD
EX750-5	EX8000	EX800H-5	ZX600
ZX650H	ZX650LC-3	ZX670LCH-3	ZX800
ZX850-3F	ZX850H	ZX870H-3	ZX870H-3F
ZX870R-3	ZX870R-3F

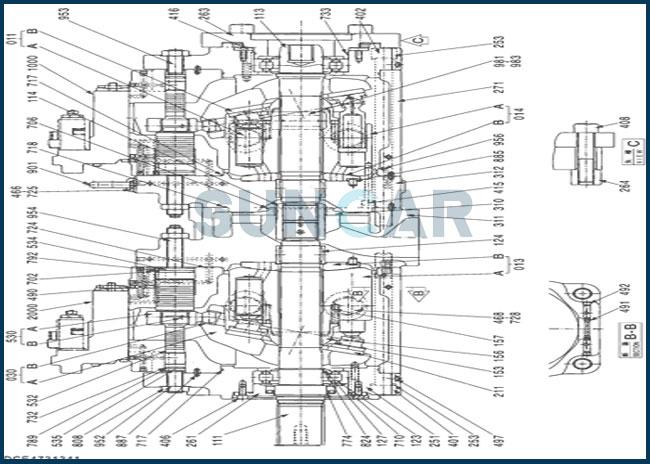

Relative Parts:

Pos.	Part No	Qty	Parts name
	4731341	[1]	PUMP;PISTON
11	838201	[2]	PISTON
011A.	++++++++++	[18]	PISTON
011B.	++++++++++	[18]	SHOE
13	XB00004017	[1]	CYL.
013A.	++++++++++	[1]	BLOCK;CYL.
013B.	++++++++++	[1]	PLATE;VALVE
14	XB00004019	[1]	CYL.
014A.	++++++++++	[1]	BLOCK;CYL.
014B.	++++++++++	[1]	PLATE;VALVE
30	694501	[2]	PLATE
030A.	++++++++++	[2]	PLATE
030B.	++++++++++	[2]	BUSHING
111	XB00004022	[1]	SHAFT
113	XB00004023	[1]	SHAFT
114	703008	[1]	COUPLING
123	682302	[2]	BRG.;ROL.
124	800701	[2]	BRG.;NEEDLE
127	339809	[4]	SPACER
130	703010	[1]	BOOSTER
153	718002	[2]	RETAINER
156	828401	[2]	BUSHING
157	682307	[18]	SPRING
211	682309	[2]	PLATE
251	XB00000804	[2]	SUPPORT
253	737002	[8]	WASHER
261	682311	[1]	COVER
263	XB00004024	[1]	PLATE
264	XB00004025	[4]	BLOCK
271	800703	[2]	CASING
311	703014	[1]	COVER;VALVE
312	800704	[1]	COVER;VALVE
401	682316	[4]	BOLT;SOCKET
402	703016	[4]	BOLT;SOCKET
406	M340820	[4]	BOLT;SOCKET
408	308616	[4]	BOLT;SOCKET
415	116621	[2]	BOLT;SOCKET
416	800705	[4]	BOLT;SOCKET
466	236014	[2]	PLUG
468	195165	[6]	PLUG
490	934502	[23]	PLUG
491	451027	[4]	SCREW
492	934503	[5]	PLUG
497	XB00000799	[8]	PLUG
530	800706	[2]	PIN
530A.	++++++++++	[2]	PIN
530B.	++++++++++	[2]	PIN
532	800707	[2]	PISTON;SERVO
534	682319	[2]	STOPPER
535	682320	[2]	STOPPER
702	4375067	[2]	O-RING
706	703018	[1]	O-RING
710	682321	[1]	O-RING
717	682322	[4]	O-RING
718	703019	[1]	O-RING
724	XB00001232	[19]	O-RING
725	XB00001231	[2]	O-RING
728	443408	[6]	O-RING
732	682324	[2]	O-RING
733	XB00004030	[1]	O-RING
774	682325	[1]	SEAL;OIL
789	694503	[2]	RING;BACK-UP
792	682327	[2]	RING;BACK-UP
808	451038	[4]	NUT
824	XB00004026	[2]	RING;RETAINING
885	313404	[2]	PIN
887	XB00004027	[5]	PIN;SPRING
901	XB00004028	[2]	BOLT;EYE
952	339847	[1]	SCREW
953	XB00004029	[1]	SCREW;SET
954	682328	[2]	SCREW;SET
956	800708	[8]	SCREW;SET
981	XB00000800	[1]	NAME-PLATE
983	XB00001134	[2]	PIN
1000	YA00005514	[1]	REGULATOR
2000	YA00005515	[1]	REGULATOR
