XKAQ-00087 TCN Oil Seal Shaft Seal For HYUNDAI Excavator R140W7
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Product Description

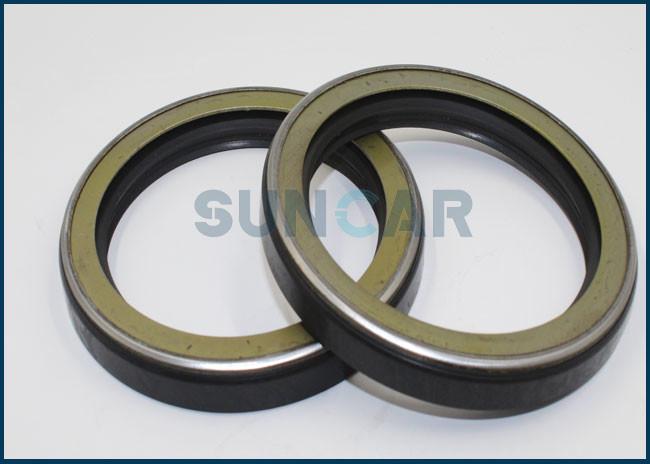

XKAQ-00087 TCN Oil Seal Shaft Seal for HYUNDAI Excavator R140W7
TCN Oil Seal Property:
1. Ozone and chemical resistance
2. High temperature resistance
3. Anti-aging,good flexibility
4. Acid resistance, weathering resistance
5. abrasion resistance
Products Details :
| Product name | XKAQ-00087 TCN Oil Seal Shaft Seal for HYUNDAI Excavator R140W7 |
| Part number | XKAQ-00087 |
| Lip material | NBR 795 |
| Type | TCN oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR A727 |
| Features | 1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. 6. Double mouths prevent dust pollution. 7. Easy to install |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
AppliC-A-Tion Models:
| 7 series wheel excavator | R140W7 R140W7A |
| 7-series crawler excavator |
R110-7 R110-7A R140LC-7 R140LC-7A RD110-7 |
| 9-series crawler excavator |
R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9 |
| 9-series wheel excavator | R140W9 R140W9A R140W9S |
| F-series crawler excavator | HX140L |
| F-series wheel excavator | HW140 Hyundai |
Relative Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31K4-12260 | [1] | SWING MOTOR ASSY |
| *-2. | 31Q4-11142AR | [1] | SWING REDUCTION GEAR |
| 1 | XKAQ-00511 | [1] | CASING |
| 2 | XKAQ-00512 | [1] | SHAFT-DRIVE |
| 3 | XKAQ-00513 | [1] | PLATE-COVER |
| 4 | XKAQ-00514 | [1] | SPACER |
| 5 | XKAQ-00515 | [1] | BEARING-SPH ROLLER |
| 6 | XKAQ-00089 | [1] | BEARING-CYL ROLLER |
| 7 | XKAQ-00087 | [1] | SEAL-OIL |
| 8 | XKAQ-00809 | [1] | CARRIER ASSY 2 |
| 9 | XKAQ-00516 | [1] | CARRIER 2 |
| 10 | XKAQ-00810 | [4] | GEAR-PLANET 2 |
| 11 | XKAQ-00811 | [4] | PIN ASSY 2 |
| N12. | XKAQ-00812 | [1] | PIN 2 |
| N13. | XKAQ-00813 | [1] | BUSHING 2 |
| 21 | XKAQ-00093 | [4] | WASHER-THRUST(B) |
| 22 | XKAQ-00086 | [4] | PIN-SPRING |
| 14 | XKAQ-00519 | [1] | GEAR-SUN 2 |
| 15 | XKAQ-00814 | [1] | CARRIER ASSY 1 |
| 16 | XKAQ-00520 | [1] | CARRIER 1 |
| 17 | XKAQ-00815 | [3] | GEAR-PLANET 1 |
| 18 | XKAQ-00816 | [3] | PIN ASSY 1 |
| N19. | XKAQ-00817 | [1] | PIN 1 |
| N20. | XKAQ-00818 | [1] | BUSHING 1 |
| 21 | XKAQ-00093 | [3] | WASHER-THRUST(B) |
| 22 | XKAQ-00086 | [3] | PIN-SPRING |
| 23 | XKAQ-00085 | [3] | RING-STOP |
| 24 | XKAQ-00523 | [1] | GEAR-SUN 1 |
| 25 | XKAQ-00084 | [1] | RING-STOP |
| 26 | XKAQ-00524 | [1] | PLATE-SIDE 1 |
| 27 | XKAQ-00782 | [1] | GEAR-RING |
| 28 | XKAQ-00091 | [4] | PIN-KNOCK |
| 29 | XKAQ-00526 | [9] | BOLT-HEX |
| 30 | XKAQ-00527 | [10] | BOLT-SOCKET |
| 31 | XKAQ-00049 | [1] | PLUG |
| 32 | XKAQ-00066 | [2] | PLUG |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
