China 4395197 706-8J-41620 TCN Oil Seal Shaft Seal For HITACHI EG40R KOMATSU PC2000 for sale

4395197 706-8J-41620 TCN Oil Seal Shaft Seal For HITACHI EG40R KOMATSU PC2000

Name: 4395197 706-8J-41620 TCN Oil Seal Shaft Seal For HITACHI EG40R KOMATSU PC2000
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Product Description

XKAQ-00087 TCN Oil Seal Shaft Seal for HYUNDAI Excavator R140W7

TCN Oil Seal Property:

1. Ozone and chemical resistance
2. High temperature resistance
3. Anti-aging,good flexibility
4. Acid resistance, weathering resistance
5. abrasion resistance

Products Details :

Product name	XKAQ-00087 TCN Oil Seal Shaft Seal for HYUNDAI Excavator R140W7
Part number	XKAQ-00087
Lip material	NBR 795
Type	TCN oil seal
AppliC-A-Tion	Transmission;excavator;piston;resell store;Hydraulic pump/motor
Material	NBR A727
Features	1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. 6. Double mouths prevent dust pollution. 7. Easy to install
Place original	Guangzhou,China
Temp.	-40℃~+120℃
Max speed	≤25m/s
Loading port	Huangpu port,China
Payment	L/C, D/A, D/P, T/T, Western Union,
Sealing subject liquid	Lubricant
Dust lip	Presence
Style	Oil seal
Medium	hydraulic oil, flame retardant liquid, water and others
Type	Hydraulic seal ring
Size	Standard size

AppliC-A-Tion Models:

EG40R	EX75US-5
EX60-5(LC)	EG70R-3
EG70R	HITACHI
ZX85US-HCME	ZX80SB-HCME
EX75URT-5	EX75UR-5
EX70LCK-5	EX60BUN-5
ZX80LCK	ZX75UR
ZX75UR-3	ZX75URT
ZX70B	ZX70-HHE
ZX70	EX80U

TCN Oil Seals:

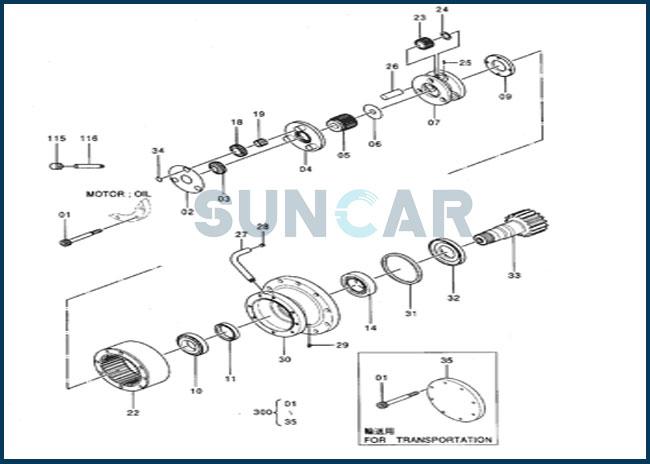

Relative Parts:

Pos.	Part No	Qty	Parts name
	4398053	[1]	T.MISSION
1	M341403	[8]	BOLT;SOCKET
2	4397235	[1]	PLATE
3	4397236	[1]	GEAR;SUN
4	4397246	[1]	CARRIER
5	4397237	[1]	GEAR;SUN
6	4397238	[1]	PLATE;THRUST
7	4397239	[1]	CARRIER
9	4397240	[1]	NUT
10	4397241	[1]	BRG.;ROL.
11	4395197	[1]	SEAL;OIL
14	4397242	[1]	BRG.;ROL.
18	4397244	[3]	GEAR;PLANETARY
19	4397245	[3]	BRG.;NEEDLE
22	4397247	[1]	GEAR;RING
23	4397248	[3]	GEAR;PLANETARY
24	4267081	[3]	PLATE;THRUST
25	4134502	[3]	PIN;SPRING
26	4397249	[3]	PIN
27	4397250	[1]	PIPE;DRAIN
28	94-2012	[1]	PLUG
29	94-2010	[2]	PLUG
30	4397251	[1]	HOUSING
31	4397252	[1]	SEAL;DUST
32	4397253	[1]	GUIDE
33	4397254	[1]	SHAFT;PROP.
34	942517	[3]	RING;RETAINING
35	4397255	[1]	COVER
115	4397243	[1]	CAP
116	4255227	[1]	PIPE
300	4397256	[1]	SWING DEVICE

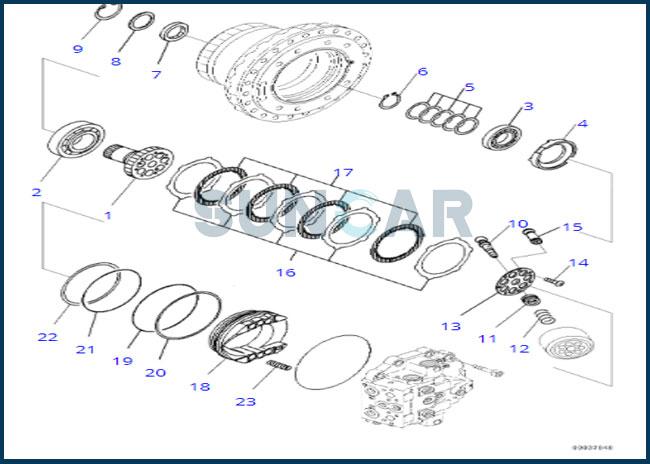

KOMATSU:

Pos.	Part No	Qty	Parts name
	208-27-00312	[2]	Final Drive
	208-27-00311	[2]	Final Drive
	208-27-00243	[2]	Final Drive
	706-8J-01030	[1]	Motor Assembly
	706-8J-01012	[1]	Motor Assembly
1	706-8J-41610	[1]	Shaft, Drive, Drive
2	706-8J-41010	[1]	Bearing
3	706-77-42890	[1]	Bearing
4	706-8J-41810	[1]	Retainer
5	706-8J-41660	[1]	Spacer Kit
6	04064-06525	[1]	Ring, Snap, for Shaft Side
7	706-8J-41620	[1]	Seal, Oil
8	706-8J-41820	[1]	Spacer
9	04065-09030	[1]	Ring, Snap
10	706-8J-41280	[1]	Shaft
11	706-8J-41270	[1]	Ring
12	706-8J-41290	[1]	Spring
13	706-8J-41260	[1]	Retainer
14	708-23-12350	[7]	Screw
15	706-8J-42170	[7]	Piston
15	706-8J-41161	[7]	Piston
16	706-7K-91340	[5]	Plate
17	706-7K-91350	[4]	Disc
18	706-8J-91110	[1]	Piston
19	07000-15230	[1]	O-ring
20	07001-05230	[1]	Ring, Back-up
21	708-8H-15220	[1]	O-ring
22	706-8J-91120	[1]	Ring, Back-up
23	706-8J-91130	[6]	Spring
