4416076 DB Type Oil Seal For Swing Device HITACHI Excavator EX200-5 RX2300
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Product Description
4416076 Oil Seal for Swing Device HITACHI Excavator EX200-5 RX2300.
SWING DEVICE OIL SEAL FOR HITACHI EXCAVATOR.
REPLACEMENT PART NUMBER 4416076
Products Details :
| Product name | 4416076 Oil Seal for Swing Device HITACHI Excavator EX200-5 RX2300 |
| Part number | 4416076 |
| Lip material | NBR 795 |
| Type | Oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR A727 |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal |
Fits Models:
| EX150LC-5 | EX200-5 | EX200-5JPN | EX200-5HHE |
| EX200SS-5 | EX200-5ZJPN | EX200-5LVJAP | EX200-5HG |
| EX210H-5 | EX210LC-5HHE | RX2300 | EX225USRK(LC) |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

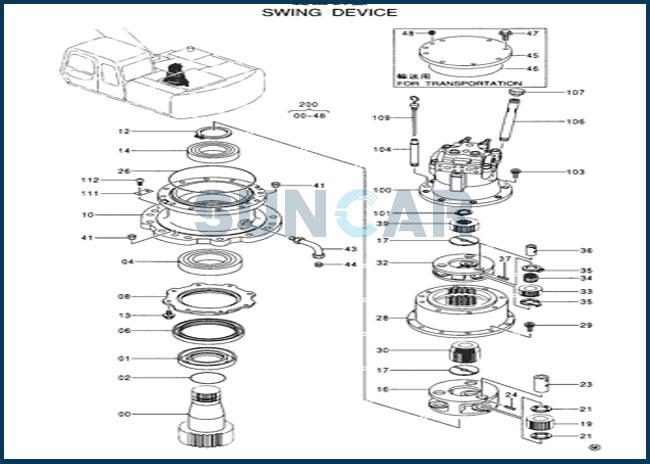

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | 2036775 | [1] | SHAFT;PROP. |
| 1 | 3045362 | [1] | SLEEVE |
| 2 | A811120 | [1] | O-RING |
| 4 | 4281798 | [1] | BRG.;SPH.ROL. |
| 6 | 4246275 | [1] | SEAL;OIL |
| 6 | 4416076 | [1] | SEAL;OIL |
| 8 | 3060672 | [1] | COVER |
| 10 | 1020333 | [1] | HOUSING |
| 12 | 991352 | [1] | RING;RETAINING |
| 13 | J011240 | [8] | BOLT;SEMS |
| 14 | 4364756 | [1] | BRG.;SPH.ROL. |
| 16 | 1020329 | [1] | CARRIER |
| 17 | 4176073 | [2] | PLATE;THRUST |
| 19 | 9742777 | [3] | GEAR;PLANETARY |
| 21 | 4266933 | [6] | PLATE;THRUST |
| 23 | 4336925 | [3] | PIN |
| 24 | 4027427 | [3] | PIN;SPRING |
| 26 | 4337206 | [1] | O-RING |
| 28 | 1019790 | [1] | GEAR;RING |
| 29 | M341645 | [12] | BOLT;SOCKET |
| 30 | 3069514 | [1] | GEAR;SUN |
| 32 | 1020328 | [1] | CARRIER |
| 33 | 3069510 | [3] | GEAR;PLANETARY |
| 34 | 4336945 | [3] | BRG.;NEEDLE |
| 35 | 4336926 | [6] | PLATE;THRUST |
| 36 | 4336923 | [3] | PIN |
| 37 | 4051262 | [3] | PIN;SPRING |
| 39 | 3069512 | [1] | GEAR;SUN |
| 41 | 425176 | [2] | CORK |
| 43 | 8060496 | [1] | PIPE |
| 44 | 94-2013 | [1] | PLUG |
| 45 | 8035414 | [1] | COVER |
| 46 | 4245190 | [1] | O-RING |
| 47 | J011250 | [8] | BOLT;SEMS |
| 48 | 94-2011 | [1] | PLUG |
| 100 | 4367036 | [1] | MOTOR;OIL |
| 101 | 962002 | [1] | RING;RETAINING |
| 103 | M341228 | [8] | BOLT;SOCKET |
| 104 | 4264452 | [1] | PIPE |
| 106 | 4332658 | [1] | PIPE |
| 107 | 4343365 | [1] | CAP |
| 109 | 3074223 | [1] | GAUGE;LEVEL |
| 111 | 3053093 | [1] | NAME-PLATE |
| 112 | M492564 | [2] | SCREW;DRIVE |
| 200 | 9148922 | [1] | SWING DEVICE |
