AW3222E DC Oil Seal Double Spring Standard Hydraulic Rotary Shaft Seals
AW3222E DC Type Oil Seal Hydraulic Replacement Rotary Shaft Seals

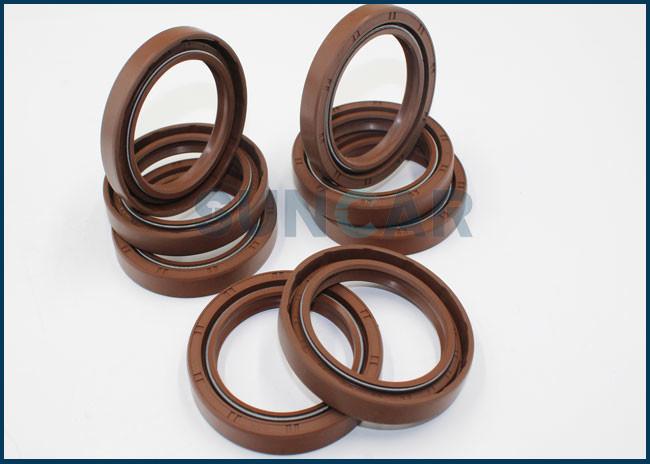

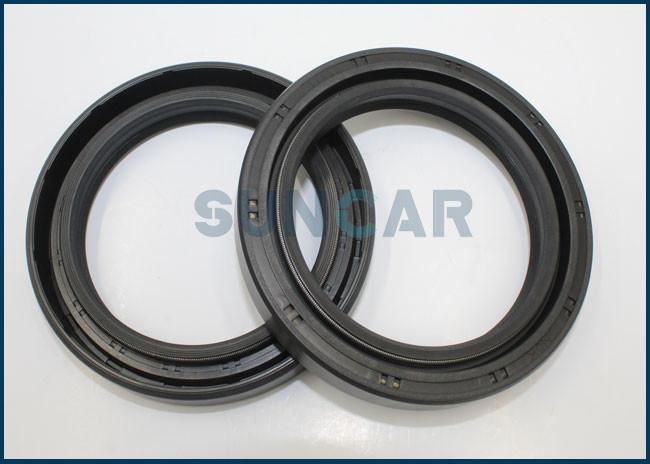

Description: The DC profile is a shaft seal composed of a single metal cage with a rubber coating and a double primary sealing lip with integrated springs to separate fluids.
Products Details :
| Product name | AW3222E DC Type Oil Seal Hydraulic Replacement Rotary Shaft Seals |
| OEM number | AW3222E |
| Material | NBR |
| Material | FKM |
| Temp. | FKM(-20°C~200°C) |
| Temp. | NBR(-40°C~120°C) |
| Place original | Guangzhou,China |
| AppliC-A-Tion | Pump ; Hydraulic machine rotary shaft |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Style | Oil seal |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal |
Sizes of DC Type Oil Seal:
| 60*82*12 | 20*35*10 | 22*40*10 | 65*90*13 |
| 55*78*12 | 35*55*11 | 70*92*15 | 70*92*14 |
Advantages:
Very good static sealing
Very good thermal expansion compensation
Greater roughness is allowed in the housing
Reduced risk of corrosion
Sealing for low and high viscosity fluids
Modern sealing lips with low radial forces
Fluid separation system
AppliC-A-Tions:
All types of rotative appliC-A-Tions
Machine tools
Agriculture
Construction
Transmission
Gear boxes
Motors
Pumps
DC Type Oil Seal Materials:
Rubber
ACM 70 - 75 Shore A
EPDM 70 - 75 Shore A
FKM 70 - 75 Shore A
HNBR 70 - 75 Shore A
NBR 70 - 75 Shore A
DC Oil Seal Size:
Welcome to contact Us for produce
| DC 20x30x10 | DC 8x16x10 | DC 55x68x12 |
| DC 20x35x7 | DC 10x20x8 | DC 55x70x15 |
| DC 20x35x8 | DC 10x21x9 | DC 55x78x12 |
| DC 20x35x10 | DC 10x22x8 | DC 55x80x10 |
| DC 20x36x10 | DC 10x24x8 | DC 55x90x10 |
| DC 20x40x7 | DC 10x26x9 | DC 60x80x10 |
| DC 20x40x8 | DC 11x21x8 | DC 65x80x8 |
| DC 20x40x10 | DC 12x20x7 | DC 67x84x9 |
| DC 20x47x7 | DC 12x22x8 | DC 67x100x10 |
| DC 22x35x7 | DC 12x24x8 | DC 68x90x13 |
| DC 22x40x7 | DC 12x28x8 | DC 70x90x10 |
| DC 22x40x8,5 | DC 13x26x10 | DC 70x95x10 |
| DC 22x40x10 | DC 14x26x9,5 | DC 75x95x10 |
| DC 25x35x7 | DC 14x32x7 | DC 75x105x12 |
| DC 25x35x8 | DC 15x24x7 | DC 80x100x10 |
| DC 25x35x10 | DC 15x28x10 | DC 80x100x12 |
| DC 25x37x7 | DC 15x30x7 | DC 80x105x12 |
| DC 25x38x8 | DC 15x32x7 | DC 95x120x12 |
| DC 25x40x8 | DC 16x30x7 | DC 95x125x13 |
| DC 25x40x9 | DC 17x28x7 | DC 100x127x12,7 |
| DC 25x40x10 | DC 17x28x8 | DC 100x130x13 |
| DC 25x40x12 | DC 17x30x7 | DC 105x130x12 |
| DC 25x45x10 | DC 17x30x9 | DC 125x150x13 |
| DC 25x47x8 | DC 17x32x8 | DC 170x200x15 |
| DC 25x47x10 | DC 17x40x7 | DC 36x48x11 |
| DC 25x52x8 | DC 18x30x7 | DC 38x64x11 |
| DC 25x52x9 | DC 18x32x7 | DC 39x70x11 |
| DC 26x47x8 | DC 19x32x7 | DC 40x55x7 |
| DC 26x52x8 | DC 40x62x10 | DC 40x60x10 |
| DC 27x36x10 | DC 42x58x12 | DC 32x48x8 |
| DC 28x40x8 | DC 42x62x11 | DC 50x68x8 |
| DC 28x47x8 | DC 42x64x12 | DC 50x72x12 |
| DC 28x56x8 | DC 42x65x11 | DC 52x75x12 |
| DC 29x45x7 | DC 45x62x8 | DC 54x76x14 |
| DC 30x40x10 | DC 45x62x11 | DC 35x50x11 |
| DC 30x42x7 | DC 45x65x8 | DC 35x52x12 |
| DC 30x47x10 | DC 48x72x10 | DC 35x60x10 |
| DC 30x50x10 | DC 48x72x11 | DC 48x72x15 |
| DC 30x62x7 | DC 32x52x7 | DC 32x47x12 |
| DC 31x58x8 | DC 33x45x8 | DC 50x65x8 |
| DC 32x44x8 | DC 34x70x11 | DC 35x44x7 |
