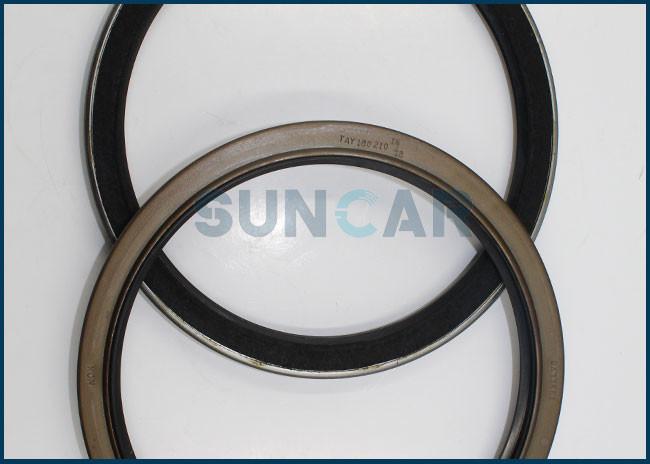

4198921 4250325 Oil Seal For Swing Device HITACHI Excavator EX100 EX120
4198921 4250325 Oil Seal for Swing Device HITACHI Excavator EX100 EX120
Description: Oil seal appliC-A-Ted in motor,pump,swing device,excavator parts and so on.Oil seals are used to protect shafts and bearings from ingress of dirt and foreign matter and egress of oil or grease. An oil seal generally consists of an outer circular metal part and an inner flexible member that does the actual sealing and is bonded to the metal part by chemical adhesive agents.
Products Details :
| Product name | 4198921 4250325 Oil Seal for Swing Device HITACHI Excavator EX100 EX120 |
| Material | NBR |
| Part number | 4198921 |
| Cross number | 4250325 |
| Temp. | -40~120°C |
| Relative sizes | Standard size |
| Relatice oil seals |
TC ; TCK ; TN ; SC ; SB ; MG ; TCN ; KC ; KB ; TC4 ; TB4 ; OKC3 ; MOD ; MOX ; MOY ; VAJ ; TCJ ; SCN ; TCN2 etc. |
| Place original | Guangzhou,China |
| Advantages |
The resistance against oil and fuels is better than other types; The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbon; Exccllcent hC-A-T resistance; Exccllcent weather and ozonc resistance; Exccllcent acid resistance; Low swelling in water. |
| AppliC-A-Tion |
All types of rotative appliC-A-Tions; Machine tools;Agriculture |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal;BABSL/BAUM5SLX7 CFW oil seal |
Compatible Models:
| EX100 | EX100M |
| EX100W | EX100WD |
| EX120 | EX90 |

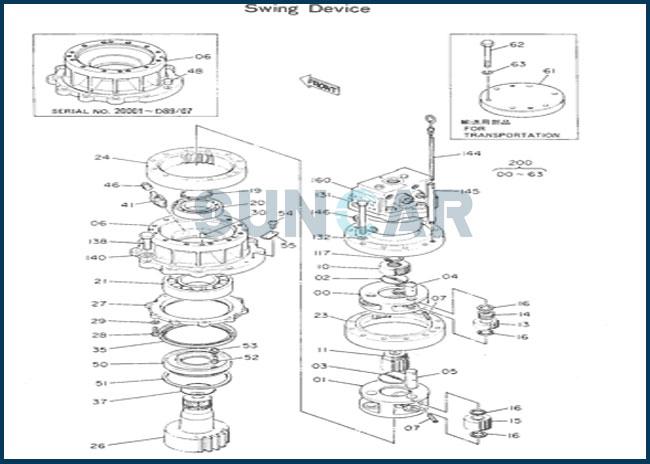

Relative Part Numbers:
| Pos. | Part No | Qty | Parts name |
| 0 | 2023962 | [1] | CARRIER |
| 1 | 2023965 | [1] | CARRIER |
| 1 | 2023965 | [1] | CARRIER |
| 1 | 2023965 | [1] | CARRIER |
| 1 | 2023965 | [1] | CARRIER |
| 1 | 2024894 | [1] | CARRIER |
| 2 | 4176070 | [1] | PLATE;THRUST |
| 3 | 4195372 | [1] | PLATE;THRUST |
| 4 | 4186262 | [3] | PIN |
| 5 | 4177855 | [3] | PIN |
| 5 | 4207801 | [3] | PIN |
| 6 | 1010887 | [1] | HOUSING |
| 6 | 1015518 | [1] | HOUSING |
| 7 | 4063351 | [6] | PIN;SPRING |
| 10 | 3037606 | [1] | GEAR;SUN |
| 11 | 3037607 | [1] | GEAR;SUN |
| 11 | 3038482 | [1] | GEAR;SUN |
| 13 | 3037605 | [3] | GEAR;PLANETARY |
| 14 | 4184840 | [3] | BRG.;NEEDLE |
| 15 | 9727159 | [3] | GEAR;PLANETARY |
| 16 | 4176071 | [12] | PLATE;THRUST |
| 19 | 991350 | [1] | RING;RETAINING |
| 20 | 969154 | [1] | BRG.;SPH.ROL. |
| 21 | 4001398 | [1] | BRG.;SPH.ROL. |
| 23 | 2023964 | [1] | GEAR;INTERNAL |
| 23 | 2024895 | [1] | GEAR;INTERNAL |
| 24 | 2023961 | [1] | GEAR;INTERNAL |
| 26 | 2023963 | [1] | SHAFT;PROP. |
| 27 | 3037604 | [1] | COVER |
| 28 | J901032 | [10] | BOLT |
| 29 | A590910 | [10] | WASHER;SPRING |
| 30 | J401232 | [2] | PIN;KNOCK |
| 35 | 4198921 | [1] | SEAL;OIL |
| 35 | 4250325 | [1] | SEAL;OIL |
| 37 | A811095 | [1] | O-RING |
| 41 | 4194712 | [1] | COCK |
| 46 | 94-2024 | [1] | PLUG |
| 48 | 456336 | [2] | CORK |
| 50 | 3038685 | [1] | SLEEVE |
| 51 | 4204074 | [1] | RING;RETAINING |
| 52 | 4204644 | [2] | MAGNET |
| 53 | 4204645 | [2] | SCREW |
| 54 | M492564 | [2] | SCREW;DRIVE |
| 55 | 3053093 | [1] | NAME-PLATE |
| 61 | 8049278 | [1] | COVER |
| 62 | J901412 | [6] | BOLT |
| 63 | A590914 | [6] | WASHER;SPRING |
| 117 | 991342 | [1] | RING;RETAINING |
| 131 | J901412 | [12] | BOLT |
| 132 | A590914 | [12] | WASHER;SPRING |
| 138 | J932065 | [10] | BOLT |
| 140 | 4018545 | [10] | WASHER |
| 144 | 3035979 | [1] | GAUGE;LEVEL |
| 144 | 3043290 | [1] | GAUGE;LEVEL |
| 145 | 4191881 | [1] | PIPE |
| 145 | 4228687 | [1] | PIPE |
| 146 | 94-2024 | [1] | PLUG |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4199024 | [1] | MOTOR;OIL |
| 160 | 4224917 | [1] | MOTOR;OIL |
| 200 | 9097684 | [1] | SWING DEVICE(WITHOUT MOTOR) |
