20G-30-K2111 20G30K2111 Swivel Joint Seal Kit For KOMATSU PW150ES-6K
20G-30-K2111 20G30K2111 Swivel Joint Seal Kit for KOMATSU PW150ES-6K
Description: Swivel joints are precision components for the connection between stationary pipes (or hoses) and rotating parts of machines. The function is the transport of gaseous, liquid or semi-solid substances (e.g. oil, steam, cooling liquids) from and to machines.This seal kit is swivel joint seal kit,also named center joint seal kit,turning joint seal kit.
| Product name | 20G-30-K2111 20G30K2111 Swivel Joint Seal Kit for KOMATSU PW150ES-6K |
| Brand name | SUNCAR |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 20G-30-K2111 20G30K2111 |
| Fits models | PW130ES-6K ; PW170ES-6K ; |
| MOQ | 10 sets/Accept trial order |
| Function |
Prevents oil from leaking and maintains power |
| Features | Oil resistance;Sealing oil |
| Quality | JAPAN |
| Payment | L/C, Paypal,T/T, Western Union, ,Bank transfer |
| Temp. | NBR(-40~120°C) |
| Temp. | FFKM(-20~320°C) |
| Temp. | PU(-40~90°C) |
| AppliC-A-Tion | Travel motor;Resell |
| Paking | PP bag inside,carton box outside. |
| Make up | Seal oil,O-Ring |
| Supply ablity | 550 pcs per weak |
| Original place | Guangdong province,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Rich |
| Compatible equipment | Excavator;SUNCARSUNCARSUNCARSUNCARVOLVO |
| Loading port | Huangpu,China |
| Condition | 100% new |
| Standard or not standard products | Standard products |
Swivel Joint Seal Kit Part Numbers:
| 31N6-40950 | 703-09-31520 | 703-08-13101 |
| 31N6-40950 | 703-09-31520 | 20G-62-33760 |
| 31N6-40950 | 703-09-00120 | 20G-30-K2111 |
| 31N6-40950 | 703-09-00120 | 703-09-33210 |
| VOE14514937 | 703-09-00120 | 703-09-33210 |
| VOE14514937 | VOE14534865 | 703-09-00130 |
| VOE14514937 | 401107-00809 | 703-09-00130 |
| VOE14502645 | 401107-00809A | 703-08-33650 |
| VOE14502645 | 480-00018KT | 703-08-33650 |
| 2480-6043KT | K9001025 | 703-09-31520 |
| 2480-6043KT | K9001443 | 703-09-33400 |
| 2480-6043KT | K9004009 | 703-09-33230 |
| 31N4-40950 | 2480-9022 | 703-09-33230 |
| 31N4-40951 | 24809022 | 703-09-33230 |
| VOE14506407 | 91E1-2705 | 703-09-33260 |
| 7009405 | 91E6-27111 | 703-08-13102 |
| 07309-0KT | 2480-9022AKT | 703-08-13102KT |
| 07389-05000 | 24809022AKT | 703-08-13102KT |
| 2181-9085K | K9001025 | 703-08-13101KT |
| 2480-9001K | 2480-9004K | 703-08-13102 |
| 2480-9004AK | 24809004K | 703-09-33400 |
| 2480-9017KT | 2480-9017AKT | 708-08-33651 |
| 2480-9018K | 24809017AKT | 703-08-13102 |
| 2480-9026KT | 2480-9018AKT | 703-09-33400 |
| 2480-9028KT | 2480-9018KT | 401107-00808 |
| 401107-00811 | 24809017 | 401107-00808 |
| 480-00002 | 24809004AKT | 703-08-13101 |
| 480-00008 | 703-09-33260 | 708-08-33651 |
| K9005861 | 703-08-13101 | 401107-00808 |
| K9006398 | 703-08-13102 | 20G-30-K2112 |
| K9006617 | 703-08-13101 | K9006618 |

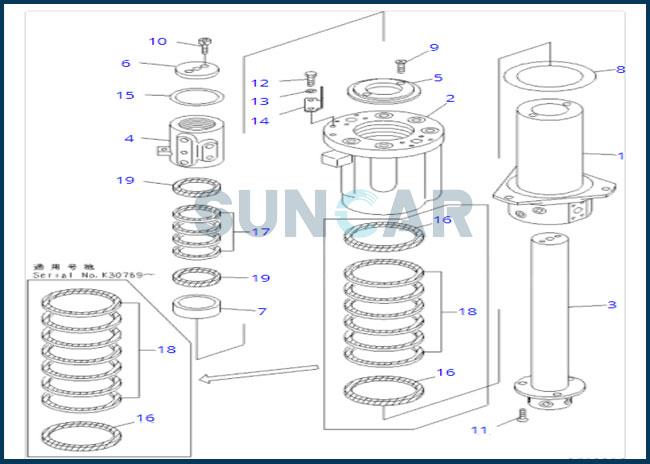

Parts on Group Turning Joint:
| Pos. | Part No | Qty | Parts name |
| 20G-30-K2112 | [1] | SWIVEL JOINT AS'Y | |
| 20G-30-K2111 | [1] | SWIVEL JOINT AS'Y | |
| 1 | 20G-30-K2120 | [1] | SPOOL |
| 2 | 20G-30-K2130 | [1] | ROTOR,MAIN |
| 3 | 20G-30-K2140 | [1] | ROD,PISTON |
| 4 | 20G-30-K2150 | [1] | SHAFT |
| 5 | 20G-30-K2160 | [1] | COVER |
| 6 | 20G-30-K2170 | [1] | COVER |
| 7 | 20G-30-K2180 | [1] | SPACER |
| 8 | 20G-30-K2190 | [1] | RING,GUIDE |
| 9 | 20G-30-K2210 | [2] | SCREW |
| 10 | 20G-30-K2220 | [2] | SCREW |
| 11 | 20G-30-K2230 | [3] | SCREW |
| 12 | 20G-30-K2240 | [2] | SCREW |
| 13 | 20G-30-K2250 | [2] | WASHER |
| 14 | 20G-30-K2260 | [1] | BRACKET |
| 15 | 20G-30-K2270 | [1] | SEAL |
| 16 | 20G-30-K2280 | [1] | SEAL |
| 17 | 20G-30-K2290 | [4] | SEAL |
| 18 | 20G-30-K2310 | [7] | SEAL |
| 19 | 20G-30-K2320 | [2] | SEAL |
