423-22-21750 4232221750 TB9 Type Rotary Oil Seal For KOMATSU WA350 GD555
423-22-21750 4232221750 TB9 Type Seal Oil for KOMATSU WA350 GD555

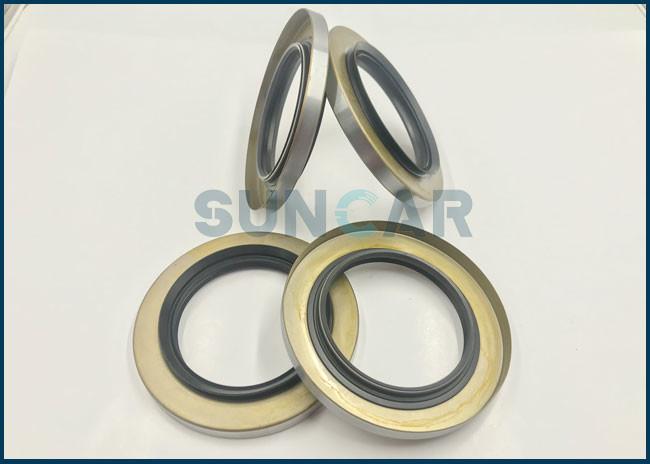

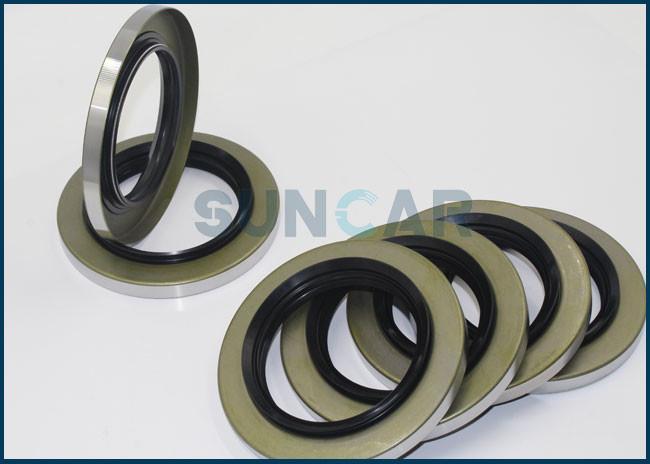

Description: TB9 type oil seal 423-22-21750
Products Details :
| Product name | 423-22-21750 4232221750 TB9 Type Seal Oil for KOMATSU WA350 GD555 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 423-22-21750 4232221750 |
| Temp. | -20~200°C |
| Relative sizes | Standard size |
| Relatice hot oil seals |
TC ; TCK ; TN ; SC ; SB ; MG ; TCN ; KC ; KB ; TC4 ; TB4 ; OKC3 ; MOD ; MOX ; MOY ; VAJ ; TCJ ; SCN ; TCN2 etc. |
| Place original | Guangzhou,China |
| Models | GD555-3 GD555-5 GD655-3 GD655-5 GD675-3 GD675-5 WA350-3 WA380-3 |
| AppliC-A-Tion |
KOMATSU construction machinery equioment |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal;combine oil seal |
Compatible Models:
| Graders | GD555 GD655 GD675 |
| Wheel loaders | WA350 WA380 Komatsu |
Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space

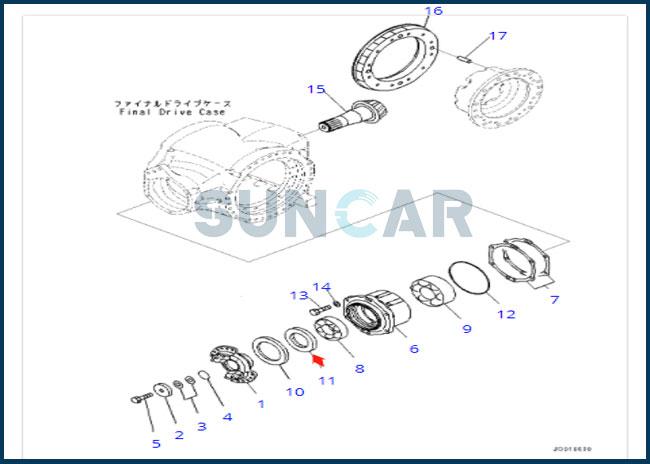

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 23B-22-72002 | [1] | Final Drive Assembly | |
| 23B-22-72001 | [1] | Final Drive Assembly | |
| 23B-22-72000 | [1] | Final Drive Assembly | |
| 1. | 23B-22-71150 | [1] | Coupling |
| 2. | 423-22-11240 | [1] | Holder |
| 3. | 23A-22-00161 | [1] | Shim |
| 3 | 23A-22-11660 | [1] | Shim |
| 3 | 23A-22-11670 | [6] | Shim |
| 3 | 23A-22-11680 | [2] | Shim |
| 3 | 23A-22-11690 | [1] | Shim |
| 4. | 07000-A5050 | [1] | O-ring |
| 5. | 01010-61680 | [1] | Bolt |
| 6. | 23B-22-71140 | [1] | Cage |
| 7. | 23B-22-71200 | [1] | Shim Assembly |
| 7 | 23B-22-71250 | [4] | Shim |
| 7 | 23B-22-71260 | [3] | Shim |
| 7 | 23B-22-71270 | [1] | Shim |
| 7 | 23B-22-71280 | [1] | Shim |
| 8. | 06303-30312 | [1] | Bearing |
| 9. | 423-22-21820 | [1] | Bearing |
| 10. | 714-07-14120 | [1] | Deflector |
| 11. | 423-22-21750 | [1] | Seal |
| 12. | 07000-75190 | [1] | O-ring |
| 13. | 01010-61245 | [6] | Bolt |
| 14. | 01643-31232 | [6] | Washer |
| 14. | 23B-22-71301 | [1] | Pinion and Gear Assembly |
| 14. | 23B-22-71300 | [1] | Pinion and Gear Assembly |
| 17. | 04020-01434 | [4] | Pin, Dowel |
