2438U693R100 Piston Rod Seal Repair Kit Use In Arm Cylinder KOBELCO
2438U693R100 Piston Rod Seal Repair Kit Use In Arm Cylinder KOBELCO
Description: Piston rod seal kit for Cylinder 2438U693R100
Products Details :
| Product name | 2438U693R100 Piston Rod Seal Repair Kit Use In Arm Cylinder KOBELCO |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 2438U693R100 |
| Temp. | -40~120°C(Accprding to the material) |
| Relative sizes | Standard size |
| Place original | Guangzhou,China |
| AppliC-A-Tion |
All types of rotative appliC-A-Tions; Machine tools;Agriculture |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal;BABSL/BAUM5SLX7 CFW oil seal |
Piston rod seals are used for liquid sealing inside the cylinder.
They are loC-A-Ted outside the cylinder head and seal the cylinder rod to prevent liquid from leaking out of the cylinder.
Our sealing system provides a wide selection of piston rod seals to provide customers with the best solution to prevent the intrusion of external
media into the system.
Our patented design meets the user's requirements for low friction, compact structure and easy installation.
Compatible Models:
| K903 | SK60 |
Features:
1. The replacement parts excavator is easy to install.
2. Anti-friction, anti-wear, weathering and oil resistance.
3. Oil resistance,Anti-leakage；leakproof
4. Good oil and fuel resistance
5. Excellent weather and ozone resistance
6. Excellent high/low temperature resistance
7. Extreme wear resistance.
8. Large power, long service life, small distortion, less space occupying.
9. Low friction, free of stick slip.
10. Show stable in high speed rotation.

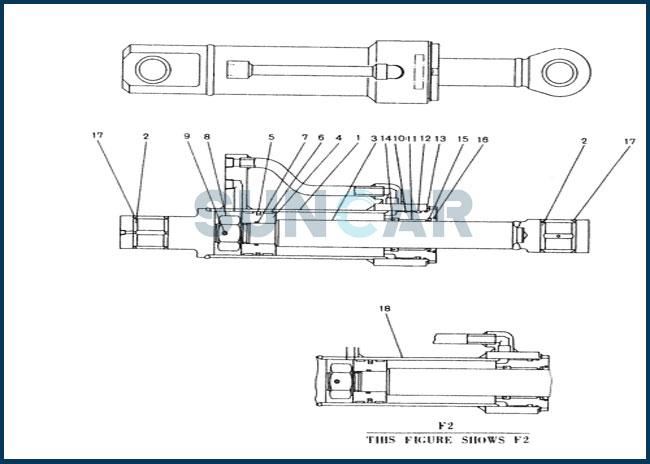

Relative Part Numbers:
| Pos. | Part No | Qty | Parts name |
| . . | 2438U693F1 | [1] | CYLINDER ASSY |
| . . | 2438U693F2 | [1] | CYLINDER |
| 1 | 2438U693S1 | [1] | TUBE,CYLINDER,(FOR F1 ONLY) |
| 2 | 2438U696S7 | [2] | BUSHING |
| 3 | 2438U693S3 | [1] | PISTON ROD |
| 4 | 2438U693S4 | [1] | PISTON |
| 5 | 2438U693S5 | [1] | SEAL |
| 6 | 2438U693S6 | [2] | WEAR RING |
| 7 | ZD12P03500 | [1] | O-RING |
| 8 | 2438U673S11 | [1] | NUT |
| 9 | ZP26D06045 | [1] | ROLL PIN |
| 10 | 2438U693S10 | [1] | COVER.ROD |
| 11 | 2438U673S16 | [1] | BUSHING |
| 12 | ZD12P08000 | [1] | O-RING |
| 13 | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm |
| 14 | 2438U692S16 | [1] | PACKING, ROD |
| 15 | 2438U692S20 | [1] | SEAL |
| 16 | 2438U673S20 | [1] | CLIP |
| 17 | 2438U693S17 | [4] | DUST CAP |
| 18 | 2438U693S18 | [1] | TUBE CYLINDER,FOR F2 ONLY) |
| . . | 2438U693R100 | [1] | REPAIR KIT |
| . . | 2438U693R110 | [1] | REPAIR KIT |
