350-0962 137-3763 Hydraulic Boom Cylinder Service Kit For C-A-T E320B
350-0962 137-3763 Hydraulic Boom Cylinder Service Kit for C-A-T E320B
Description: Boom cylinder seal kit
| Product name | 350-0962 137-3763 Hydraulic Boom Cylinder Service Kit for C-A-T E320B |
| Brand | SUNCAR |
| Meterial | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| OEM number |
350-0962 137-3763 |
| Feature | Durability,Hard-wearing,Higher-toughness |
| Compatible models | E320 E320L E320B E320C E320D E320D2 E320CU E323D E321 |
| Function | Sealing piston |
| MOQ | Accept trial order |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Temperature | -45~+100°C(According to material) |
| Loading Port | Huangpu port,China |
| Compatible brand | Excavator C-A-T |
| Shipping mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| After-sale service | Online support |
| Con | 100 % new |
| Quality | Stable quality, OEM Standard, Genuine / Aftermarket |
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder..Hydraulic cylinder seal kits are used to seal the
gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working
pressure of the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger
excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some
particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Compatible Models:
Excavators E319DL E319DLN E320D E320DFM E320DGC E320DL E320DLN E320DLRR E320DRR E320D2 E320D2GC E320D2L E320E
E320EL E320ELN E320ELRR E320ERR E321DLCR E323DL E323DLN E323DSA E323D2L E323EL C-A-T

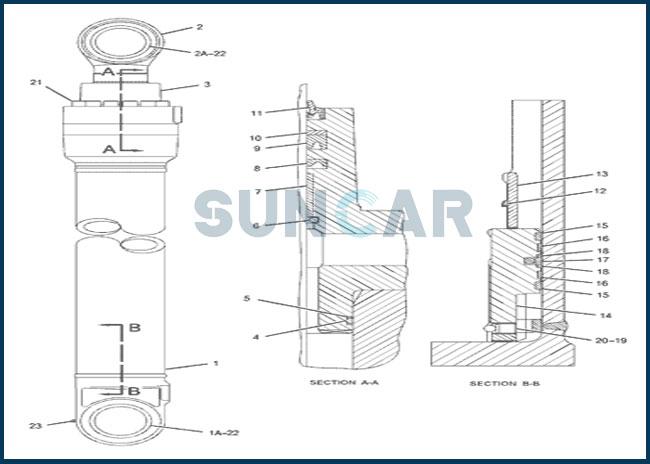

Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 352-1096 | [1] | CYLINDER AS-BOOM |
| 1A. | 357-5717 | [1] | BUSHING |
| 2 | 352-1102 | [1] | ROD AS |
| 2A. | 240-2913 | [1] | BUSHING |
| 3 | 185-0334 | [1] | HEAD |
| 4 | 095-1717 J | [1] | SEAL-O-RING |
| 5 | 096-3964 J | [1] | RING-BACKUP |
| 6 | 094-0747 | [1] | RING-RETAINING |
| 7 | 096-4402 | [1] | BUSHING |
| 8 | 350-0952 J | [1] | SEAL-BUFFER |
| 9 | 350-0957 J | [1] | SEAL-U-CUP |
| 10 | 096-1568 J | [1] | RING-BACKUP |
| 11 | 121-1611 J | [1] | SEAL-LIP TYPE |
| 12 | 126-1935 J | [1] | RING-SEAL |
| 13 | 4I-8864 | [1] | STOP |
| 14 | 247-8864 | [1] | PISTON |
| 15 | 086-0255 J | [2] | RING |
| 16 | 247-8865 J | [2] | RING |
| 17 | 096-7803 J | [1] | SEAL AS |
| 18 | 4I-3615 J | [2] | RING-BACKUP |
| 19 | 3D-2891 | [1] | BALL |
| 20 | 096-3216 M | [1] | SETSCREW-SOCKET (M12X1.75X12-MM) |
| 21 | 8T-1447 M | [12] | BOLT-SOCKET HEAD (M16X2X70-MM) |
| 22 | 166-1494 | [4] | SEAL-LIP TYPE |
| 23 | 3B-8489 | [1] | FITTING-GREASE (1/8-27 PTF) |
| AVAILABLE REPAIR KIT(S): | |||
| 350-0962 J | [1] | KIT-SEAL (BOOM CYLINDER) | |
| J | KIT MARKED J SERVICES PART(S) MARKED J | ||
| M | METRIC PART | ||
| R | REMANUFACTURED PART MAY BE AVAILABLE |
