VOE 14566830 VOE14566830 TCN Skeleton Oil Seal For Swing Gearbox SUNCARSUNCARVOLVO EC340D
VOE 14566830 VOE14566830 Oil Seal for Swing Gearbox SUNCARSUNCARSUNCARSUNCARVOLVO EC340D

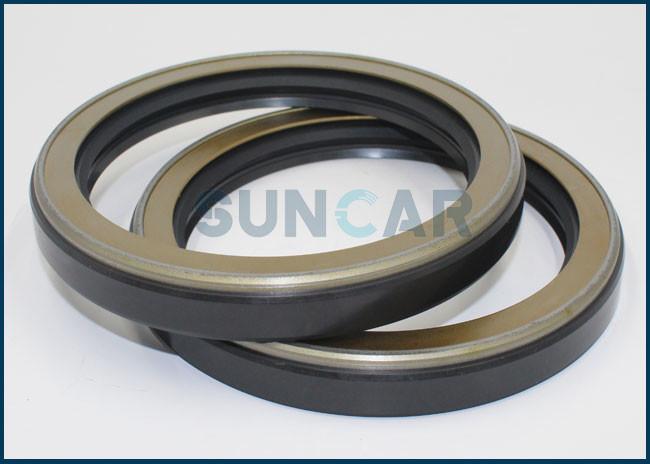

Description: This is an skeleton oil seal for SUNCARSUNCARSUNCARSUNCARVOLVO EC340D.Oil seal is often called grease, fluid, dirt or lip seals. Oil seal is an integral part in any
rotating and moving part assembly. They close spaces between stationary and moving components in mechanical equipment. In most
appliC-A-Tions, the seal is either partially or temporarily immersed or is simply exposed to splashing lubricant, particularly in engines, transmissions,
gearboxes or axles. They are vital components of almost every type of machine and vehicle in operation. An oil seal normally consists of three
basic components: The Sealing Element (the nitrile rubber part), the Metal CNH, and the Spring. It is a widely used sealing component. The
function of a seal is to prevent the leakage of medium along the moving parts.
Products Details :
| Product name | VOE 14566830 VOE14566830 Oil Seal for Swing Gearbox SUNCARSUNCARSUNCARSUNCARVOLVO EC340D |
| Part number | 7Y-1766 7Y1766 |
| Cross numbers | 07012-00110 |
| Type | TCN oil seal |
| AppliC-A-Tion | Widely used in gasoline engine crankshaft, diesel engine crankshaft, transmission,differentials, shock absorbers, engines, axles and otherparts |
| Material |
NBR A795 |
| Features | High / low temperature resistance, oil resistance, water resistance, hard resistance, acid resistance, weathering resistance, abrasion resistance etc. |
| Features | 1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
Compatible Models:
| EC340D | EC330B |
| EC290B | ECR305C |
| EC300D | PL3005D |
| EC350D | EC300E |
| EC700CHR | EC700C |
| PL3005E | ECR355E |
| EC290C | FC3329C |

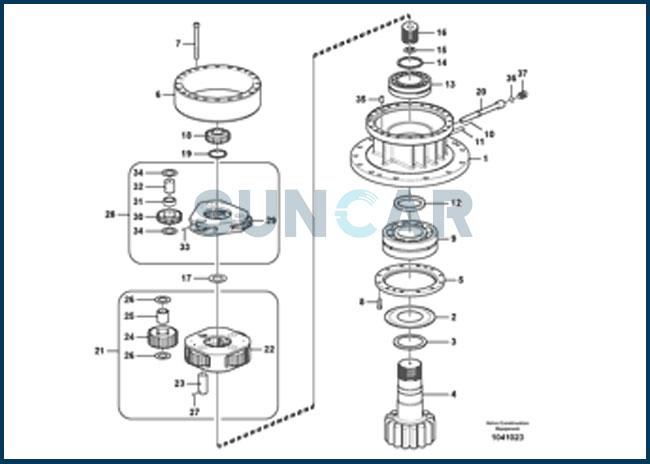

Relative Parts on Groups:
| Pos. | Part No | Qty | Parts name |
| VOE14569767 | [1] | Swing gearbox | |
| 1 | VOE14547262 | [1] | CNH |
| 2 | VOE14547260 | [1] | Ring |
| 3 | VOE14547259 | [1] | Collar |
| 4 | VOE14547258 | [1] | Shaft |
| 5 | VOE14547263 | [1] | Cover |
| 6 | VOE14547266 | [1] | Gear |
| 7 | VOE984363 | [0020] | Hex. socket screw |
| 8 | VOE13944938 | [12] | Screw |
| 9 | VOE14547261 | [1] | Bearing |
| 10 | SA9415-43012 | [1] | Plug |
| 11 | VOE914167 | [1] | LubriC-A-Ting nipple |
| 12 | VOE14566830 | [1] | Seal |
| 13 | VOE14547265 | [1] | Bearing |
| 14 | SA9541-01110 | [1] | Retaining ring |
| 15 | SA7118-30380 | [1] | Thrust ring |
| 16 | VOE14547272 | [1] | Gear |
| 17 | VOE14880960 | [1] | Retaining ring |
| 18 | VOE14547279 | [1] | Gear |
| 19 | VOE14547278 | [1] | Thrust washer |
| 20 | VOE14547281 | [1] | Pipe |
| 21 | VOE14547280 | [1] | Planet carrier |
| 22 | VOE14547267 | [1] | Planet carrier |
| 23 | VOE14547271 | [4] | Pin |
| 24 | VOE14547268 | [4] | Gear |
| 25 | VOE14547269 | [4] | Bushing |
| 26 | VOE14556491 | [8] | Washer |
| 27 | SA9325-06012 | [4] | Spring pin |
| 28 | VOE14547273 | [1] | Planet carrier |
| 29 | VOE14547274 | [1] | Planet carrier |
| 30 | VOE14547275 | [3] | Gear |
| 31 | SA7117-30230 | [3] | Needle bearing |
| 32 | VOE14547277 | [3] | Pin |
| 33 | SA9325-06012 | [3] | Spring pin |
| 34 | VOE14547276 | [6] | Washer |
| 35 | VOE950677 | [4] | Pin |
| 36 | VOE949329 | [1] | Gasket |
| 37 | VOE14722461 | [1] | Draining valve |
