VOE 14621703 VOE14621703 Oil Seal For SUNCARSUNCARVOLVO Travel Mortor EC160B
VOE 14621703 VOE14621703 Oil Seal for SUNCARSUNCARSUNCARSUNCARVOLVO Travel Mortor EC160B
Description: Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals.
Oil seal is an integral part in any rotating and moving part assembly. They close spaces between stationary and moving components in
mechanical equipment. An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal CNH,
and the spring. It is a widely used sealing component.
| Product name | VOE 14621703 VOE14621703 Oil Seal for SUNCARSUNCARSUNCARSUNCARVOLVO Travel Mortor EC160B |
| Parts number | VOE 14621703 VOE14621703 |
| Size | Standard size |
| Material | Metal |
| Material | NBR |
| Temp. | NBR(-40〜120°C) |
| Features | 1.Unusually high wear resistance. 2.High resistance qgainest extrusion. 3.Perfect sealing performance. 4.Easy installation. 5.Good temperature tolerance. |
| Compatible equipemnt | Car,Excavator |
| Original or not | Original |
| Loading port | Huangpu port,China |
| Shipping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Terms of payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P |
Compatible Models:
| EC240C | ECR235C |
|
EC160B |
EC140C |
| EC210C | FC2421C |
| EC140 | EC150 |
| EC240 | EC210 |
| EC180D | EC200B |
| EC160D | EC160B |
| EC160C | EC240B |
| EC240B | EC180C |
| EC210B | EC140D |
| EC180B | EC140B |
| EC210B | FC2121C |
| EC140E |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

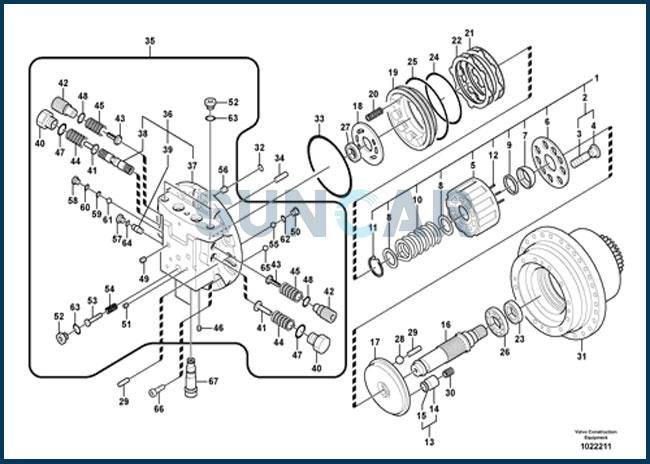

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14560146 | [1] | Travel motor | |
| 1 | SA8230-21631 | [1] | Cylinder |
| 2 | SA8230-28900 | [9] | Piston |
| 3 | VOE14500075 | [1] | Piston |
| 4 | VOE14500076 | [1] | Seat |
| 5 | [1] | Block | |
| 6 | SA8230-21530 | [1] | Plate |
| 7 | SA8230-21540 | [1] | Ball |
| 8 | SA8230-31160 | [2] | Washer |
| 9 | SA8230-21560 | [1] | Washer |
| 10 | SA8230-21570 | [1] | Spring |
| 11 | VOE14500077 | [1] | Ring |
| 12 | VOE14500078 | [5] | Bearing |
| 13 | SA8230-15140 | [1] | Piston |
| 14 | VOE14500079 | [1] | Piston |
| 15 | VOE8230-28790 | [1] | Seat |
| 16 | SA8230-33140 | [1] | Drive shaft |
| 17 | SA8230-33060 | [1] | Plate |
| 18 | SA8230-21550 | [1] | Protecting plate |
| 19 | SA8230-21650 | [1] | Piston |
| 20 | SA8230-21660 | [12] | Spring |
| 21 | SA8230-21670 | [2] | Friction plate |
| 22 | SA8230-03560 | [2] | Plate |
| 23 | VOE14621703 | [1] | Seal |
| 24 | VOE990656 | [1] | O-ring |
| 25 | VOE990660 | [1] | O-ring |
| 26 | VOE14551534 | [1] | Ball bearing |
| 27 | VOE14531426 | [1] | Bearing |
| 28 | SA8230-21600 | [2] | Support |
| 29 | SA8230-21610 | [4] | Pin |
| 30 | SA8230-15150 | [1] | Spring |
| 31 | VOE14535473 | [1] | Spindle |
| 32 | VOE983495 | [2] | O-ring |
| 33 | VOE960259 | [1] | O-ring |
| 34 | SA8220-13340 | [1] | Pin |
| 35 | VOE14622759 | [1] | Flange |
| 36 | VOE14553288 | [1] | Flange |
| 37 | VOE14550653 | [1] | Flange |
| 38 | VOE14502032 | [1] | Spool |
| 39 | VOE14500086 | [1] | Piston |
| 40 | SA8230-02710 | [2] | Plug |
| 41 | SA8230-21700 | [2] | Stop |
| 42 | SA8230-03590 | [2] | Plug |
| 43 | SA8230-03600 | [2] | Non-return valve |
| 44 | SA8230-02760 | [2] | Spring |
| 45 | SA8230-03610 | [2] | Spring |
| 46 | SA8220-14930 | [4] | Plug |
| 47 | VOE990607 | [2] | O-ring |
| 48 | VOE983523 | [2] | O-ring |
| 49 | SA8230-30410 | [2] | Plug |
| 50 | VOE14573795 | [2] | Plug |
| 51 | SA8220-14920 | [8] | Plug |
| 52 | VOE14573793 | [2] | Plug |
| 53 | SA8230-21710 | [1] | Coil |
| 54 | VOE14500087 | [1] | Spring |
| 55 | SA9676-38000 | [2] | Ball |
| 56 | VOE14617170 | [1] | Filter |
| 57 | SA8230-23140 | [2] | Plug |
| 58 | SA8230-21890 | [2] | Plug |
| 59 | VOE990551 | [2] | O-ring |
| 60 | VOE983495 | [2] | O-ring |
| 61 | VOE14500088 | [2] | Ball |
| 62 | VOE983502 | [2] | O-ring |
| 63 | VOE990557 | [2] | O-ring |
| 64 | VOE983505 | [2] | O-ring |
| 65 | VOE14535474 | [1] | Orifice |
| 66 | VOE13968816 | [12] | Allen Hd Screw |
| 67 | SA8230-21640 | [2] | Relief valve |
| VOE14533743 | [1] | Sealing ring | |
| VOE14553290 | [1] | Sealing ring |
