2480-9018 24809018 Swivel Joint Center Joint Seal Repair Kit For DH55GOLD
2480-9018 24809018 Swivel Joint Center Joint Seal Repair Kit for DH55GOLD
Description: Swivel Joint Seal is the composite seal which consist of rubber ring and resin ring for a hydraulic turning unit like a swivel joint of
hydraulic excavator. The optimum design with the rubber ring and the resin ring can achieve the good sealing performance.We have large stock
with high quality,welcome to place order!
|
Product name |
2480-9018 24809018 Swivel Joint Center Joint Seal Repair Kit for DH55GOLD |
|
Brand name |
SUNCAR |
|
MOQ |
10 sets |
|
Shipping Mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Compatible Model |
SOLAR70-III |
|
Stock |
Have enough stock for selling |
| Payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P,Paypal,Bank Transfer |
|
Condition |
100% new |
| CertifiC-A-Tion | ISO9001 |
| Function | Creates linear movement to Control walking and play buffer role when buffering |
| Supply Ability | 2200 sets per month |
| Paking | PP bag inside,carton box outside. |
| Style | Hydraulic Kit |
| Compatible equipment | DOOSAN/DAEOO/SOLAR |
| Warranty | 180 Days from the date of shippment |
| AppliC-A-Tion | Ming,Hydraulic breaker,Excavator,Atlas,Second-time breaking |
| Type | Hydraulic kit Center joint seal kit |
| Quality | Good,OEM Standard,Genuine/Aftermarket |
Feature:
Can achieve the good sealing performance
Available for high pressure (~24.5MPa[350kgf/cm2]) condition
Can reduce running torque
Can be freed from stick-slip
Can elongate service time of seal due to high durability based on excellent abrasion resistance
Applicable for two-way pressure
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

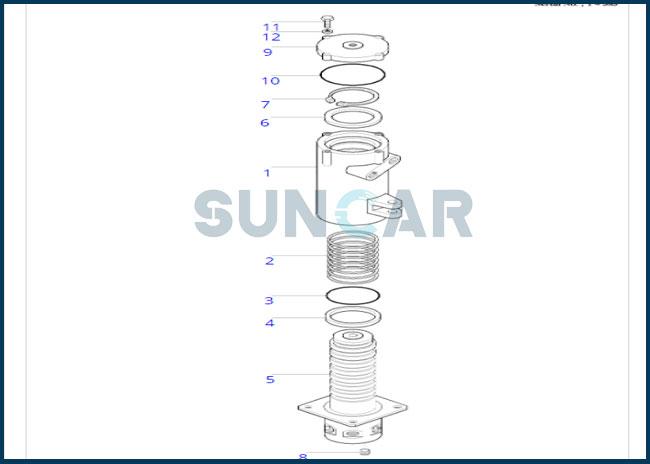

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| -. | 2480-9018 | [1] | CENTER JOINT |
| 1 | 03C246-3 | [1] | BODY |
| 2 | E5690014 | [8] | SEAL;SLIPPER |
| 3 | E6301441 | [1] | O-RING |
| 4 | E6000840 | [1] | WIPER;DUST |
| 5 | 53C274-1 | [1] | SPINDLE |
| 6 | 03C250-2 | [1] | PLATE;THRUST |
| 7 | E8500421 | [1] | RING;RETAINER |
| 8 | E1500030 | [6] | PLUG;HEX.SOCKET |
| 9 | 03C251-0 | [1] | COVER |
| 10 | E6311521 | [1] | O-RING |
| 11 | E0020683 | [4] | BOLT;HEX. |
| 12 | E3110102 | [4] | WASHER;SPRING |
| *. | 2480-9018KT | [1] | KIT;SEAL |
