202-63-52500 2026352500 Boom Cylinder Seal Kit For KOMATSU PC100-3
202-63-52500 2026352500 Boom Cylinder Seal Kit for KOMATSU PC100-3
Description: Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic
cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger
excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some
particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Products Details :
| Product name | 202-63-52500 2026352500 Boom Cylinder Seal Kit for KOMATSU PC100-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 202-63-52500 ; 2026352500 |
| Temp. | -40~120°C(Accprding to the material) |
| Relative sizes | Standard size |
| Place original | Guangzhou,China |
| AppliC-A-Tion |
Boom cylinder;Doosan;Solar |
| Cylinder number | 202-63-59300 |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Consist of | Dust seal;O-Ring;Back-up ring |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Boom cylinder seal kit |

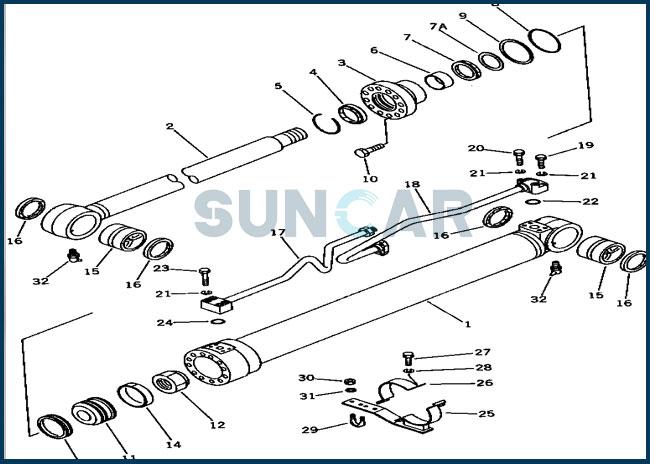

Relative Part Numbers:
| Pos. | Part No | Qty | Parts name |
| 202-63-59300 | [1] | BOOM CYLINDER ASS'Y,L.H. | |
| 202-63-52500 | [1] | BOOM CYLINDER ASS'Y,L.H. | |
| 202-63-59400 | [1] | BOOM CYLINDER ASS'Y,R.H. | |
| 202-63-52600 | [1] | BOOM CYLINDER ASS'Y,R.H. | |
| 202-63-59310 | [1] | CYLINDER SUB ASS'Y K | |
| 202-63-52510 | [1] | CYLINDER SUB ASS'Y | |
| 1 | 202-63-52540 | [1] | CYLINDER |
| 2 | 202-63-52520 | [1] | ROD,PISTON |
| 3 | 707-27-10190 | [1] | HEAD,CYLINDER |
| 707-27-10170 | [1] | HEAD,CYLINDER | |
| 4 | 07016-20658 | [1] | SEAL,DUST (KIT) |
| 144-63-92170 | [1] | SEAL,DUST (KIT) | |
| 5 | 07179-00088 | [1] | RING,SNAP |
| 07179-12079 | [1] | RING,SNAP | |
| 6 | 07177-06530 | [1] | BUSHING |
| 7 | 707-51-65030 | [1] | PACKING,ROD (KIT) |
| 707-51-65211 | [1] | PACKING,ROD (KIT) | |
| 7A. | 707-51-65630 | [1] | RING,BUFFER (KIT) |
| 8 | 07000-12095 | [1] | O-RING (KIT) |
| 9 | 707-35-91011 | [1] | RING,BACK-UP (KIT) |
| 07146-02096 | [1] | RING,BACK-UP (KIT) | |
| 10 | 01010-51450 | [12] | BOLT |
| 11 | 707-36-10260 | [1] | PISTON |
| 12 | 07165-14547 | [1] | NUT |
| 13 | 707-44-10080 | [1] | RING,PISTON (KIT) |
| 14 | 07155-01025 | [1] | RING,WEAR (KIT) |
| 15 | 707-76-70040 | [2] | BUSHING |
| 16 | 07145-00070 | [4] | SEAL,DUST (KIT) |
| 17. | 202-63-52570 | [1] | TUBE,L.H. |
| 202-63-52670 | [1] | TUBE,R.H. | |
| 18. | 203-63-52580 | [1] | TUBE,L.H. |
| 203-63-52680 | [1] | TUBE,R.H. | |
| 19. | 01010-50845 | [2] | BOLT |
| 20. | 01010-50855 | [2] | BOLT |
| 21. | 01602-20825 | [8] | WASHER,SPRING |
| 22. | 07000-13030 | [1] | O-RING (KIT) |
| 23. | 01010-50850 | [4] | BOLT |
| 24. | 07000-13025 | [1] | O-RING (KIT) |
| 25. | 707-88-99030 | [1] | BRACKET |
| 26. | 707-88-99010 | [1] | BAND |
| 27. | 01010-51030 | [2] | BOLT |
| 28. | 01602-21030 | [2] | WASHER,SPRING |
| 29. | 07283-22236 | [2] | CLIP |
| 30. | 01599-01011 | [4] | NUT |
| 31. | 01643-31032 | [4] | WASHER |
| 32. | 07020-00675 | [2] | FITTING,GREASE |
