VOE11102569 VOE 11102569 Face Seal Ring For SUNCARSUNCARVOLVO Hub Reduction T450D A25G
VOE11102569 VOE 11102569 Face Seal Ring for SUNCARSUNCARSUNCARSUNCARVOLVO Hub Reduction T450D A25G
Description: The mechanical face seal rings are manufactured from a close grained cast iron material to offer the very best combination of wear
and corrosion resistance. The excellent tribological characteristics of this material allow mechanical face seals from FTL Technology to be used in
appliC-A-Tions with a rotary speed up to 10m/s. Under extreme service conditions, the metallurgical qualities of our cast iron material provide
outstanding resistance against seizure and scoring.
The seal rings are statically sealed and have their face load generated by two toric O ring seals. These are critical elements to ensure maximum
performance of the overall seal system.
| Product name | VOE11102569 VOE 11102569 Face Seal Ring for SUNCARSUNCARSUNCARSUNCARVOLVO Hub Reduction T450D A25G |
| Brand | SUNCAR |
| Fits brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Name | Floating seals; Heavy duty seal; Seal group; Duo cone seal; Drift oil seal ring; Floating oil seal |
| Part number | R45P0018D2 |
| Rubber hardness | 60-65 ° |
| Metal hardness | 58-62 Hrc |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Dustproof,waterproof,oilproof,leakproof;to ensure good operation |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| C-A-Tegory | Mechanical face seal |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union, L/C, T/T, Money Gram, Paypal |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Floating seal |
| AppliC-A-Tion | Kobelco consturction machinery equipment;Truck;Construction Resell store;Repair Store |
|
Standard or nonstandard |
Standard |
| Models | Models A40D;A35D;A40;A30G;A25G;A30F/G;A25F/G;T450D |
Advantages of This Mechanical Face Seals:
1. High reliability
2. Cost effective sealing against external (dirt, sand, water) and internal (oil, grease) media
3. Long service life with no maintenance required
4. Easy assembly
5. Self-centering, compensating for shaft misalignment and eccentricity
AppliC-A-Tion:
--Agriculture, construction, earthmoving, coal mining machinery Farm, construction, earthmoving, coal mining machinery
--Excavator, Bulldozer, tractor, crane, forklift, heavy truck, backhoe
--Undercarraige, hydraulic motor, travel motor, gearbox shaft, wheel hub, tunneling
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

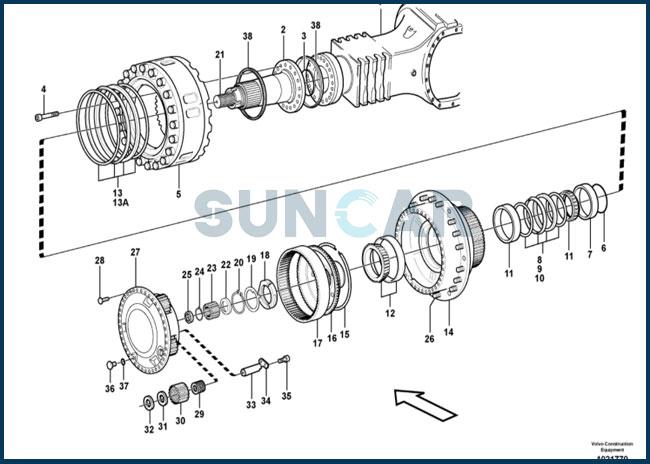

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | VOE23926 | [1] | Planet shaft |
| 2 | VOE11035871 | [2] | Spindle |
| 3 | VOE13948511 | [2] | O-ring |
| 4 | VOE966841 | [38] | Hex. socket screw |
| 5 | [2] | Multidisc brake | |
| 6 | VOE977031 | [2] | O-ring |
| 7 | VOE11103272 | [2] | Spacer ring |
| 8 | VOE11102569 | [2] | Face Sealing |
| 9 | VOE11703440 | [2] | O-ring |
| 10 | VOE11704007 | [2] | O-ring |
| 11 | VOE11035753 | [2] | Roller bearing |
| 12 | VOE11035921 | [2] | Roller bearing |
| 13 | VOE11102716 | [2] | Face Sealing |
| 13A. | VOE11708367 | [2] | O-ring |
| VOE11708368 | [2] | O-ring | |
| 14 | VOE11103197 | [0002] | Hub |
| 15 | VOE4717268 | [2] | Snap ring |
| 16 | VOE11035924 | [2] | Gear ring holder |
| 17 | VOE4717261 | [2] | Gear ring |
| 18 | VOE11168099 | [2] | Nut |
| 19 | VOE11168097 | [2] | Lock ring |
| 20 | VOE914490 | [2] | Snap ring |
| 21 | VOE11102553 | [1] | Drive shaft |
| VOE11102554 | [1] | Drive shaft | |
| 22 | VOE4717269 | [2] | Wear washer |
| 23 | VOE11102300 | [2] | Sun gear |
| 24 | VOE7044381 | [2] | Snap ring |
| 25 | VOE11102910 | [2] | Wear ring |
| 26 | VOE11102584 | [36] | Wheel stud |
| 27 | VOE11103195 | [2] | Planet carrier |
| VOE11103303 | [2] | O-ring | |
| 28 | VOE980238 | [78] | Hex. socket screw |
| VOE955899 | [6] | Plain washer | |
| 29 | VOE4786810 | [6] | Needle bearing |
| 30 | VOE11102299 | [6] | Planet gear |
| 31 | VOE11035881 | [12] | Thrust washer |
| 32 | VOE11035882 | [12] | Thrust washer |
| 33 | VOE4717385 | [6] | Planet shaft |
| 34 | VOE4717618 | [6] | Striker plate |
| 35 | VOE946441 | [12] | Flange screw |
| 36 | VOE11034156 | [4] | Plug |
| 37 | VOE958228 | [4] | O-ring |
| 38 | VOE11102073 | [4] | Sealing ring |
