2180-9154 21809154 Shaft Oil Seal For Swing Reduction Gear SOLAR 55
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Product Description
2180-9154 21809154 Shaft Oil Seal for Swing Reduction Gear SOLAR 55
Description: This is Swing Reduction Gear Swing 2180-9154, mainly used in Shaft of Hydraulic pump, especially is hydraulica pump / mortors.
Those pumps usually are usred in roader roller, land scraper, shovel loader, self-discharging car, mixer truck and excavators etc.
High pressure seals, such as the Type TCN, is designed for high pressure appliC-A-Tions where continuous pressure may reach
150psi(10.6kg/cm2). Maximum pressure limit is dependent on shaft speed.
Products Details :
| Product name | 2180-9154 21809154 Shaft Oil Seal for Swing Reduction Gear SOLAR 55 |
| Part number | 2180-9154 21809154 |
| Lip material | NBR 795 |
| Type | TCN oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
AppliC-A-Tion Models:(DOOSAN,SOLOR)
| B55W-1 | S80GOLD |
| SOLAR 50W-III | SOLAR 55 |
| SOLAR 55-V PLUS | SOLAR 55W-V |
| SOLAR 55W-V PLUS |
SOLAR 70-III |
| SOLAR 75-V | EX300-2 |

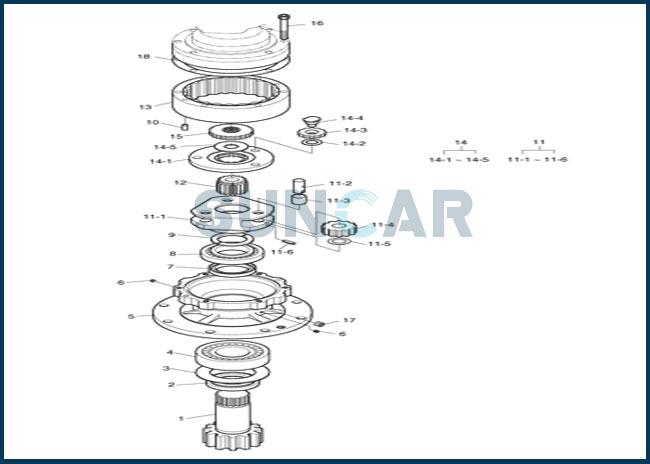

Relative Parts of Group:
| Pos. | Part No | Qty | Parts name |
| -. | 404-00084 | [1] | REDUCTION GEAR ASS'Y |
| 1 | 2405-1009 | [1] | SHAFT |
| 10 | 2123-1778 | [1] | PIN |
| 11 | 2432-1014 | [1] | CARRIER ASS'Y 2 |
| 11-1. | 2514-1010 | [1] | CARRIER(NO.2) |
| 11-2. | 2112-1205 | [3] | SHAFT 2 |
| 11-3. | 2110-1204 | [3] | BUSH |
| 11-4. | 2404-1044 | [3] | PLANETARY(NO.2) |
| 11-5. | 2412-1029 | [3] | PLATE;THRUST |
| 11-6. | S5741162 | [3] | PIN;SPRING |
| 12 | 2404-1040 | [1] | GEAR;SUN 2 |
| 13 | 2404-1041 | [1] | GEAR;RING |
| 14 | 2232-1015 | [1] | CARRIER ASS'Y 1 |
| 14-1. | 2230-6004 | [1] | CARRIER 1 |
| 14-2. | 2101-6021 | [3] | PLANETARY 1 |
| 14-3. | 2112-1203 | [3] | SHAFT 1 |
| 14-4. | 2412-1028 | [3] | PLATE;THRUST |
| 14-5. | 2412-1027 | [1] | PLATE;THRUST |
| 15 | 2101-6019 | [1] | GEAR;SUN 1 |
| 16 | 2120-1445 | [6] | BOLT;SOCKET M12X1.75X95 |
| 17 | 2181-1116D6 | [1] | PLUG PT3/8 |
| 18 | 2180-1220 | [1] | GASKET |
| 2 | 2114-1632 | [1] | COLLAR |
| 3 | 2412-1026 | [1] | PLATE |
| 4 | 2109-9041 | [1] | BEARING;TAPER |
| 5 | 2402-1033B | [1] | CNH;GEAR |
| 6 | 2181-1116D1 | [1] | PLUG |
| 7 | 2180-9154 | [2] | SEAL;OIL D90XD65 |
| 8 | 2109-9042 | [1] | BEARING;TAPER |
| 9 | 2114-1633 | [1] | COLLAR |
