CA0990233 099-0233 0990233 Oil Seal For Drive GP-Swing C-A-T E312C E314D
CA0990233 099-0233 0990233 Oil Seal for Drive GP-Swing C-A-T E312C E314D

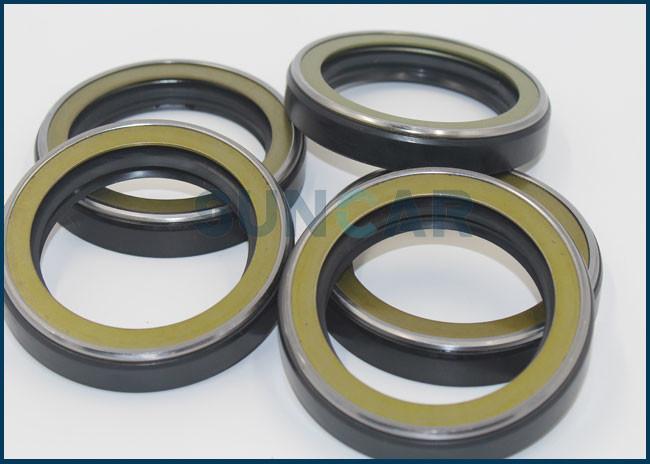

Description: This is oil seal, mainly used in Shaft of Drive Gp-swing.
Products Details :
| Product name | CA0990233 099-0233 0990233 Oil Seal for Drive GP-Swing C-A-T E312C E314D |
| Part number | CA0990233 099-0233 0990233 |
| Lip material | NBR |
| Type | TCN oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
Oil Seal:
Designed to aid trouble-free operation of your equipment, providing an excellent barrier against the escape of oils and greases and preventing
the ingress of foreign matter.
Benefits:
1. Excellent wear resistance.
2. Good running properties.
3. High resistance to chemicals and petroleum based fuels including petrol.
4. Diesel and LPG.
The Advantage of Oil Seal:
1. Good glossiness surface.
2. Excellent resilience
3. Excellent sealing effect
4. Good weather resistance
5. Good material stability
6. Customized non-standard models
7. Mature technology, stable quality
AppliC-A-Tion Models:(DOOSAN,SOLOR)
| C-A-T E312 | E312B |
| C-A-T E312C | E311C |
| E314C CR | E312CL |
| E311C |
E314C CR |
| E312D | E311D |

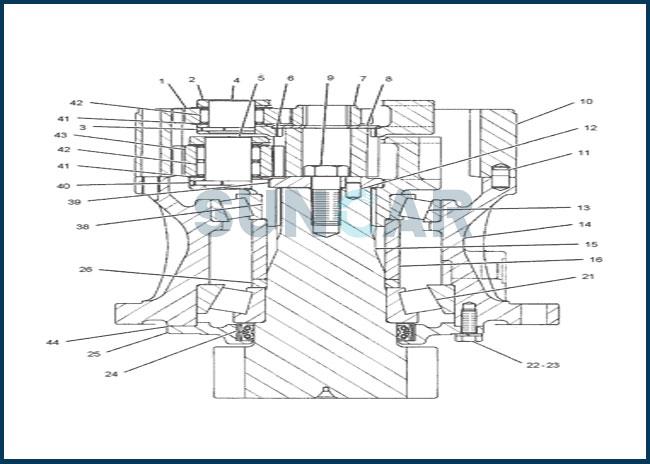

Relative Parts of Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 191-2600 | [3] | GEAR-PLANETARY |
| 2 | 191-2599 | [1] | CARRIER-PLANETARY |
| 3 | 191-2604 | [3] | PIN-SPRING |
| 4 | 191-2603 | [3] | SHAFT-PLANETARY |
| 5 | 191-2609 | [3] | SHAFT-PLANETARY |
| 6 | 191-2605 | [1] | WASHER (30X75X3-MM THK) |
| 7 | 191-2611 | [1] | GEAR-SUN |
| 8 | 191-2612 | [1] | GEAR-SUN |
| 9 | 114-8224 M | [1] | BOLT (M20X1.5-THD) |
| 10 | 191-2613 | [1] | GEAR-RING |
| 11 | 093-6089 | [2] | DOWEL |
| 12 | 095-0893 | [1] | PIN-SPRING |
| 13 | 7I-7625 | [1] | BEARING AS-ROLLER |
| 14 | 191-2615 | [1] | HOUSING |
| 15 | 191-2614 | [1] | SHAFT-PINION |
| 16 | 7I-7632 B | [1] | SPACER (69.5-MM THK) |
| 7I-7633 B | [1] | SPACER (69.8-MM THK) | |
| 7I-7634 B | [1] | SPACER (70.1-MM THK) | |
| 7I-7635 B | [1] | SPACER (70.4-MM THK) | |
| 7I-7636 B | [1] | SPACER (70.7-MM THK) | |
| 21 | 7I-7626 | [1] | BEARING AS-ROLLER |
| 22 | 8T-4195 M | [8] | BOLT (M10X1.5X30-MM) |
| 23 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) |
| 24 | 099-0233 | [1] | SEAL-LIP TYPE |
| 25 | 099-0235 | [1] | CAGE |
| 26 | 7I-7638 B | [1] | SPACER (10-MM THK) |
| 7I-7639 B | [1] | SPACER (10.03-MM THK) | |
| 7I-7640 B | [1] | SPACER (10.05-MM THK) | |
| 7I-7641 B | [1] | SPACER (10.08-MM THK) | |
| 7I-7642 B | [1] | SPACER (10.1-MM THK) | |
| 7I-7643 B | [1] | SPACER (10.12-MM THK) | |
| 7I-7644 B | [1] | SPACER (10.15-MM THK) | |
| 7I-7645 B | [1] | SPACER (10.18-MM THK) | |
| 7I-7646 B | [1] | SPACER (10.2-MM THK) | |
| 7I-7647 B | [1] | SPACER (10.23-MM THK) | |
| 7I-7648 B | [1] | SPACER (10.25-MM THK) | |
| 7I-7649 B | [1] | SPACER (10.28-MM THK) | |
| 38 | 191-2607 | [1] | CARRIER-PLANETARY |
| 39 | 114-8223 | [1] | RETAINER |
| 40 | 191-2610 | [3] | PIN-SPRING |
| 41 | 191-2602 | [12] | WASHER (32X56X1.2-MM THK) |
| 42 | 191-2601 | [9] | BEARING |
| 43 | 191-2608 | [3] | GEAR-PLANETARY |
| 44 | 1U-8846 B | SEALANT-GASKET | |
| B | USE AS REQUIRED | ||
| M | METRIC PART |
