4187681 Oil Seal Shaft Seal For Swing Device HITACHI EX150 EX200
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Product Description
4187681 Oil Seal Shaft Seal for Swing Device HITACHI EX150 EX200
Description: This is 4187681 oil seal.Oil Seal House also prevents the entry of dust and dirt into a machine. They also
stop harmful contaminants from entering machinery, particularly in severe environments. Vital components of practically every type of machine
and vehicle in operation, oil seals protect all types of precision-constructed, close-fitting ball, sleeve and roller bearings.
Products Details :
| Product name | 4187681 Oil Seal Shaft Seal for Swing Device HITACHI EX150 EX200 |
| Part number | 4187681 |
| Lip material | NBR |
| Type | TCN oil seal |
| AppliC-A-Tble model |
EX150 EX160WD EX200 EX200K EX220 EX270 EX300 KH100D KH125-3(D) RX2000 Hitachi |
| AppliC-A-Tion | Electrical appliance,mechanical,construction, automobile and motorcycle,household,medical,agricultural machinery,automotive |
| Material |
NBR |
| Compatible equipment | Excavator C-A-T |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |

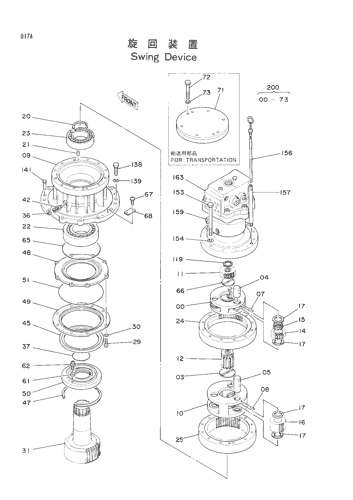

Relative Parts of Group:
| Pos. | Part No | Qty | Parts name |
| 0 | 2022471 | [1] | CARRIER |
| 3 | 4176073 | [1] | PLATE;THRUST |
| 4 | 4186366 | [3] | PIN |
| 5 | 4177853 | [3] | PIN |
| 7 | 4144020 | [3] | PIN;SPRING |
| 8 | 4513294 | [3] | PIN;SPRING |
| 9 | 1010949 | [1] | HOUSING |
| 10 | 2025126 | [1] | CARRIER |
| 11 | 3034904 | [1] | GEAR;SUN |
| 12 | 3034905 | [1] | GEAR;SUN |
| 14 | 3034548 | [3] | GEAR;PLANETARY |
| 15 | 4187317 | [3] | BRG.;NEEDLE |
| 16 | 9723274 | [3] | GEAR;PLANETARY |
| 17 | 4176072 | [12] | PLATE;THRUST |
| 20 | 991352 | [1] | RING;RETAINING |
| 21 | J401640 | [2] | PIN;KNOCK |
| 22 | 4176247 | [1] | BRG.;SPH.ROL. |
| 23 | 944690 | [1] | BRG.;ROL. |
| 24 | 2022464 | [1] | GEAR;INTERNAL |
| 25 | 2021454 | [1] | GEAR;INTERNAL |
| 29 | J901240 | [8] | BOLT |
| 30 | A590912 | [8] | WASHER;SPRING |
| 31 | 2024103 | [1] | SHAFT;PROP. |
| 36 | 94-2024 | [1] | PLUG |
| 37 | A811110 | [1] | O-RING |
| 42 | 4194712 | [1] | COCK |
| 45 | 4187681 | [1] | SEAL;OIL |
| 45 | 4250326 | [1] | SEAL;OIL |
| 47 | 4197170 | [1] | RING |
| 48 | 2025148 | [1] | COVER |
| 49 | 2024625 | [1] | COVER |
| 50 | 3039868 | [1] | SLEEVE |
| 51 | 4204138 | [1] | O-RING |
| 61 | 4204644 | [2] | MAGNET |
| 62 | 4204645 | [2] | SCREW |
| 65 | 4210325 | [1] | O-RING |
| 66 | 4195372 | [1] | PLATE;THRUST |
| 67 | M492564 | [2] | SCREW;DRIVE |
| 68 | 3053093 | [1] | NAME-PLATE |
| 71 | 8049279 | [1] | COVER |
| 72 | J901614 | [6] | BOLT |
| 73 | A590916 | [6] | WASHER;SPRING |
| 119 | 962002 | [1] | RING;RETAINING |
| 138 | J932065 | [12] | BOLT |
| 139 | A590920 | [12] | WASHER;SPRING |
| 141 | 4080398 | [2] | PIN;KNOCK |
| 153 | J901614 | [12] | BOLT |
| 154 | A590916 | [12] | WASHER;SPRING |
| 156 | 3035979 | [1] | GAUGE;LEVEL |
| 156 | 3043290 | [1] | GAUGE;LEVEL |
| 157 | 4198387 | [1] | PIPE |
| 159 | 94-2025 | [1] | PLUG |
| 163 | 4200626 | [1] | MOTOR;OIL |
| 163 | 4200626 | [1] | MOTOR;OIL |
| 163 | 4200626 | [1] | MOTOR;OIL |
| 163 | 4200626 | [1] | MOTOR;OIL |
| 163 | 4224990 | [1] | MOTOR;OIL |
| 200 | 9097685 | [1] | SWING DEVICE(WITHOUT MOTOR) |
