XKAQ-00149 XKAQ00149 Oil Seal Use For Hyundai Swing Reduction Gear R300LC-7
XKAQ-00138 XKAQ00138 Oil Seal Shaft Seal For Hyundai R290LC-7 R305LC-7

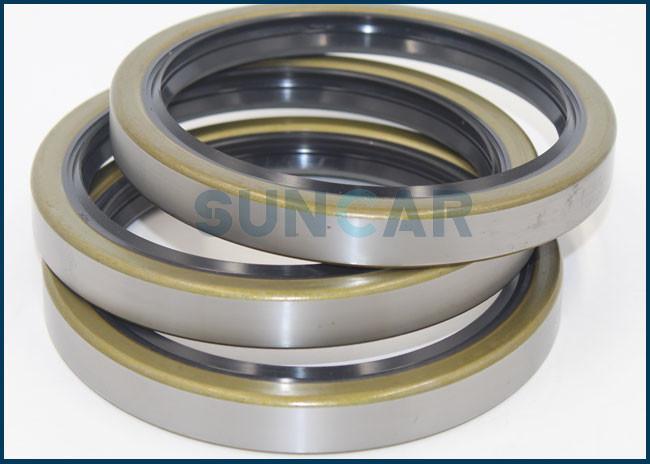

Description: Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals.Oil seal is an integral part in any rotating
and moving part assembly. They close spaces between Stationary and moving components in mechanical equipment. An oil seal normally
consists of Three basic components: The Sealing Element (the nitrile rubber part), the Metal CNH, and theSpring. It is a widely used sealing
component.
| Product name | XKAQ-00138 XKAQ00138 Oil Seal Shaft Seal For Hyundai R290LC-7 R305LC-7 |
| Brand | SUNCAR |
| OEM No. |
XKAQ-00138 ; XKAQ00138 |
| Color | As per standard color/customize color |
| Swing reduction gear number | 31E9-01050 |
| Hardness | 70 degree to 95 degree |
| Package | PP bag, carton, wooden box, or as required |
| AppliC-A-Tion |
Machinery repair shops, excavator repair shops;Excavator;Hyundai |
| MOQ | Accept trial order |
| Type | Excavator oil seal |
| Benefits |
1. Excellent wear resistance, 2. Good running properties, 3. High resistance to chemicals, 4. Petroleum based fuels including petrol, diesel and LPG. |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Relative Brand |
Komatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,Mitsubishi and more. |
| Packaging | Nuetral packaging or OEM packaging |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
AppliC-A-Ted Models:
7-Series Crawler Excavator R290LC7A R300LC7 R305LC7 R360LC7 R360LC7A R370LC7 R8007AFS R800LC7A
9-Series Crawler Excavator R1200-9 R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH
R360LC9 R380LC9A R380LC9DM R380LC9MH R380LC9SH R390LC9 R430LC9 R430LC9A R430LC9SH R800LC-9 R800LC9FS
F-Series Crawler Excavator HX380L HX430L HYUNDAI
Features
A. Ozone and chemical resistance
B. Good temperature resistance
C. Excellent weather and water resistance
D. Dust resistance and sealing
E. Good Compressibility, Flexibility & Elasticity
F. Good shock proof

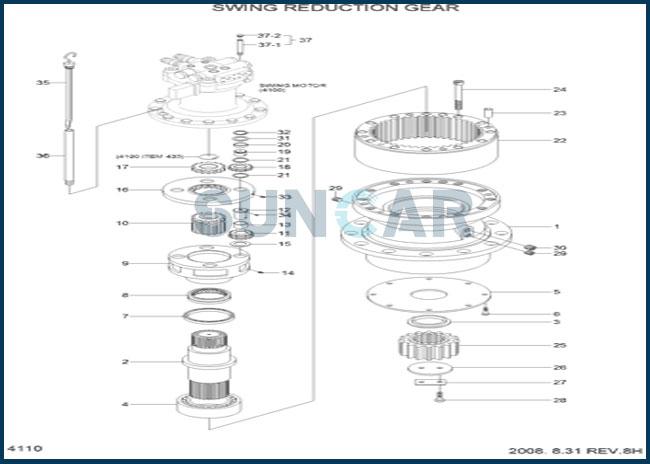

| Pos. | Part No | Qty | Parts name |
| *-2. | 31Q8-11141 | [1] | SWING REDUCTION GEAR |
| *-2. | 31Q8-11141AR | [1] | SWING REDUCTION GEAR |
| 1 | XKAQ-00451 | [1] | CASING |
| 2 | XKAQ-00760 | [1] | SHAFT-DRIVE |
| 3 | XKAQ-00146 | [1] | BEARING-ROLLER |
| 4 | XKAQ-00149 | [1] | SEAL-OIL |
| 5 | XKAQ-00027 | [1] | BEARING-ROLLER |
| 6 | XKAQ-00467 | [1] | CARRIER ASSY 2 |
| 7 | XKAQ-00468 | [1] | CARRIER 2 |
| 8 | XKAQ-00469 | [4] | GEAR-PLANET 2 |
| 9 | XKAQ-00470 | [4] | PIN ASSY 2 |
| N10. | XKAQ-00471 | [1] | PIN 2 |
| N11. | XKAQ-00472 | [1] | BUSHING 2 |
| 12 | XKAQ-00435 | [8] | WASHER-THRUST |
| 13 | XKAQ-00050 | [4] | PIN-SPRING |
| 14 | XKAQ-00473 | [1] | CARRIER ASSY 1 |
| 15 | XKAQ-00453 | [1] | CARRIER 1 |
| 16 | XKAQ-00454 | [3] | GEAR-PLANET 1 |
| 17 | XKAQ-00440 | [3] | PIN ASSY 1 |
| N18. | XKAQ-00441 | [3] | PIN 1 |
| N19. | XKAQ-00079 | [3] | BUSHING 1 |
| 20 | XKAQ-00417 | [3] | PLATE 1-SIDE |
| 21 | XKAQ-00416 | [3] | PLATE 2-SIDE |
| 22 | XKAQ-00041 | [3] | RING-STOP |
| 23 | XKAQ-00048 | [3] | PIN-SPRING |
| 24 | XKAQ-00455 | [1] | GEAR 2-SUN |
| 25 | XKAQ-00456 | [1] | GEAR 1-SUN |
| 26 | XKAQ-00457 | [1] | RING-GEAR |
| 27 | XKAQ-00466 | [12] | BOLT-SOCKET |
| 28 | XKAQ-00626 | [1] | COVER PLATE |
| 29 | XKAQ-00064 | [8] | BOLT-HEX |
| 30 | XKAQ-00627 | [1] | SPACER |
| 31 | XKAQ-00628 | [1] | RING-SPACER |
| 32 | XKAQ-00447 | [1] | PLATE 3-THRUST |
| 33 | XKAQ-00629 | [1] | GEAR-PINION |
| 34 | XKAQ-00761 | [1] | PLATE-LOCK |
| 35 | XKAQ-00756 | [4] | BOLT-HEX |
| 36 | XKAQ-00049 | [1] | PLUG |
| 37 | XKAQ-00066 | [2] | PLUG |
| 38 | XKAQ-00072 | [2] | PIN-KNOCK |
| N39. | XKAQ-00631 | [4] | BUSHING 2 |
| 40 | XKAQ-00800 | [1] | AIR BREATHER ASSY |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
