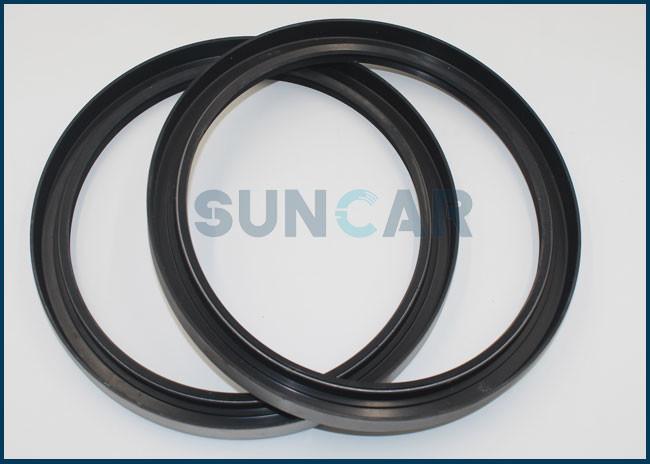

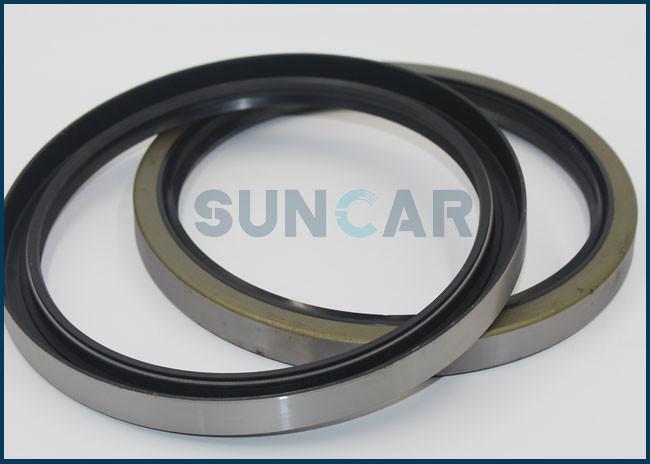

4411535 Hydraulic Oil Seals Fits Swing Device Transmission HITACHI ZH200-A
4411535 Hydraulic Oil Seal fits Swing Device Transmission HITACHI ZH200-A
Description: The hydraulic oil seal is in contact with the rotating shaft at a certain pressure with its narrow sealing contact surface (less than
0.5mm), and seals under the action of liquid lubriC-A-Tion. As an elastomer seal, the cross-sectional shape of the hydraulic oil seal and the
tightening spring enable the lip to have a better follow-up compensation performance to the shaft, so that a good sealing effect can be obtained
with a small radial force of the lip.
| Product name | 4411535 Hydraulic Oil Seal fits Swing Device Transmission HITACHI ZH200-A |
| Brand name | SUNCAR |
| MOQ | 10 Pcs/ Trial order is accepted |
| Feuture | Sealing Performance, Heat Resistance, gas tightness, water resistance, Oil Resistance |
| Relative type oil seal |
TC TB TCV TCN TCK VC DB DC DCY TC4Y MG WT SC SB DC DB WT WTT MOX MOD MOY TC4 TB4 KC KB TCJ VAJ OKC3 OC QLFY etc. |
| Terms of payment | L/C, D/A, D/P, T/T, Paypal,Western Union, |
| Packing | PP Bag Inside,Carton Box Outside. |
| Original place | Guangdong provice,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Availability |
Have enough stock for selling |
| Port of loading | Huangpu Port,China |
| Condition | 100% new |
| Abrasion | Good |
| Friction | Low |
| Standard or not standard | Standarded Products |
| Oil seal type | Tractor oil seal |
| Temparature | -40℃ ~ 120℃ (NBR) -20℃~250℃(FKM) |
| Shape | Round |
| Part number | 4411535 |
The Working Principle of Hydraulic Oil Seal:
1. In the free state, the inner diameter of the oil seal lip is smaller than the shaft diameter and has an interference.
2. After installation, the interference pressure of the edge of the hydraulic oil seal and the contraction force of the self-tightening spring produce a
certain radial pressure on the rotating shaft.
3. When working, the oil seal lip forms a sealing contact ring with a width of 0.25 to 0.5 mm under the action of radial pressure. Under the action
of lubriC-A-Ting oil pressure, the oil penetrates into the hydraulic oil seal blade and the shaft to form a thin oil film. The oil film is affected by the
surface tension of the oil, forming a "crescent" surface on the outer edge of the shaft and the oil seal cutting edge to prevent the oil from
overflowing and play a sealing role.
AppliC-A-Ted:
Automobiles
Industries
Households.
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union or through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder

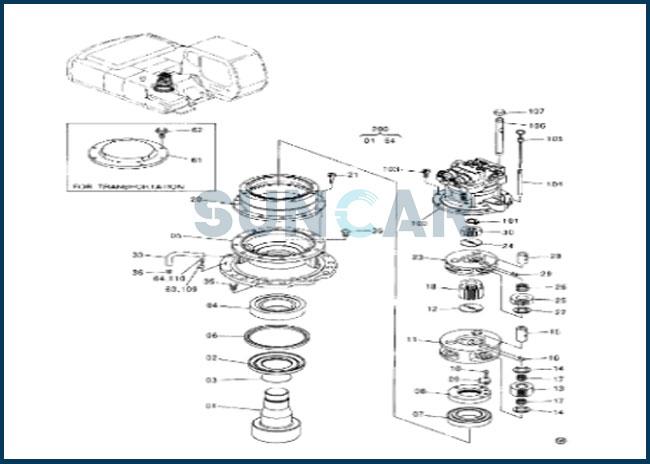

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 2044634 | [1] | SHAFT;PROP. |
| 2 | 3083742 | [1] | SLEEVE |
| 3 | A811120 | [1] | O-RING |
| 4 | 4402481 | [1] | BRG.;ROL. |
| 5 | 1027617 | [1] | HOUSING |
| 5 | 1032876 | [1] | HOUSING |
| 6 | 4411535 | [1] | SEAL;OIL |
| 7 | 4402637 | [1] | BRG.;ROL. |
| 8 | 3086064 | [1] | NUT |
| 9 | 4411122 | [1] | PLATE;LOCK |
| 10 | J901020 | [2] | BOLT |
| 11 | 1026662 | [1] | CARRIER |
| 12 | 4187590 | [1] | PLATE;THRUST |
| 13 | 3084729 | [3] | GEAR;PLANETARY |
| 14 | 4336929 | [6] | PLATE;THRUST |
| 15 | 4336925 | [3] | PIN |
| 15 | 4488904 | [3] | PIN |
| 16 | 4027427 | [3] | PIN;SPRING |
| 17 | 4427630 | [6] | BRG.;NEEDLE |
| 17 | 4461644 | [6] | BRG.;NEEDLE |
| 17 | 4631475 | [6] | BRG.;NEEDLE |
| 18 | 3080912 | [1] | GEAR;SUN |
| 20 | 1025957 | [1] | GEAR;RING |
| 21 | M341645 | [12] | BOLT;SOCKET |
| 23 | 1025912 | [1] | CARRIER |
| 24 | 4403371 | [1] | PLATE;THRUST |
| 25 | 3082517 | [3] | GEAR;PLANETARY |
| 26 | 4404506 | [3] | BRG.;NEEDLE |
| 27 | 4403082 | [3] | PLATE;THRUST |
| 28 | 4336923 | [3] | PIN |
| 29 | 4051262 | [3] | PIN;SPRING |
| 30 | 3084056 | [1] | GEAR;SUN |
| 33 | 3089362 | [1] | PIPE |
| 35 | 4445352 | [2] | PLUG |
| 36 | 94-2012 | [1] | PLUG |
| 61 | 3090308 | [1] | COVER |
| 62 | J011230 | [4] | BOLT;SEMS |
| 62 | J271230 | [4] | BOLT;SEMS |
| 63 | 3053093 | [1] | NAME-PLATE |
| 64 | M492564 | [2] | SCREW;DRIVE |
| 100 | 4398514 | [1] | MOTOR;OIL |
| 101 | 991342 | [1] | RING;RETAINING |
| 103 | M341228 | [8] | BOLT;SOCKET |
| 103 | 4614096 | [8] | BOLT;SOCKET |
| 104 | 4264452 | [1] | PIPE |
| 105 | 3074223 | [1] | GAUGE;LEVEL |
| 106 | 4332658 | [1] | PIPE |
| 107 | 4343365 | [1] | CAP |
| 109 | 3053093 | [1] | NAME-PLATE |
| 110 | M492564 | [2] | SCREW;DRIVE |
| 200 | 9196963 | [1] | SWING DEVICE |
