China LQ32W01021P1 Shaft Oil Seal For Kobelco Swing Reduction E235SR for sale

LQ32W01021P1 Shaft Oil Seal For Kobelco Swing Reduction E235SR

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 days after payment received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

LQ32W01021P1 Shaft Oil Seal for Kobelco Swing Device E235SR

Description: This is 2418Z1448 Oil Seal use in Swing Reduction for Kobelco.

Product name	LQ32W01021P1 Shaft Oil Seal for Kobelco Swing Device E235SR
Brand name	SUNCAR
MOQ	10 Pcs/ Trial order is accepted
Feuture	Sealing Performance, Heat Resistance, gas tightness, water resistance, Oil Resistance
Relative type oil seal	TC TB TCV TCN TCK VC DB DC DCY TC4Y MG WT SC SB DC DB WT WTT MOX MOD MOY TC4 TB4 KC KB TCJ VAJ OKC3 OC QLFY etc.
Terms of payment	L/C, D/A, D/P, T/T, Paypal,Western Union,
Packing	PP Bag Inside,Carton Box Outside.
Original place	Guangdong provice,China
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Availability	Have enough stock for selling
Port of loading	Huangpu Port,China
Condition	100% new
Abrasion	Good
Friction	Low
Standard or not standard	Standarded Products
Oil seal type	Tractor oil seal;Skeleton oil seal;Excavator oil seal
Temparature	-40℃ ~ 120℃ (NBR) -20℃~250℃(FKM)
SpecifiC-A-Tion	6-13000mm
AppliC-A-Tion	1. Heavy Equipment 2. Crawler Excavators 3. Dynamic Acera Excavators 5. Superstructure 6. Swing Reduction Assembly
Shape	Round
Part number	2418Z1448

AppliC-A-Ted Models:

SK290LC	SK850
SK290LC-6E	SK300
SK330LC	SK300LC
SK330LC-6E	KOBELCO

Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals.

Oil seal is an integral part in any rotating and moving part assembly. They close spaces between Stationary and moving components in mechanical equipment. An oil seal normally consists of Three basic components: The Sealing Element (the nitrile rubber part), the Metal CNH, and the Spring. It is a widely used sealing component.

Temperature: -50°C -300°C Depending On Rubber Material

Pressure: Up to 0.03 MPa

ReciproC-A-Tion Speed: 0-20m/S

Medias: Mineral oils, water, lubriC-A-Ting grease

SpecifiC-A-Tion: 6-13000mm

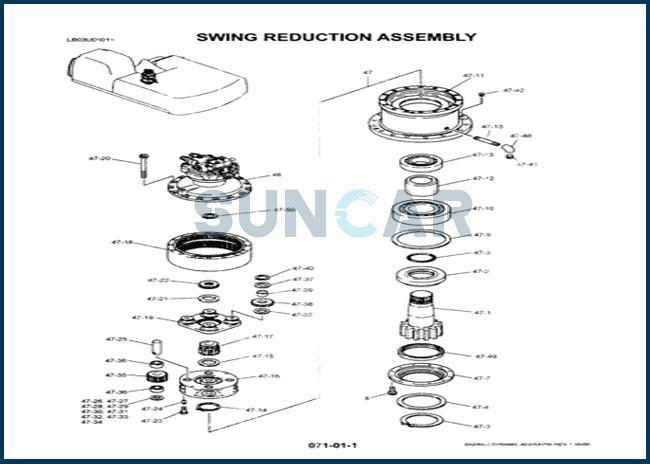

Relative Parts on Group:

Pos.	Part No	Qty	Parts name
46	LB15V00007F1	[1]	HYDRAULIC MOTOR
47	24100J16661F4	[1]	HYDRAULIC MOTOR
47-1.	2410J549	[1]	FINGER ASSY.
47-2.	2418P27419	[1]	SLEEVE
47-3.	2418R597D25	[1]	LOCKING RING
47-4.	2418T24206	[1]	PLATE
47-5.	ZD11G14000	[1]	O-RING,139.40mm ID x 145.60mm OD x 3.10mm
47-7.	2418N3633	[1]	RETAINER
47-8.	ZS23C12040	[14]	SCREW,Hex Socket Head, M12 x 40mm
47-9.	2418T22950	[1]	SPACER
47-10.	R25P0047D12	[1]	BEARING
47-11.	2414J2542	[1]	BEARING ASSY
47-12.	2418T22951	[1]	SPACER
47-13.	25Z494D16	[1]	BEARING
47-14.	ZR16X12000	[1]	SNAP RING
47-15.	2418T22971	[1]	SPACER
47-16.	2413J382	[1]	DIFF. SPIDER
47-17.	2401P1387	[1]	SUN GEAR
47-18.	2401J152	[1]	RING GEAR
47-19.	2413N491F1	[1]	SPIDER
47-20.	2420T4730D1	[15]	SCREW,M16 x 190mm
47-21.	2418T22970	[1]	SPACER
47-22.	2401P1388	[1]	SUN GEAR
47-23.	ZS13C10025	[8]	CAPSCREW
47-24.	2418T22949	[4]	LOCKING PLATE
47-25.	2410T493	[4]	SHAFT
47-26.	2420T7753D1	[1]	SHIM
47-27.	2420T7753D2	[1]	SHIM
47-28.	2420T7753D3	[1]	SHIM
47-29.	2420T7753D4	[1]	SHIM
47-30.	2420T7753D5	[1]	SHIM
47-31.	2420T7753D6	[1]	SHIM
47-32.	2420T7753D7	[1]	SHIM
47-33.	2420T7753D8	[1]	SHIM
47-34.	2420T7753D9	[1]	SHIM
47-35.	2401P1393	[4]	PINION
47-36.	2425R221	[8]	BEARING ASSY
47-37.	2418T22960	[8]	THRUST WASHER
47-38.	2401P1394	[4]	PINION
47-39.	2425R218	[4]	NEEDLE BEARING
47-40.	ZR16X06500	[4]	SNAP RING
47-41.	ZE82T12000	[1]	PLUG
47-42.	ZS83C20020	[2]	SCREW
47-47.	2420T6698D1	[1]	PIPE
47-48.	ZG31U12000	[1]	ELBOW
47-49.	2418Z1448	[1]	SEAL
47-50.	ZR16X04500	[1]	RING
. .	24100J13528R100	[1]	REPAIR KIT
