DEERE-4654421 Boom Cylinder Seal Repair Kit for DEERE 225DLC
DEERE-4654421 Boom Cylinder Seal Repair Kit for DEERE 225DLC
Description: This is a set of Boom Cylinder Seal Kit for DEERE 225DLC .There are regularly three cylinders for the excavator, boom cylinder,
arm cylinder, bucket cylinder.Arm cylinder is the top one, and it's usually be called as top cylinder;The bucket cylinder is the one that connects
and controls the bucket.We have large stock,welcome to inquiry!
| Product name | DEERE-4654421 Boom Cylinder Seal Repair Kit for DEERE 225DLC |
| Brand name | SUNCAR |
| OEM number | DEERE-4654421 |
| MOQ | Accept trial order |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Fits models |
DEERE 225DLC 220DW |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | FKM(-20~200°C),Silicone (-70~220°C) |
| Temperature | EPDM(-50~150°C),PU(-40~90°C) |
| Temperature | NBR(-40~120°C),FFKM(-20~320°C) |
| AppliC-A-Tion |
Excavators, Deere;Consturction machinery repair store;Resell store |
| Stock | In rich stock |
| Make up | Packing rod;dust seal;O-ring,back-up ring;piston ring;wear ring |
| Condition | A brand-new, unused, unopened, undamaged |
| Style |
Hydraulic boom cylinder seal kit |

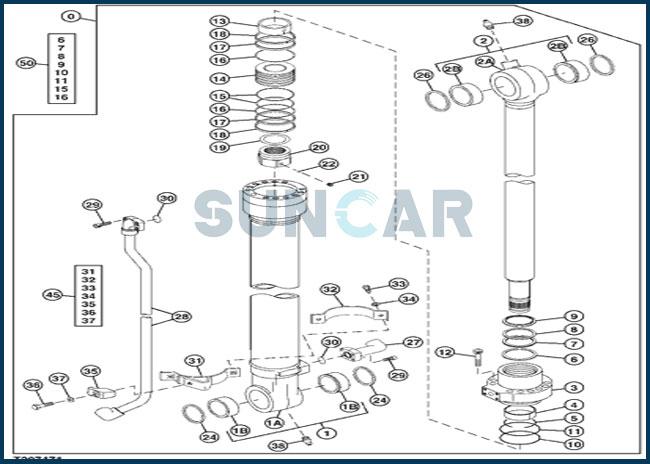

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | ........ | [1] | Cylinder |
| 1 | 1134307 | [1] | Tube |
| 1 | PG201179 | [1] | Hyd Cylinder Barrel Reman |
| 1A. | ........ | [1] | Tube |
| 1B. | 4352398 | [2] | Bushing |
| 2 | 1134302 | [1] | Hydraulic Cylinder Rod |
| 2 | PG201180 | [1] | Hyd Cylinder Rod Reman |
| 2A. | ........ | [1] | Rod |
| 2B. | 4355875 | [2] | Bushing |
| 3 | H180210 | [1] | Hydr. Cylinder Rod Guide |
| 4 | AT264272 | [1] | Bushing |
| 5 | TH104944 | [1] | Snap Ring |
| 6 | H227911 | [1] | Seal |
| 7 | 4S00660 | [1] | Packing |
| 8 | AT309614 | [1] | Back-Up Ring |
| 9 | H155911 | [1] | Seal |
| 10 | AT264342 | [1] | O-Ring |
| 11 | AT264359 | [1] | Back-Up Ring |
| 12 | 19M8931 | [12] | Screw |
| 13 | H155920 | [1] | Ring |
| 14 | H155919 | [1] | Seal |
| 15 | H227626 | [1] | Piston |
| 16 | AT264355 | [1] | Seal |
| 17 | H155916 | [2] | Back-Up Ring |
| 18 | H227906 | [2] | Ring |
| 19 | AT264356 | [2] | Wear Ring |
| 20 | 22M6684 | [1] | Set Screw |
| 21 | T13624 | [1] | Ball |
| 23 | TH102446 | [2] | Seal |
| 25 | TH102445 | [2] | Seal |
| 26 | 4680374G | [1] | Oil Line |
| 27 | 4680375G | [1] | Oil Line |
| 28 | AT264348 | [1] | O-Ring |
| 29 | 19M8448 | [4] | Screw |
| 30 | AT264360 | [1] | O-Ring |
| 31 | 19M8337 | [4] | Screw |
| 32 | 1134306 | [1] | Band |
| 33 | H163434 | [1] | Band |
| 34 | 19M7550 | [2] | Cap Screw |
| 35 | 12M7066 | [2] | Lock Washer |
| 36 | 0236915G | [2] | Half Clamp |
| 37 | 19M4789 | [1] | Cap Screw |
| 38 | 12H317 | [1] | Lock Washer |
| 39 | TH100074 | [1] | LubriC-A-Tion Fitting |
| 60 | PG200500G | [1] | Hydraulic Cylinder Reman |
| 80 | 1134305 | [1] | Band Kit |
| 90 | 4654421 | [1] | Seal Kit |
