DEERE 4660103 Boom Cylinder Seals Repair Kit for 600C 550LC
DEERE 4660103 Boom Cylinder Seals Repair Kit for 600C 550LC
Description: 4660103DEERE cylinder seal repair kits.We can make any seal kit also if out of production or no more available originals in
the OEM. It will be sufficent to send us a sample, also partially or totally used, to determine the dimensions, profiles and materials and we can
immediately reproduce them.
If you have any requirement of packing and material,pls feel free to contact us,we will try our best to meet your demand!
Choosing us as your partner will guarantee you an important competitive advantage on the market!
| Product name | DEERE 4660103 Boom Cylinder Seals Repair Kit for 600C 550LC |
| Brand name | SUNCAR |
| OEM number | 4660103 |
| AppliC-A-Ted models | DEERE 600C 550LC |
| Fit Brand | JOGH DEERE; |
| MOQ | Accept trial order |
| Temperature | -40°C ~ 250 °C. |
| Material | PU;VMQ;ACM;NBR;HNBR,;PTFE;Rubber |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder |
| CertifiC-A-Tion | ISO9001 |
| Market | Those in need |
|
Availability |
In stock |
| AppliC-A-Tion |
Excavator machinery, Logger;DEERE;Consturction machinery repair store;Resell store |
| Color | Standard color |
| Condition | A brand-new, unused, unopened, undamaged |
| Style |
Stabilizer cylinder seal kit |
About Cylinder Seal Kit:
The most common use of hydraulic cylinder seals kits is in oil and pressure systems. In general, these seals are made of polytetrafluoroethylene (PTFE), silicone, polyurethane, and rubber. Common types of seals available are piston, rod, wiper, O-Ring, bonded, and symmetric seals.
Rod seals are commonly used in mobile hydraulics, standard cylinders, and molding machines. Likewise, piston seals can be used to seal dynamic pressure on either one side or both sides.
Bonded seals are beneficial for systems operating under high pressure. O-ring seals are beneficial for static machinery that usually does not have moving components. Besides, the symmetric one is a common seal for linear operations.
It is also a substitutable option for piston and rod seals. Moreover, wiper seals, also known as scarper seals, are usually fitted on the cylinder head at the external side that contacts the piston rod.
Benefits of Hydraulic Cylinder Seals Kits
1. Pressure flexibility and contamination prevention
2. Leakage Control and Blowout Prevention
3. Affordability and Simple Maintenance
4. Highly Adaptable and Durable
5. Water-Resistance and Safety

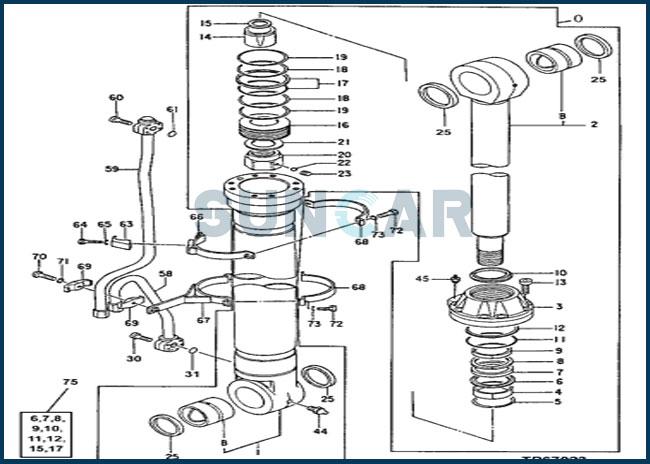

Profucts Relative Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 0 | 4354802JEX | [1] | Hydraulic Cylinder Reman |
| 1 | 643001 | [1] | Hydraulic Cylinder Barrel |
| 1B. | 4609094 | [1] | Bushing |
| 2 | 643003 | [1] | Rod |
| 2B. | 4609093 | [1] | Bushing |
| 3 | 643005 | [1] | Hydr. Cylinder Rod Guide |
| 4 | 643006 | [1] | Bushing |
| 5 | 133709 | [1] | Snap Ring |
| 6 | 967803 | [1] | Back-Up Ring |
| 7 | 643023 | [1] | Packing |
| 8 | 643009 | [1] | Wear Ring |
| 9 | 643010 | [1] | Ring |
| 10 | 4438197 | [1] | Ring |
| 11 | A811170 | [1] | O-Ring |
| 12 | TH0332704 | [1] | Back-Up Ring |
| 13 | 259304 | [8] | Cap Screw |
| 14 | 643012 | [1] | Bearing |
| 15 | 643013 | [1] | Seal |
| 16 | 643014 | [1] | Piston |
| 17 | 332706 | [1] | Seal |
| 18 | 643015 | [2] | Ring |
| 19 | 332708 | [2] | Ring |
| 20 | 353009 | [1] | Nut |
| 21 | 353010 | [1] | Shim |
| 22 | 353011 | [1] | Ball |
| 23 | 353012 | [1] | Set Screw |
| 25 | 4205000 | [4] | Seal |
| 30 | M800636 | [4] | Screw |
| 30 | 19M8448 | [4] | Screw |
| 31 | AT264348 | [1] | O-Ring |
| 44 | TH100074 | [1] | LubriC-A-Tion Fitting |
| 45 | 643016 | [1] | Bleed Valve |
| 58 | ........ | [1] | Oil Line |
| 58 | 931906 | [1] | Oil Line |
| 59 | 643022 | [1] | Oil Line |
| 60 | 19M6619 | [4] | Screw |
| 61 | AT264254 | [1] | O-Ring |
| 63 | 0309219J | [1] | Half Clamp |
| 64 | 19M7363 | [1] | Cap Screw |
| 65 | 12M7058 | [1] | Lock Washer |
| 66 | 643020 | [1] | Clamp |
| 67 | 643021 | [1] | Clamp |
| 68 | 417613 | [2] | Half Clamp |
| 69 | 0236915J | [2] | Holder |
| 70 | 19M7291 | [1] | Cap Screw |
| 71 | 12H317 | [1] | Lock Washer |
| 72 | 19M7550 | [4] | Cap Screw |
| 73 | 12M7066 | [4] | Lock Washer |
| 75 | 4660103 | [1] | Seal Kit |
