145-15-42810 1451542810 Gearbox Seal Ring For D375A-6 D275A-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
145-15-42810 1451542810 Gearbox Seal Ring for D375A-6 D275A-2
Description:
145-15-42810 1451542810 seal ring
| Product name | 145-15-42810 1451542810 Gearbox Seal Ring for D375A-6 D275A-2 |
| Brand | SUNCAR |
| MOQ | Trial order is avaliable |
| Transport ways | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Place of origin |
Guangdong provice,China |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| Sample | Provide |
| Compatible model | Bulldozers D155AX D275A D375A D475A D475ASD D65A D65E D65P D75A Compactors WF450T WF550 WF550T Crawler loaders D65S D75S Wheel dozers WD500 Wheel loaders 545 WA450 WA470 WA500 Komatsu |
| Supply ability | 550 pcs per week |
| Material | PTFE etc. |
| Seal style | Hydraulic gasket seal;Transmission seal;Gearbox seal |
| Compatible equipment | Bulldozers , compactors, crawler loaders, dump trucks, graders, wheel dozers, wheel loaders |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder
Different Types Of Hydraulic Seals:

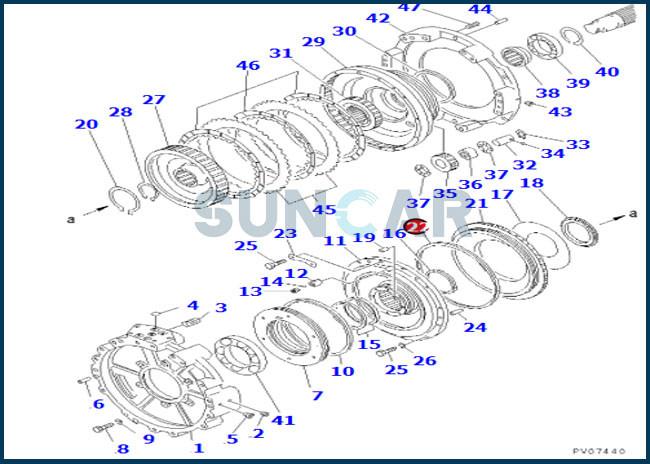

| Part Number | Name | Qty | |
| 145-15-00301 | TRANSMISSION ASS'Y | 1 | |
| 145-15-00300 | TRANSMISSION ASS'Y | 1 | |
| THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS. | |||
| 15B-15-00210 | • HOUSING ASS'Y | 1 | |
| 1 | •• HOUSING | 1 | |
| 2 | 144-15-21320 | •• PLUG | 1 |
| 3 | 569-15-41310 | • SLEEVE | 9 |
| 4 | 07000-73022 | • O-RING | 5 |
| 5 | 234-15-12790 | • SCREW | 2 |
| 6 | 04020-01228 | • PIN,DOWEL | 2 |
| 7 | 15B-15-11260 | • CAGE | 1 |
| 8 | 01010-51030 | • BOLT | 6 |
| 9 | 01602-21030 | • WASHER,SPRING | 6 |
| 10 | 07018-12605 | • RING,SEAL | 1 |
| 15B-15-00220 | • CYLINDER ASS'Y | 1 | |
| 11 | 15B-15-12261 | •• CYLINDER | 1 |
| 12 | 145-15-42930 | •• CARTRIDGE | 1 |
| 13 | 568-15-11380 | •• PLUG | 1 |
| 14 | 04260-00952 | •• BALL | 1 |
| 15 | 07018-21606 | • RING,SEAL | 2 |
| 16 | 145-15-42820 | • RING,SEAL (K2) | 1 |
| 17 | 234-15-12270 | • SPRING | 1 |
| 18 | 15B-15-12160 | • SPACER | 1 |
| 19 | 234-15-12810 | • PIN | 6 |
| 20 | 04070-00105 | • RING,SNAP | 1 |
| 21 | 15B-15-12730 | • PISTON | 1 |
| 22 | 145-15-42810 | • RING,SEAL (K2) | 1 |
| 23 | 145-15-42910 | • PLATE | 1 |
| 24 | 04020-01024 | • PIN,DOWEL | 3 |
| 25 | 01010-51035 | • BOLT | 15 |
| 26 | 01643-31032 | • WASHER | 15 |
| 27 | 144-15-22421 | • GEAR | 1 |
| 28 | 04064-06525 | • RING,SNAP | 1 |
| 29 | 15B-15-12351 | • CARRIER | 1 |
| 30 | 144-15-11290 | • RING,SEAL | 1 |
| 31 | 145-15-42150 | • GEAR | 1 |
| 32 | 145-15-42550 | • SHAFT | 3 |
| 33 | 04065-03212 | • RING,SNAP | 3 |
| 34 | 04260-00635 | • BALL | 3 |
| 35 | 145-15-42440 | • GEAR | 3 |
| 36 | 09232-03225 | • BEARING,NEEDLE | 3 |
| 37 | 09233-13220 | • WASHER,THRUST | 6 |
| 37 | 144-15-22571 | • WASHER,THRUST | 6 |
| 38 | 145-15-42180 | • SPACER | 1 |
| 39 | 06042-01015 | • BEARING | 1 |
| 40 | 144-15-22860 | • RING,SNAP | 1 |
| 41 | 06040-06024 | • BEARING | 1 |
| 145-15-00120 | • HOUSING ASS'Y | 1 | |
| 42 | •• HOUSING | 1 | |
| 43 | 145-14-11320 | •• PLUG | 2 |
| 44 | 04020-01228 | • PIN,DOWEL | 2 |
| 45 | 287-15-12990 | • PLATE | 2 |
| 46 | 424-15-12710 | • DISC | 3 |
| 47 | 170-14-22330 | • SPRING,(L=41.3) | 12 |
