CA3J4458 3J-4458 3J4458 Press-in Dust Seal Single Lip Wiper Ring fits C-A-T
CA3J4458 3J-4458 3J4458 Press-in Dust Seal Single Lip Wiper Ring fits C-A-T
Description:
Pin seals are used to lubriC-A-Te swing appliC-A-Tions, such as connecting rod pin joints. This seal prevents external contaminants from entering the
joint by slowly squeezing the grease during operation. Preventing contaminants from entering can extend the life of the joint.
Characteristic:
C-A-T® pin seals are made of tough TPU polyurethane, which has excellent wear resistance and cut resistance. This patience is essential for long service life in a messy and dusty environment.
The C-A-T® Sealing System uses a robust design, testing and verifiC-A-Tion process. Please purchase the latest original C-A-T® seals to protect your investment.
Products Details :
| Product name | CA3J4458 3J-4458 3J4458 Press-in Dust Seal Single Lip Wiper Ring fits C-A-T |
| Brand | SUNCAR |
| Part number | CA3J4458 3J-4458 3J4458 |
| Material |
Polyurethane rubber |
| Hardness | 90 degree |
| Place original | Guangzhou,China |
| Loading port | Huangpu port,China |
| Features | Wide range use,seal oil performance;high temp. resistance/low temp. resistance |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Style | Seal ring |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Fit equipment model | Wheel Tractor-Scraper 657 657B |
| Size | Standard size |

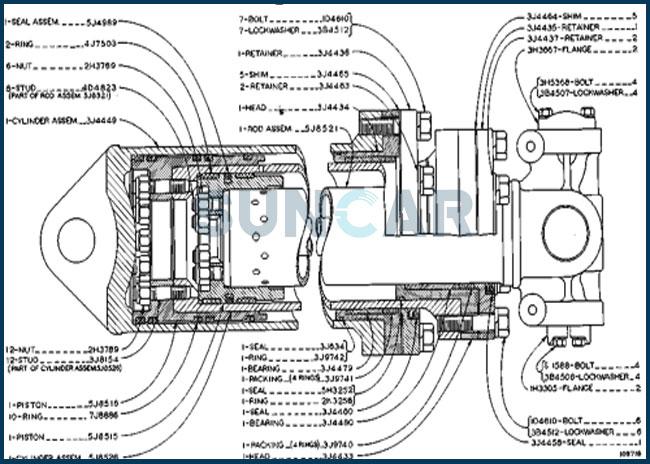

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 5J-4989 | [1] | SEAL ASSEM. | |
| 4J-7503 | [2] | RING | |
| 2H-3789 | [6] | NUT | |
| 4D-4823 | [8] | STUD | |
| (PART OF ROD ASSEM. 5J8521) | |||
| 3J-4449 R | [1] | CYLINDER ASSEM. | |
| 2H-3789 | [12] | NUT | |
| 3J-8154 | [12] | STUD | |
| (PART OF CYLINDER ASSEM.5J8526) | |||
| 5J-8516 | [1] | PISTON | |
| 7J-8886 | [10] | RING | |
| 5J-8515 | [1] | PISTON | |
| 5J-8526 | [1] | CYLINDER ASSEM. | |
| 1D-4610 | [7] | BOLT | |
| 3B-4512 | [7] | LOCKWASHER | |
| 3J-4436 | [1] | RETAINER | |
| 3J-4465 | [5] | SHIM | |
| 3J-4463 | [2] | RETAINER | |
| 3J-4434 | [1] | HEAD | |
| 5J-8521 | [1] | ROD ASSEM. | |
| 3J-0634 | [1] | SEAL | |
| 3J-9742 | [1] | RING | |
| 3J-4479 | [1] | BEARING | |
| 3J-9741 | [1] | PACKING (4 RINGS) | |
| 5H-3252 | [1] | SEAL | |
| 2K-3258 | [1] | RING | |
| 3J-4460 | [1] | SEAL | |
| 3J-4480 | [1] | BEARING | |
| 3J-9740 | [1] | PACKING (4 RINGS) | |
| 3J-4433 | [1] | HEAD | |
| 3J-4464 | [5] | SHIM | |
| 3J-4435 | [1] | RETAINER | |
| 3J-4437 | [2] | RETAINER | |
| 3H-3667 | [2] | FLANGE | |
| 3H-5368 | [4] | BOLT | |
| 3B-4507 | [4] | LOCKWASHER | |
| 0S-1588 | [4] | BOLT | |
| 3B-4506 | [4] | LOCKWASHER | |
| 1H-3305 | [2] | FLANGE | |
| 1D-4610 | [6] | BOLT | |
| 3B-4512 | [6] | LOCKWASHER | |
| 3J-4458 | [1] | SEAL | |
| R | REMFG PART MAY BE AVAILABLE | ||
| (EACH INCLUDES) | |||
| 42 | 4V-2883 | [1] | BUSHING |
| 43 | 5V-1874 | [1] | BUSHING |
| 44 | 7P-3454 | [1] | BUSHING |
| B | USE AS REQUIRED | ||
| M | METRIC PART | ||
| Y | SEPARATE ILLUSTRATION |
