CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T
CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T
Description:
Seal shape: Type A-Single lip wiper ring
Prevent external contaminants from entering the system. The single-lip (lip refers to the protruding part or edge of the seal) wiper ring cleans the
connecting rod when it is retracted. The double-lip dust wiper cleans and seals the oil when the connecting rod is retracted to eliminate the
phenomenon of "oil leakage" (external leakage). The double-lip wiper ring is retained by the bearing fixture. These polyurethane scrapers have
metal on the outside to increase strength. They are often called "sealed" wiper rings (covered with metal) or "J"-shaped wiper rings (the metal is
usually "J"-shaped when viewed in cross section).
Products Details :
| Product name | CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T |
| Part number | CA3J4460 3J-4460 3J4460 |
| Fit brand | C-A-T |
| Section | Starting and electrical system |
| Material |
Polyurethane rubber |
| Hardness | 90 degree |
| Place original | Guangzhou,China |
| Loading port | Huangpu port,China |
| Features | Wide range use,seal oil performance;high temp. resistance/low temp. resistance |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Style | Seal ring |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Fit equipment model | Wheel Scraper 657 657B 657E C-A-T |
| Size | Standard size |

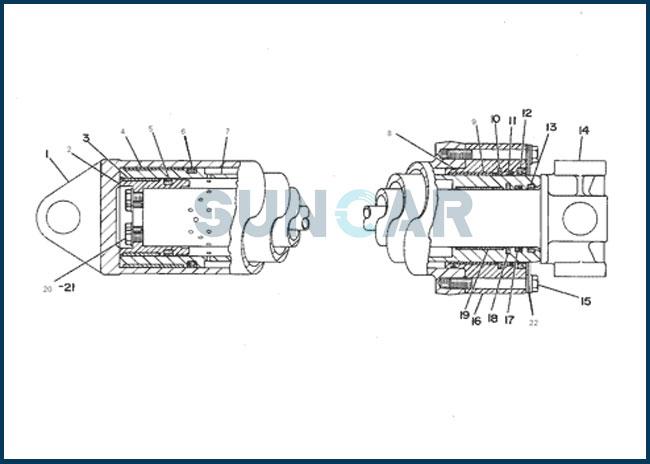

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 3G-8826 | [1] | CYLINDER AS |
| 2 | 3G-8508 | [1] | PISTON |
| 3 | 4T-6930 C | [1] | RING-WEAR |
| 4 | 4T-6932 C | [1] | RING-WEAR |
| 5 | 4T-4144 | [1] | SEAL AS |
| 6 | 8J-5644 | [1] | SEAL AS |
| 5J-7014 | [1] | SEAL | |
| 7 | 3G-8825 | [1] | CYLINDER AS |
| 8 | 3J-0634 | [1] | SEAL-O-RING |
| 3J-9742 | [1] | RING-BACKUP | |
| 9 | 4T-6931 C | [1] | RING-WEAR |
| 10 | 3G-8506 | [1] | SEAL-RING |
| 11 | 3G-4627 | [1] | SEAL-U-CUP |
| 12 | 3J-4460 | [1] | SEAL-LIP TYPE |
| 13 | 3G-8505 | [1] | WIPER-ROD |
| 14 | 3G-8824 | [1] | ROD AS |
| 9S-8003 | [2] | PLUG (1/2-20-THD) | |
| 1J-9671 | [2] | SEAL-O-RING | |
| 15 | 1D-4616 C | [6] | BOLT (3/4-10X6-IN) |
| 5P-8248 C | [12] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 16 | 3G-8503 | [1] | HEAD |
| 17 | 6J-1450 | [1] | SEAL-U-CUP |
| 18 | 3G-8507 | [1] | SEAL-RING |
| 19 | 4T-6929 C | [1] | RING-WEAR |
| 20 | 1A-1135 | [6] | BOLT (5/8-11X2-IN) |
| 21 | 5P-8247 C | [6] | WASHER-HARD (17X32X3.5-MM THK) |
| 22 | 3J-4463 C | [3] | RETAINER |
| C | CHANGE FROM PREVIOUS TYPE | ||
| R | REMANUFACTURED PART MAY BE AVAILABLE |
