173-3454 1733454 Swing Motor Seal Repair Kit Fits M5X130CHB E320C E320D

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

173-3454 1733454 Swing Motor Seal Repair Kit fits M5X130CHB E320C E320D

Description:

This is a seal kit for swing motor,which has good sealing oil perdormance.Swing motors are hydraulic motors that form the proper turning force of

excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.Our product conform to national

production standards, using high-quality raw materials production.

Product name	173-3454 1733454 Swing Motor Seal Repair Kit fits M5X130CHB E320C E320D
Brand name	SUNCAR
MOQ	Accept trial order
Feuture	Sealing performance/Wear resistance/High&Low temperature resistence
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Payment	Accept L/C, Paypal, T/T, Western Union, Bank Transfer
Paking details	PP bag inside,carton box outside.
Weight	0.42kg
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Availability	In rich stock
Style	Hydraulic, Swing motor
Compatible equipment	Excavator C-A-T

AppliC-A-Ted Models:

E320C	M5X130CHB	EC460BLC
EC210BLC	E320D2	E320D

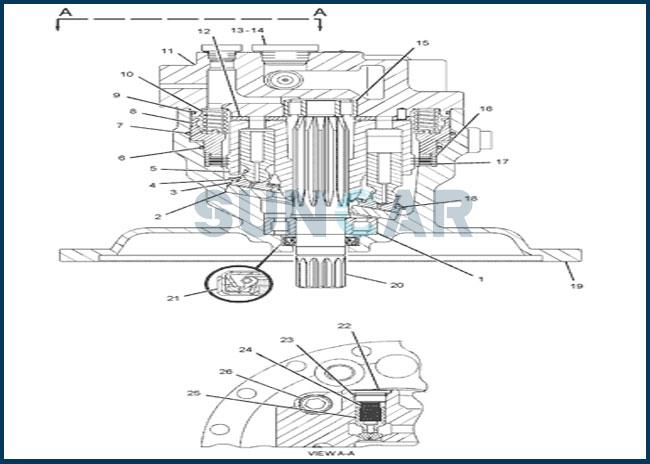

Relative Swing Motor Seal Kit Part Numbers:

Pos.	Part No	Qty	Parts name
1	122-5318	[1]	BEARING
2	173-3444	[1]	PLATE
3	334-9981	[1]	PISTON AS-PUMP
4	173-3443	[1]	PLATE
5	173-3441	[1]	BARREL
6	5I-8426 J	[1]	SEAL-O-RING
7	5I-8417 J	[1]	SEAL-O-RING
8	177-2584	[1]	PISTON-BRAKE
9	5I-8623 J	[1]	SEAL-O-RING
10	126-2055	[20]	SPRING
11	173-3439	[1]	HEAD GP-MOTOR
	095-0882	[2]	PIN-SPRING
12	173-3445	[1]	PLATE-VALVE
13	446-7230	[2]	PLUG
14	3J-1907 J	[2]	SEAL-O-RING
15	5I-8625	[1]	BEARING
16	173-3451	[4]	PLATE-SEPARATOR
17	173-3450	[3]	PLATE-FRICTION
18	173-3442	[1]	SPRING
19	465-5181	[1]	BODY
20	173-3440	[1]	SHAFT
21	173-3447	[1]	SEAL-OIL
22	094-1900	[2]	PLUG
23	095-1595	[2]	SEAL-O-RING
24	7Y-4268	[2]	SPRING
25	7Y-4267	[2]	VALVE
26	7Y-5221 M	[4]	BOLT-SOCKET HEAD (M20X2.5X45-MM)

			AVAILABLE REPAIR KIT(S):
	173-3454 J	[1]	KIT-SEAL (SWING MOTOR)
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
