VOE14552332 14552332 SUNCARSUNCARVOLVO Swing Motor Seal Repair Kit For EC460B
VOE14552332 14552332 SUNCARSUNCARSUNCARSUNCARVOLVO Swing Motor Seal Repair Kit for EC460B
Description:
This is a seal kit for swing motor,which has good sealing oil perdormance.Swing motors are hydraulic motors that form the proper turning force of
excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.Our product conform to national
production standards, using high-quality raw materials production.
| Product name | VOE14552332 14552332 SUNCARSUNCARSUNCARSUNCARVOLVO Swing Motor Seal Repair Kit for EC460B |
| Brand name | SUNCAR |
| Fit brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Part number | VOE14552332 14552332 |
| Alternative number | 1119004 |
| MOQ | Accept trial order |
| Feuture |
Sealing performance/Wear resistance/High&Low temperature resistence |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Payment | Accept L/C, Paypal, T/T, Western Union, Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Weight | 0.42kg |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Availability |
In rich stock |
| Style | Hydraulic, Swing motor |
| Compatible equipment |
Excavator C-A-T |
AppliC-A-Ted Models:
| EC460B | EC210C | EC460C |
| EC235C | FC2421C | ECR235C |
| EC220D | EC235D | ECR235D |
| EC210D | EC200D | EW205E |
| EW220E | EW240E | EC460B |
| EW205D | EC220E | ECR235E |
| PL4608 | FC2121C | PL4611 |
| EC210B | EC460B | EC200B |

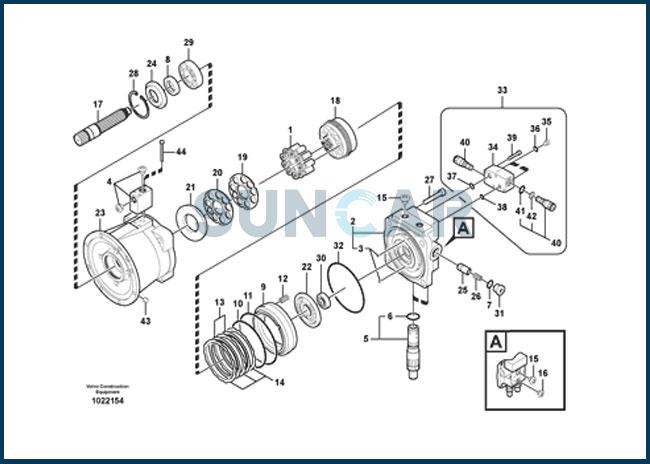

Relative Parts On Group:
| Pos. | Part No | Qty | Parts name |
| VOE14552686 | [1] | Swing motor | |
| 1 | VOE14594933 | [1] | Piston |
| 2 | VOE14550669 | [1] | Casing |
| 3 | SA7223-00660 | [2] | Spring pin |
| 4 | VOE14550664 | [1] | Valve |
| VOE14594353 | [2] | Plug | |
| 5 | VOE14518516 | [2] | Relief valve |
| 6 | VOE990582 | [1] | O-ring |
| 7 | VOE983526 | [2] | O-ring |
| 8 | VOE14529764 | [1] | Seal |
| 9 | VOE14512953 | [1] | Piston |
| 10 | VOE14693875 | [1] | O-ring |
| 11 | SA8230-25540 | [1] | O-ring |
| 12 | VOE14529763 | [20] | Spring |
| 13 | VOE14529762 | [3] | Plate |
| 14 | VOE14529761 | [4] | Plate |
| 15 | VOE14594354 | [3] | Plug |
| 16 | VOE14612051 | [1] | Plug |
| 17 | VOE14529774 | [1] | Shaft |
| 18 | VOE14529773 | [1] | Cylinder |
| 19 | VOE14529772 | [1] | Spring |
| 20 | VOE14529771 | [1] | Plate |
| 21 | VOE14529770 | [1] | Plate |
| 22 | VOE14529769 | [1] | Plate |
| 23 | VOE14529768 | [1] | Casing |
| 24 | VOE14552322 | [1] | Cover |
| 25 | SA8230-14160 | [2] | Control plunger |
| 26 | SA8230-14150 | [2] | Spring |
| 27 | SA8230-25820 | [4] | Bolt |
| 28 | VOE14529766 | [1] | Ring |
| 29 | SA8230-26520 | [1] | Roller bearing |
| 30 | VOE14529765 | [1] | Bearing |
| 31 | SA8230-25680 | [2] | Plug |
| 32 | VOE14552321 | [1] | O-ring |
| 33 | VOE14558299 | [1] | Valve |
| 34 | VOE14550661 | [1] | Casing |
| 35 | VOE14550218 | [2] | Plug |
| 36 | SA8230-26191 | [2] | O-ring |
| 37 | VOE14529757 | [2] | O-ring |
| 38 | VOE14533603 | [2] | O-ring |
| 39 | SA8240-03610 | [4] | Screw |
| 40 | VOE14558298 | [2] | Valve |
| 41 | VOE983509 | [1] | O-ring |
| 42 | VOE14625240 | [1] | Ring |
| 43 | VOE14529759 | [1] | Plug |
| 44 | VOE14511643 | [3] | Screw |
| VOE14552332 | [1] | Sealing kit |
