233-71-00060 2337100060 Drawbar Side Shift Cylinder Seal Repair Kit
233-71-00060 2337100060 Drawbar Side Shift Cylinder Seal Repair Kit.
Description: This service kit is articulate cylinder seal kit.Compatible for KOMATSU GD31-1.Hydraulic cylinder seals kits are essential
components of different mechanical devices, machinery, and equipment. People choose these seals because of their effective sealing
function.The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain
its power.
| Part name | 233-71-00060 2337100060 Drawbar Side Shift Cylinder Seal Repair Kit |
| Brand | SUNCAR |
| Fits brand | KOMATSU. |
| Part number | 233-71-00060 2337100060 |
| Style | Blade side shift cylinder seal kit;Hydraulic cylinder seal kit |
| Fits models | Graders GD31-1 KOMATSU |
| Compatible equipment | KOMATSU construction equipment;GRADERS |
| Place of original | China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Terms of payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P |
|
Feature |
Durability,hard-wearing,higher-toughness |
|
Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
|
Availability |
In rich stock |
Relative Seal Kit:
1. Boom cylinder seal kit
2. Arm cylinder seal kit
3. Bucket cylinder seal kit
4. Blade cylinder seal kit
5. Hydraulic seal kit/Main pump seal kit
6. Regulator seal kit
7. Swing motor seal kit
8. Travel motor seal kit
9. Center joint seal kit
10. Control valve seal kit
11. Track adjuster seal kit
12. Piolve valve seal kit/PPC valve seal kit
13. Foot valve seal kit/PPC travel
14. Pilot pump seal kit
15. Hammer seal kit/Hydraulic breaker seal kit
16. Crankshaft front oil seal
17. Crankshaft rear oil seal
18. Blade lift cylinder kit
19. Blade tilt cylinder kit
20. Blade steering cylinder kit

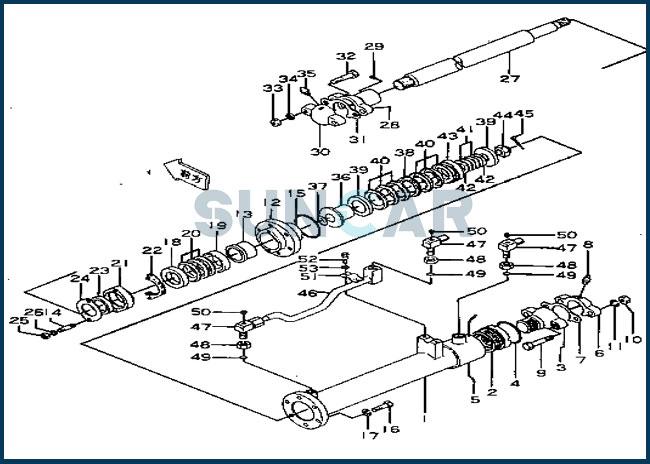

Parts on Group Cylinder:
| Pos. | Part No | Qty | Parts name |
| 233-71-00060 | [1] | CYLINDER ASS'Y | |
| 1. | 233-71-12110 | [1] | CYLINDER |
| 2. | 233-71-12130 | [1] | COVER |
| 3. | 233-71-12140 | [1] | JOINT |
| 4. | 07000-05085 | [1] | O-RING (KIT) |
| 5. | 04059-01610 | [1] | WIRE |
| 7. | 232-71-11340 | [4] | SHIM, 0.2MM |
| 8. | 07020-00000 | [1] | FITTING |
| 9. | 01000-31665 | [2] | BOLT |
| 10. | 01500-31613 | [2] | NUT |
| 11. | 01602-01648 | [2] | WASHER |
| 233-71-00070 | [1] | COVER ASS'Y | |
| 12 | 233-71-12120 | [1] | COVER |
| 13 | 306-61-12221 | [1] | BUSHING |
| 13 | 232-60-91330 | [1] | BUSHING |
| 14 | 01100-31240 | [2] | STUD |
| 15. | 07000-05095 | [1] | O-RING (KIT) |
| 16. | 01000-31235 | [6] | BOLT |
| 17. | 01602-01236 | [6] | WASHER |
| 18. | 232-27-12220 | [1] | RETAINER |
| 19. | 306-61-12231 | [1] | SEAT |
| 19. | 232-60-93130 | [1] | SEAT |
| 20. | 306-61-12241 | [3] | PACKING |
| 20. | 232-60-91340 | [3] | PACKING |
| 21. | 233-71-11230 | [1] | GLAND |
| 22. | 233-71-11240 | [10] | SHIM, 0.5MM (KIT) |
| 23. | 232-27-12250 | [1] | SEAL |
| 24. | 233-71-11250 | [1] | PLATE |
| 25. | 01500-31210 | [2] | NUT |
| 233-71-00080 | [1] | PISTON ROD ASS'Y | |
| 27 | 233-71-12210 | [1] | ROD |
| 28 | 233-71-12240 | [1] | BODY |
| 29 | 01324-00816 | [1] | SCREW |
| 36. | 233-71-12220 | [1] | PISTON |
| 37. | 07000-03030 | [1] | O-RING (KIT) |
| 38. | 233-71-12230 | [1] | SEAT |
| 39. | 261-61-13230 | [2] | RETAINER |
| 40. | 232-71-11242 | [6] | V-PACKING |
| 41. | 233-71-11350 | [6] | SHIM, 0.6MM (KIT) |
| 42. | 233-71-11360 | [2] | SHIM, 0.2MM (KIT) |
| 43. | 233-71-11370 | [1] | WASHER |
| 44. | 01511-42415 | [1] | NUT |
| 45. | 04050-05045 | [1] | PIN |
| 46 | 233-71-12311 | [1] | TUBE |
| 47 | 233-27-12420 | [3] | ELBOW |
| 48 | 01501-42009 | [3] | NUT |
| 49 | 07000-03017 | [3] | O-RING (KIT) |
| 50 | 07042-00108 | [3] | PLUG |
| 51 | 232-71-11611 | [1] | BAND |
| 52 | 01000-40816 | [2] | BOLT |
| 53 | 01602-10825 | [2] | WASHER |
