VOE 6630562 VOE6630562 Tilt Cylinder Seal Repair Kit For SUNCARSUNCARVOLVO L50
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

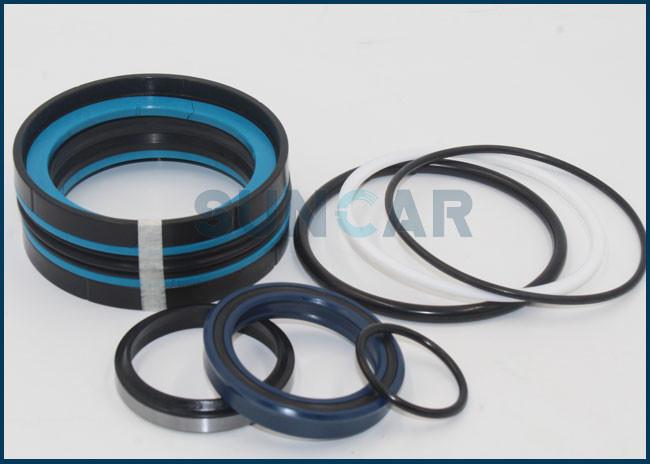

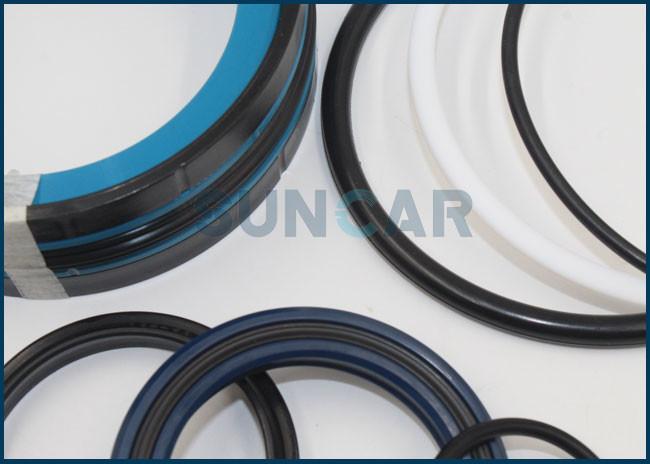

VOE 6630562 VOE6630562 Tilt Cylinder Seal Repair Kit for SUNCARSUNCARSUNCARSUNCARVOLVO L50
Description:
SUNCARSUNCARSUNCARSUNCARVOLVO Cylinder Seal Repair Kit
| Product name | VOE 6630562 VOE6630562 Tilt Cylinder Seal Repair Kit for SUNCARSUNCARSUNCARSUNCARVOLVO L50 |
| Brand name | SUNCAR |
| OEM number | VOE 6630562 VOE6630562 |
| Fits model | Excavator L50 SUNCARSUNCARSUNCARSUNCARVOLVO |
| MOQ | Accept trial order |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, friction resistance |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Excavators, SUNCARSUNCARSUNCARSUNCARVOLVO;Hydraulic cylinder;Repair store;Resell store |
| Stock | In rich stock |
| Make up | Oil seal;Dust seal;O-ring,Back-up ring;Piston ring;Wear ring |
| Style |
SUNCARSUNCARSUNCARSUNCARVOLVO seal kit |
Relative SUNCARSUNCARSUNCARSUNCARVOLVO Seal Kit:
| VOE6630513 | VOE11709226 |
| VOE6630562 | VOE11712156 |
| VOE6630858 | VOE11715864 |
| VOE11707450 | VOE11998810 |
| VOE11707903 | VOE14506606 |
| VOE11707904 | VOE14673442 |
| VOE11708734 | VOE17238353 |
| VOE11709226 | VOE17238406 |
| VOE11712156 | VOE17253413 |
| VOE11715864 | VOE17253746 |
| VOE11998810 | VOE17265005 |
| VOE11709832 | VOE11990050 |
| VOE11709872 | VOE11990158 |
| VOE11714561 | VOE11990347 |
| VOE11715865 | VOE11990348 |
| VOE11990026 | VOE11990349 |
| VOE11990028 | VOE11990395 |
| VOE11990029 | VOE11990396 |
| VOE11990439 | VOE11990398 |
| VOE11998809 | VOE11990405 |

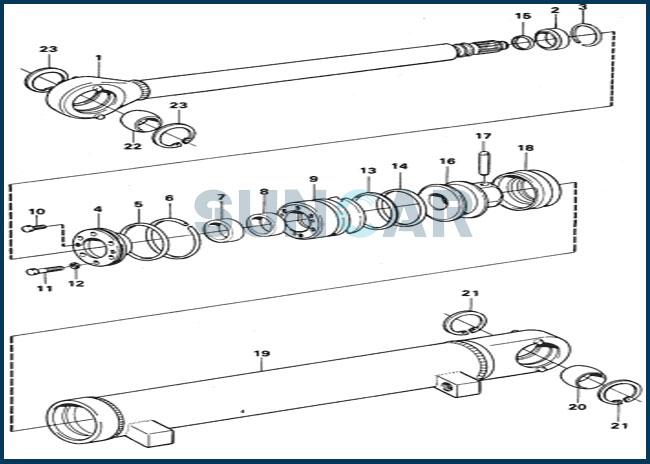

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 4 | VOE4782557 | [1] | Lock washer |
| 5 | VOE925258 | [1] | O-ring |
| 6 | VOE4782472 | [1] | Locking wire |
| 7 | VOE4784032 | [1] | Spacer ring |
| 8 | VOE4784045 | [1] | Piston rod seal |
| VOE4782424 | [1] | Hydraulic cylinder | |
| 9 | VOE4782558 | [1] | Piston rod guide |
| 10 | VOE940199 | [2] | Hexagon screw |
| 11 | VOE927693 | [6] | Lock screw |
| 12 | VOE13941907 | [6] | Washer |
| 13 | VOE4786834 | [1] | Back-up ring |
| 14 | VOE925079 | [1] | O-ring |
| 15 | VOE13960175 | [1] | O-ring |
| 16 | VOE4782099 | [1] | Piston |
| 17 | VOE4782719 | [1] | Spring pin |
| 18 | VOE4833025 | [1] | Seal |
| 1 | VOE4784345 | [1] | Piston rod |
| 19 | VOE4782423 | [1] | Cylinder tube |
| 20 | VOE184062 | [1] | Spherical plain bearing |
| 21 | VOE914538 | [2] | Retaining ring |
| 22 | VOE183787 | [1] | Spherical plain bearing |
| 23 | VOE914535 | [2] | Retaining ring |
| VOE6630562 | [1] | Gasket kit | |
| 2 | VOE11005053 | [1] | Scraper ring |
| 3 | VOE13949057 | [1] | Snap ring |
