707-99-89220 7079989220 Arm Cylinder Seal Repair Kit For PC1100-6
707-99-89220 7079989220 Arm Cylinder Seal Repair Kit for PC1100-6
Description:
707-99-89220 Arm cylinder seal kit
| Product name | 707-99-89220 7079989220 Arm Cylinder Seal Repair Kit for PC1100-6 |
| Part number | 707-99-89220 7079989220 |
| Compatible models | Excavator PC1100 PC1100SE PC1100SP PC1250 PC1250SE PC1250SP Komatsu |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
NBR |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Excavator KOMATSU |
| Stock | In rich stock |
| Style |
Hydraulic cylinder seal kit,Excavator arm cylinder seal kit |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

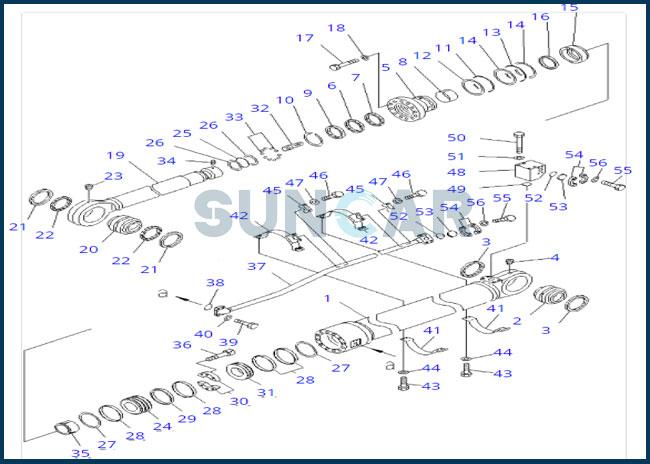

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| G-1. | 21N-63-X2322 | [1] | CYLINDER GROUP |
| 21N-63-02322 | [1] | CYLINDER ASS'Y | |
| 1. | 21N-63-62341 | [1] | CYLINDER |
| 2. | 707-76-16030 | [1] | BUSHING |
| 3. | 707-77-16020 | [2] | SEAL,DUST (KIT) |
| 4. | 07043-00108 | [1] | PLUG |
| 5. | 707-28-25710 | [1] | HEAD,CYLINDER |
| 7. | 707-51-17630 | [1] | RING,BUFFER (KIT) |
| 8. | 707-52-91451 | [1] | BUSHING |
| 9. | 707-56-17510 | [1] | SEAL,DUST (KIT) |
| 10. | 07179-15190 | [1] | RING,SNAP |
| 11. | 07000-15250 | [1] | O-RING (KIT) |
| 12. | 707-35-92600 | [1] | RING,BACK-UP (KIT) |
| 14. | 07001-05250 | [2] | RING,BACK-UP (KIT) |
| 15. | 707-71-31830 | [1] | COLLAR |
| 16. | 707-71-11850 | [1] | RING |
| 17. | 01011-83330 | [12] | BOLT |
| 18. | 01643-33380 | [12] | WASHER |
| 19. | 21N-63-62321 | [1] | ROD,PISTON |
| 20. | 707-46-16030 | [1] | BUSHING |
| 21. | 707-46-16040 | [2] | BUSHING |
| 22. | 707-77-16010 | [2] | SEAL,DUST (KIT) |
| 24. | 707-36-25110 | [1] | PISTON |
| 25. | 07000-15145 | [1] | O-RING (KIT) |
| 26. | 707-35-91550 | [2] | RING,BACK-UP (KIT) |
| 27. | 707-44-25910 | [2] | RING |
| 28. | 707-39-25820 | [4] | RING,WEAR (KIT) |
| 29. | 707-44-25180 | [1] | RING,PISTON (KIT) |
| 30. | 707-40-28020 | [2] | SPACER |
| 32. | 707-71-50400 | [1] | PLUNGER |
| 33. | 04260-01270 | [10] | BALL |
| 34. | 707-71-91390 | [1] | PIN |
| 35. | 707-71-51852 | [1] | PLUNGER |
| 36. | 01253-61630 | [6] | BOLT |
| 37 | 21N-63-62371 | [1] | TUBE |
| 38 | 07000-13048 | [1] | O-RING (KIT) |
| 39 | 01010-81450 | [4] | BOLT |
| 40 | 01643-31445 | [4] | WASHER |
| 41 | 21N-62-18430 | [2] | BAND |
| 42 | 21N-63-62390 | [2] | BRACKET |
| 43 | 01010-81240 | [8] | BOLT |
| 44 | 01643-31232 | [8] | WASHER |
| 45 | 176-61-41330 | [2] | CLAMP |
| 46 | 01010-81250 | [4] | BOLT |
| 48 | 21N-62-18450 | [1] | BLOCK |
| 49 | 07000-12060 | [1] | O-RING (KIT) |
| 50 | 01011-81890 | [4] | BOLT |
| 51 | 01643-31845 | [4] | WASHER |
| 53 | 07378-11410 | [3] | HEAD |
| 54 | 07371-51470 | [6] | FLANGE |
| 55 | 01010-81455 | [12] | BOLT |
| K. | 707-99-89220 | [1] | SERVICE KIT |
