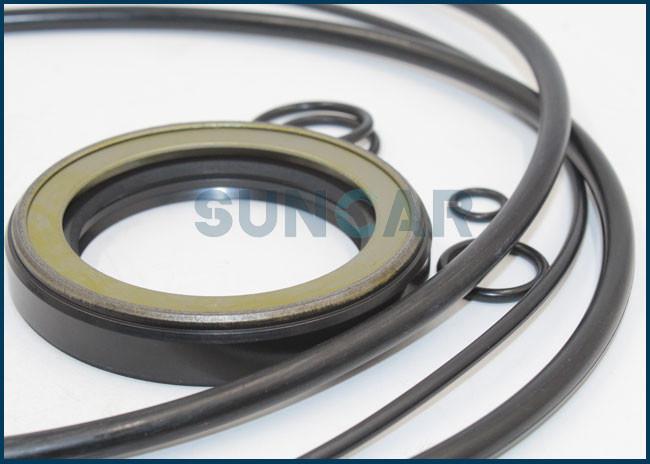

9281842 Travel Motor Seal Kit fits HITACHI ZX290LC-5G ZX360H-3G
9281842 Travel Motor Seal Kit fits HITACHI ZX290LC-5G ZX360H-3G
Description: This is the seal kit for travel motor.The travel motor provides the power that the final drive transforms into torque.
Then torque is transferred to the sprocket, which turns the wheel or track.The power comes from the hydraulic system.When you find
the travel lose power, there might be because the oil leakage caused to the travel motor.In other words, the travel motor seal kit
prevents oil from leaking and maintains power.
| Product name | 9281842 Travel Motor Seal Kit fits HITACHI ZX290LC-5G ZX360H-3G |
| Part number | 9281842 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
NBR |
| Features | Oil-resistant, heat resistant,durable |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Quality | High strength, high temperature resistance, high pressure resistance, good performance |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Hardness | 70 degree -95 degree |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Building material shops, Machinery repair shops, Retail, Construction works |
| Stock | In rich stock |
| Style |
Hydraulic seal;Buffer seal |
| Seal shape | Type B |
| Relative suuply brand |
SUNCARSUNCARSUNCARSUNCARVOLVO,DOOSAN,DAEWOO,KOMATSU,HYUNDAI,XCMG,C-A-T;KATO,JOHN DEERE,SANY,SUMITOMO |
Compatible Models:
| ZX290LC-5G | ZX360H-3G | ZX350H-3G/5G |
| HITACHI | ZX330-3G/5G | ZX330-3 |

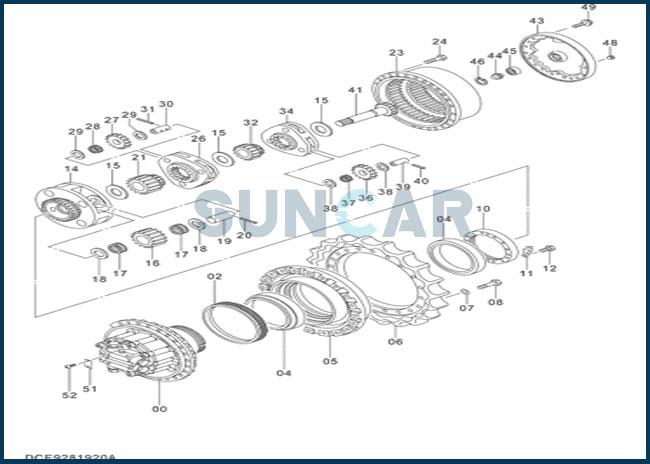

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 9281920 | [1] | TRAVEL DEVICE | |
| 9281921 | [1] | TRAVEL DEVICE | |
| 0 | 9281841 | [1] | MOTOR;OIL |
| 0 | 9281842 | [1] | MOTOR;OIL |
| 2 | 4664392 | [1] | SEAL;GROUP |
| 4 | 4629674 | [2] | BRG.;ROL. |
| 5 | 1033164 | [1] | DRUM |
| 6 | 1033163 | [1] | SPROCKET |
| 7 | A590922 | [22] | WASHER;SPRING |
| 8 | J932265 | [22] | BOLT |
| 10 | 3094717 | [1] | NUT |
| 11 | 4470326 | [1] | PLATE;LOCK |
| 12 | J901225 | [2] | BOLT |
| 14 | 1032599 | [1] | CARRIER |
| 15 | 4621530 | [3] | SPACER |
| 16 | 3103555 | [4] | GEAR;PLANETARY |
| 17 | 4628768 | [8] | BRG.;NEEDLE |
| 18 | 4269470 | [8] | PLATE;THRUST |
| 19 | 4269452 | [4] | PIN |
| 20 | 4207947 | [4] | PIN;SPRING |
| 21 | 3103554 | [1] | GEAR;SUN |
| 23 | 1032600 | [1] | GEAR;RING |
| 24 | J931640 | [34] | BOLT |
| 26 | 1032598 | [1] | CARRIER |
| 27 | 3103553 | [3] | GEAR;PLANETARY |
| 28 | 4445531 | [3] | BRG.;NEEDLE |
| 29 | 4284521 | [6] | PLATE;THRUST |
| 30 | 4269451 | [3] | PIN |
| 31 | 4197763 | [3] | PIN;SPRING |
| 32 | 3103552 | [1] | GEAR;SUN |
| 34 | 1032597 | [1] | CARRIER |
| 36 | 3103551 | [3] | GEAR;PLANETARY |
| 37 | YB00001367 | [3] | BRG.;NEEDLE |
| 38 | 4642993 | [6] | PLATE;THRUST |
| 39 | 4269472 | [3] | PIN |
| 40 | 4192020 | [3] | PIN;SPRING |
| 41 | 2051884 | [1] | SHAFT;PROP. |
| 43 | 1032596 | [1] | COVER |
| 44 | 4277474 | [1] | PIN;STOPPER |
| 45 | 4278168 | [1] | BRG.;BALL |
| 46 | 930451 | [1] | RING;RETAINING |
| 48 | 4245797 | [3] | PLUG |
| 49 | 4699148 | [20] | BOLT;SEMS |
| 51 | +++++++ | [1] | NAME-PLATE |
| 52 | M492564 | [2] | SCREW;DRIVE |
