LZ008960 Arm Cylinder Service Kit for CNH Excavators CX225SR
LZ008960 Arm Cylinder Service Kit for CNH Excavators CX225SR
Description: LZ008960 seal kit for arm cylinder compatible for excavator CNH.
| Product name | LZ008960 Arm Cylinder Service Kit for CNH Excavators CX225SR |
| Brand | SUNCAR |
| OEM NO. | LZ008960 |
| Compatible models | CNH CX225SR |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| Equipment type | Loaders, track loaders, slide pins, uni loaders, wheel loaders and more. |
| MOQ | Accept trial order |
| Type | Arm cylinder seal kit |
| AppliC-A-Tion | CNH Cylinder;Construction machinery spare parts resell store |
|
Standard or nonstandard |
Standard |
| Noted | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |
Our Seal Kit Products:
1. Boom cylinder seal kit
2. Arm cylinder seal kit
3. Bucket cylinder seal kit
4. Blade cylinder seal kit
5. Hydraulic seal kit/Main pump seal kit
6. Regulator seal kit
7. Swing motor seal kit
8. Travel motor seal kit
9. Center joint seal kit
10. Control valve seal kit
11. Track adjuster seal kit
12. Piolve valve seal kit/PPC valve seal kit
13. Foot valve seal kit/PPC travel
14. Pilot pump seal kit
15. Hammer seal kit/Hydraulic breaker seal kit
16. Crankshaft front oil seal
17. Crankshaft rear oil seal
18. Blade lift cylinder kit
19. Blade tilt cylinder kit
20. Blade steering cylinder kit

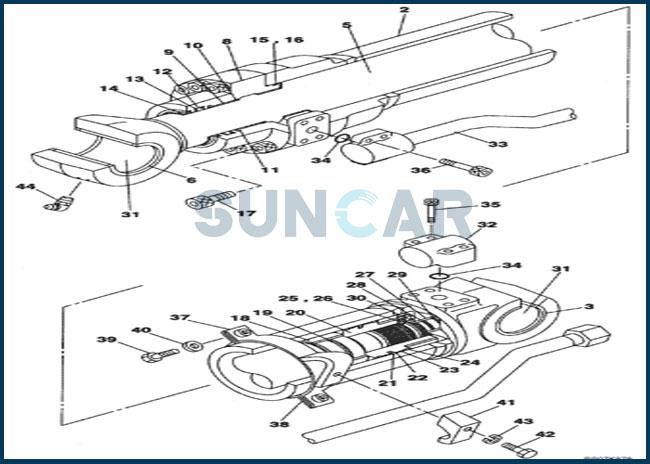

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| . . | KRV26130 | [1] | HYDRAULIC CYLINDER |
| 1 | LZ009000 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | 155409A1 | [1] | BUSHING |
| 4 | LZ009010 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 155409A1 | [1] | BUSHING |
| 8 | LU002570 | [1] | CYLINDER END CAP |
| 9 | 155418A1 | [1] | BUSHING |
| 10 | 155706A1 | [1] | RING, SNAP |
| 11 | LE015290 | [1] | SEALING RING |
| 12 | LE015300 | [1] | O-RING |
| 13 | LE00695 | [1] | BACK-UP RING |
| 14 | 158377A1 | [1] | WIPER SEAL |
| 15 | 154777A1 | [1] | O-RING |
| 16 | 159994A1 | [1] | BACK-UP RING |
| 17 | 166094A1 | [12] | BOLT |
| 18 | LE00696 | [1] | RING |
| 19 | LE00697 | [1] | SEAL |
| 20 | LJ015220 | [1] | PISTON |
| 21 | 159961A1 | [1] | SEALING RING |
| 22 | 159995A1 | [2] | BACK-UP RING |
| 23 | LE015310 | [2] | WIPER SEAL |
| 24 | 160016A1 | [2] | RING |
| 25 | 156228A1 | [1] | SET SCREW |
| 26 | 155981A1 | [1] | BALL |
| 27 | 164190A1 | [1] | RING |
| 28 | LE00690 | [1] | SEAL |
| 29 | 160556A1 | [2] | STOP |
| 30 | 160557A1 | [1] | RING, SNAP |
| 31 | 160483A1 | [4] | BACK-UP RING |
| 32 | 155530A1 | [1] | TUBE |
| 33 | LR016380 | [1] | HYD TUBE |
| 34 | 154543A1 | [2] | O-RING |
| 35 | 862-12055 | [4] | HEX SOC SCREW |
| 36 | 863-12035 | [4] | HEX SOC SCREW |
| 37 | LD001610 | [1] | CLAMP BRACKET |
| 38 | 160339A1 | [1] | MOUNTING CLIP |
| 39 | 158131A1 | [2] | BOLT,High Strength |
| 40 | 156227A1 | [2] | WASHER |
| 41 | 155717A1 | [1] | COLLAR |
| 42 | 628-12055 | [1] | BOLT,Hex |
| 43 | 892-10012 | [1] | LOCK WASHER |
| 44 | 153912A1 | [1] | LUBE NIPPLE |
| 45 | LZ008960 | [1] | SEAL KIT |
