LZ00499 Boom Cylinder Seal Repair Kit for Excavators CNH CX290
LZ00499 Boom Cylinder Seal Repair Kit for Excavators CNH CX290
Description: LZ00499 seal kit for boom cylinder compatible for excavator CNH.
| Product name | LZ00499 Boom Cylinder Seal Repair Kit for Excavators CNH CX290 |
| Brand | SUNCAR |
| OEM NO. | LZ00499 |
| Compatible models | CNH CX290 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | Crawler excavator |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| Equipment type | Loaders, track loaders, slide pins, uni loaders, wheel loaders and more. |
| MOQ | Accept trial order |
| Type | Boom cylinder seal kit |
| AppliC-A-Tion | CNH Cylinder;Construction machinery spare parts resell store |
|
Standard or nonstandard |
Standard |
| Noted | Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity. |
Product Advantage:
• Extreme wear resistance.
• Easier installation.
• Insensitive to pressure peaks.
• High extrusion resistance.
• Excellent durability and flexibility in using.
• Specially designed cords enhance durability and length stability.
• Excellent in resistance against heat,oil and wear.
• Low friction, free of stick slip.
• High abrasion resistance.
Our Relative Hot Sell Seal Kit:
| Wheel loader seal kit | JCB Seal Kit |
| Excavator seal kit | Bulldozer seal kit |
| Boom cylinder seal kit | Hammer seal kit/Hydraulic breaker seal kit |
| Arm cylinder seal kit | Crankshaft front oil seal |
| Bucket cylinder seal kit | Crankshaft rear oil seal |
| Blade cylinder seal kit | Blade lift cylinder kit |
| Main pump seal kit | Blade tilt cylinder kit |
| Regulator seal kit | Blade steering cylinder kit |
| Swing motor seal kit | Track adjuster seal kit |
| Travel motor seal kit | Piolve valve seal kit/PPC valve seal kit |
| Center joint seal kit | Foot valve seal kit/PPC travel |
| Control valve seal kit | Pilot pump seal kit |

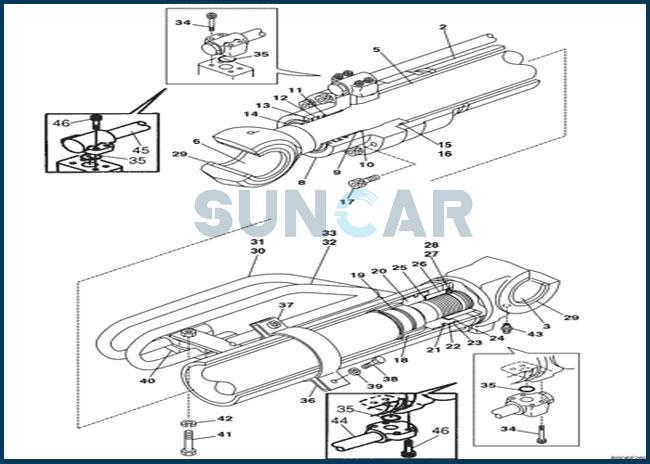

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| . . | KBV1689 | [1] | HYDRAULIC CYLINDER |
| . . | LR00845 | [1] | HYD CYL SLEEVE |
| 2 | NSS | [1] | NOT SOLD SEPARAT |
| 3 | LB00782 | [1] | BUSHING |
| . . | LB00783 | [1] | PISTON ROD |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | LB00782 | [1] | BUSHING |
| 8 | LU00108 | [1] | CYLINDER END CAP |
| 9 | 155418A1 | [1] | BUSHING |
| 10 | 155706A1 | [1] | RING, SNAP |
| 11 | LE00765 | [1] | SCRAPER RING |
| 12 | LE00198 | [1] | O-RING |
| 13 | LE00695 | [1] | BACK-UP RING |
| 14 | 158377A1 | [1] | WIPER SEAL |
| 15 | 154777A1 | [1] | O-RING |
| 16 | 159994A1 | [1] | BACK-UP RING |
| 17 | 166094A1 | [12] | BOLT |
| 18 | LE00696 | [1] | RING |
| 19 | LE00990 | [1] | SEAL |
| 20 | LJ00952 | [1] | JACK PISTON |
| 21 | 159961A1 | [1] | SEALING RING |
| 22 | 159995A1 | [2] | BACK-UP RING |
| 23 | LE00698 | [2] | RING |
| 24 | 160016A1 | [2] | RING |
| 25 | 155722A1 | [1] | SHIM |
| 26 | LA00736 | [1] | SPECIAL NUT |
| 27 | 156223A1 | [1] | SET SCREW |
| 28 | 155977A1 | [1] | BALL |
| 29 | LE00951 | [4] | WIPER SEAL |
| 30 | LR00849 | [1] | HYD TUBE |
| 31 | 154503A1 | [1] | O-RING |
| 32 | LR00850 | [1] | PIPE |
| 33 | 154503A1 | [1] | O-RING |
| 34 | 108R010Z050N | [8] | BOLT |
| 35 | 154528A1 | [2] | O-RING |
| 36 | LD00089 | [1] | CLAMP BRACKET |
| 37 | 160339A1 | [1] | MOUNTING CLIP |
| 38 | 158131A1 | [2] | BOLT |
| 39 | 156227A1 | [2] | WASHER |
| 40 | 155701A1 | [2] | COLLAR |
| 41 | 153910A1 | [1] | BOLT |
| 42 | 892-16014 | [1] | LOCK WASHER |
| 43 | 153630A1 | [1] | LUBE NIPPLE |
| 44 | LR01186 | [1] | HYD TUBE |
| 45 | LR01187 | [1] | HYD TUBE |
| 46 | 87016471 | [8] | HEX SOC SCREW |
| . . | LZ00499 | [1] | SEAL KIT |
| 46 | 892-10012 | [1] | LOCK WASHER |
| 47 | 158131A1 | [2] | BOLT,High Strength |
| 48 | 156227A1 | [2] | WASHER |
| 49 | 153912A1 | [1] | LUBE NIPPLE |
| . . | LZ00646 | [1] | SEAL KIT |
